RT104L-KDFC (1975)

Toyota Corona

Production Sep 1975 - Jun 1976
Engine 18RC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7308-7905)

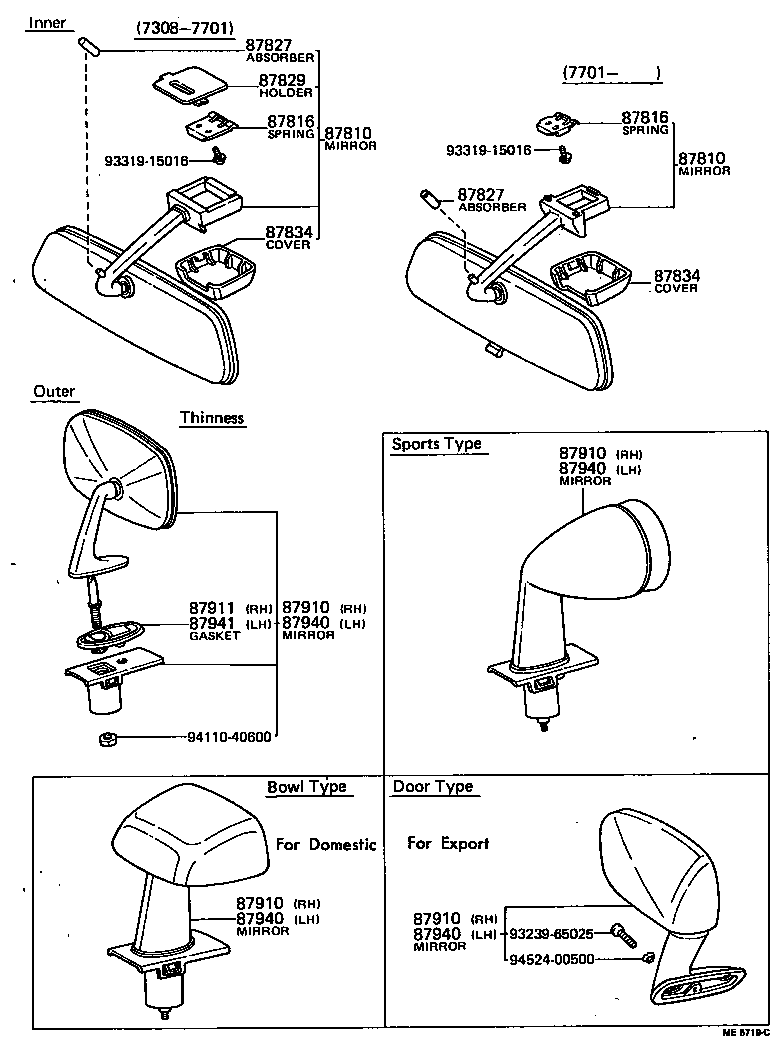

Click highlighted areas on diagram

diagram 87810 87810 87816 87816 87827 87827 87829 87834 87834 87910 87910 87910 87910 87911 87940 87940 87940 87940 87941 9323965025 9331915016 9331915016 9411040600 9452400500
Part # Description Qty Price
87810 - MIRROR ASSY, INNER REAR VIEW
87810-20140

RT102,104,117,118..EUR

 1
87810 - MIRROR ASSY, INNER REAR VIEW
87810-20140

RT102,104,117,118..EUR

 1
87816 - SPRING, INNER REAR VIEW MIRROR
74372-30020

RT10#,11#

 1
87816 - SPRING, INNER REAR VIEW MIRROR
74372-30020

RT10#,11#

 1
87829 - HOLDER, INNER REAR VIEW MIRROR STAY
87829-12030

RT102,104,117,118..EUR

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-29155

RT10#,112,114,116,117,118..EUR,GEN

FENDER THINNESS TYPE

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-29155

RT10#,112,114,116,117,118..EUR,GEN

FENDER THINNESS TYPE

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-29155

RT10#,112,114,116,117,118..EUR,GEN

FENDER THINNESS TYPE

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-29155

RT10#,112,114,116,117,118..EUR,GEN

FENDER THINNESS TYPE

 1
87911 - GASKET, OUTER REAR VIEW MIRROR, RH
87911-20010

RT10#,112,114,116,117,118..EUR,GEN

THINNESS TYPE

 1
87911-20010

RT104;RT102..EUR,GEN

THINNESS TYPE

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-29135

RT10#,112,114,116,117,118..EUR,GEN

FENDER THINNESS TYPE

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-29135

RT10#,112,114,116,117,118..EUR,GEN

FENDER THINNESS TYPE

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-29135

RT10#,112,114,116,117,118..EUR,GEN

FENDER THINNESS TYPE

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-29135

RT10#,112,114,116,117,118..EUR,GEN

FENDER THINNESS TYPE

 1
87941 - GASKET, OUTER REAR VIEW MIRROR, LH
87941-20010

RT10#,112,114,116,117,118..EUR,GEN

THINNESS TYPE

 1
Common parts
93239-65025
93319-15016
94110-40600
94524-00500
