RT104L-KDFC (1975)

Toyota Corona

Production Sep 1975 - Jun 1976
Engine 18RC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7308-7905)

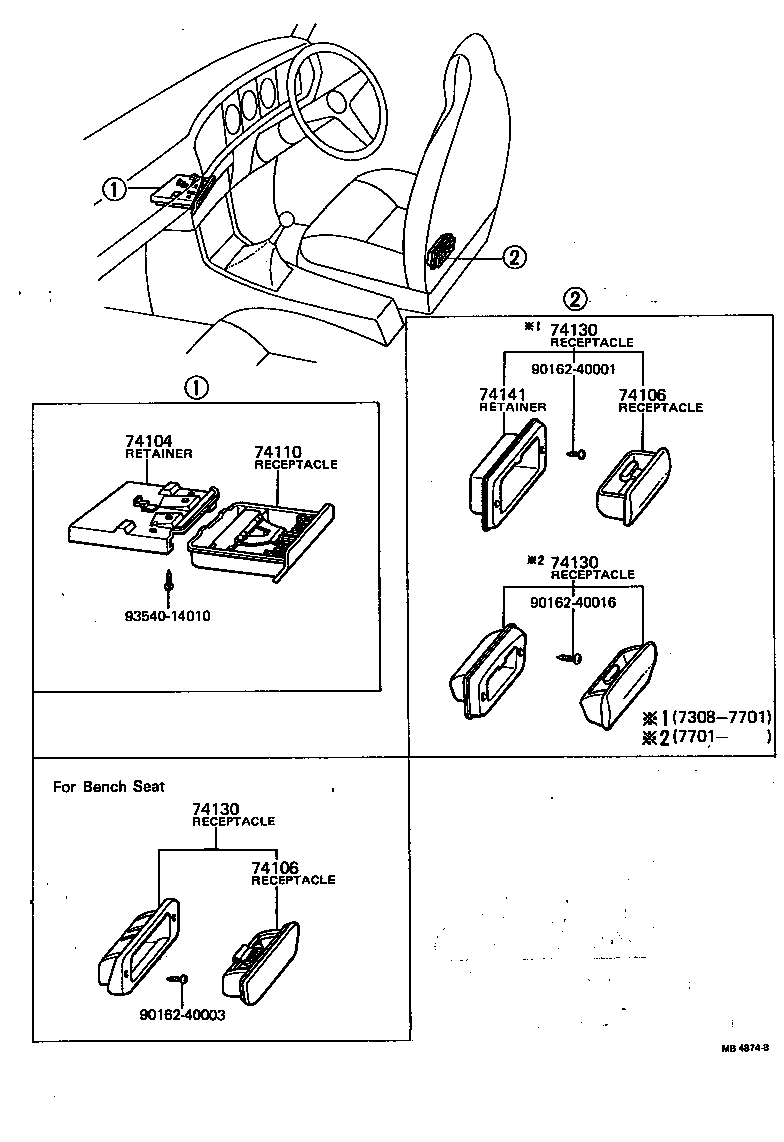

Click highlighted areas on diagram

diagram 74104 74106 74106 74110 74130 74130 74130 74141 9016240001 9016240003 9016240016 9354014010
Part # Description Qty Price
74104 - RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1
74104-20060

RT10#,11#..LHD

 1
74106 - RECEPTACLE SUB-ASSY, ASH, NO.2
74106-1201011

RT10#,11#..LHD

FOR SP. BLACK,BLACK,TRIM2#

 1
74106 - RECEPTACLE SUB-ASSY, ASH, NO.2
74106-1201011

RT10#,11#..LHD

FOR SP. BLACK,BLACK,TRIM2#

 1
74110 - RECEPTACLE ASSY, INSTRUMENT PANEL ASH
74108-2004006

RT10#,11#..LHD

OLIVE-BROWN,BROWN,TRIM4#

 1
74108-2004001

RT10#,11#..LHD

BLACK,BLACK,TRIM2#,8#

 1
74130 - RECEPTACLE ASSY, REAR ASH
74130-1201011

RT10#,11#..LHD

FOR SP.BLACK,BLACK,TRIM2#

 1
74130 - RECEPTACLE ASSY, REAR ASH
74130-1201011

RT10#,11#..LHD

FOR SP.BLACK,BLACK,TRIM2#

 1
74130 - RECEPTACLE ASSY, REAR ASH
74130-1201011

RT10#,11#..LHD

FOR SP.BLACK,BLACK,TRIM2#

 1
74141 - RETAINER, REAR ASH RECEPTACLE, INNER
74109-12010

RT10#,11#..LHD

FOR SP.

 1
Common parts
90162-40001
90162-40003
90162-40016
93540-14010
