RT104L-KDFC (1975)
Toyota Corona
(7308-7905)

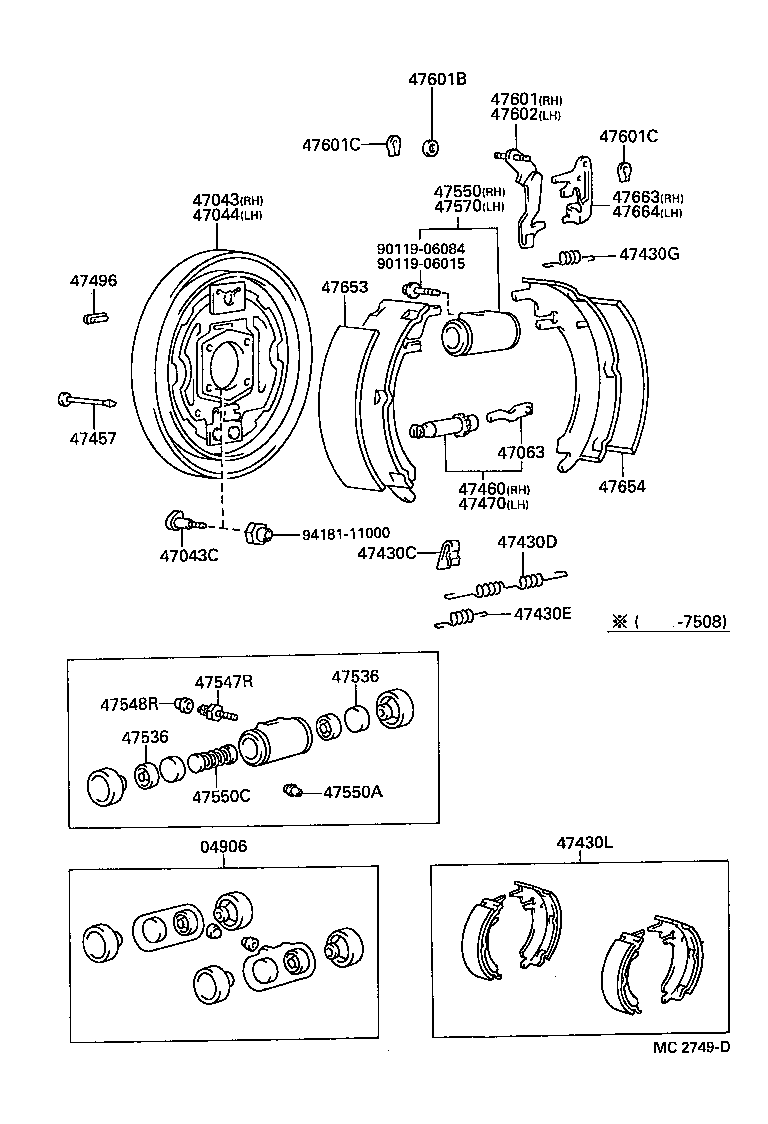

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-12040 |
RT100,104,114,116,118 TAXI SPEC. & FRONT DISC,EXCEPT AUSTRALIA,SOUTH AFRICA,PHILIPPINES |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-20050 |
RT10#,11# |
1 | ||
| 47043C - BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 42184-22011 |
RT10#,11# *10-1.25PX37-15 |
8 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-20050 |
RT10#,11# |
1 | ||
| 47063 - PIECE SUB-ASSY, PARKING BRAKE SHOE | ||||
| 47477-14010 |
RT10#,11# |
2 | ||
| 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) | ||||
| 47446-10010 |
RT10#,11# |
4 | ||
| 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-23375 |
RT10#,11# |
2 | ||
| 47430E - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-23346 |
RT10#,11# |
2 | ||
| 47430G - SPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER) | ||||
| 90506-12310 |
RT10#,11# |
2 | ||
| 47430L - SHOE KIT, REAR BRAKE | ||||
| 04495-20050 |
RT10#,112,114,116,117,118..ARL,EUR,GEN,SA FRONT DISC |
1 | ||
| 47457 - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-11010 |
RT10#,11# |
4 | ||
| 47460 - ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE) | ||||
| 47061-14021 |
RT10#,11# |
1 | ||
| 47470 - ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE) | ||||
| 47062-14021 |
RT10#,11# |
1 | ||
| 47496 - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-20011 |
RT10#,11# |
2 | ||
| 47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE) | ||||
| 47051-22040 |
RT100,104,114,116,118..EUR,GEN FRONT DISC & TAXI SPEC. |
4 | ||
| 47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE) | ||||
| 47051-22040 |
RT100,104,114,116,118..EUR,GEN FRONT DISC & TAXI SPEC. |
4 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-20010 |
RT10#,11# |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-30010 |
RT10#,11# |
2 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-29115 |
RT100,104,114,116,118..EUR,GEN TAXI SPEC. & FRONT DISC |
1 | ||
| 47550A - SEAT, UNION(FOR REAR WHEEL BRAKE CYLINDER) | ||||
| 90410-03015 |
RT10#,11# |
2 | ||
| 47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER) | ||||
| 47509-22010 |
RT100,104,114,116,118..EUR,GEN TAXI SPEC. & FRONT DISC |
2 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47550-29115 |
RT100,104,114,116,118..EUR,GEN TAXI SPEC. & FRONT DISC |
1 | ||
| 47601 - LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE) | ||||
| 47601-14010 |
RT10#,11# |
1 | ||
| 47601B - SHIM, REAR PARKING BRAKE SHOE LEVER | ||||
| 90564-08151 |
RT10#,11# T=0.6,T=0.570-0.630 |
1 | ||
| 90564-08150 |
RT10#,11# T=0.3,T=0.285-0.315 |
1 | ||
| 90564-08172 |
RT10#,11# T=0.2,T=0.19-0.21 |
2 | ||
| 90564-08152 |
RT10#,11# T=0.9,T=0.855-0.945 |
1 | ||
| 47601C - WASHER, C(FOR REAR BRAKE) | ||||
| 90213-06013 |
RT10#,11# T=1.2 |
4 | ||
| 47601C - WASHER, C(FOR REAR BRAKE) | ||||
| 90213-06013 |
RT10#,11# T=1.2 |
4 | ||
| 47602 - LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE) | ||||
| 47602-14010 |
RT10#,11# |
1 | ||
| 47653 - LINING, REAR BRAKE SHOE(FOR FRONT OR UPPER) | ||||
| 47651-22020 |
RT10#,112,114,116,117,118..ARL,EUR,GEN,SA FRONT DISC |
2 | ||
| 47654 - LINING, REAR BRAKE SHOE(FOR REAR OR LOWER) | ||||
| 47651-22020 |
RT10#,112,114,116,117,118..ARL,EUR,GEN,SA FRONT DISC |
2 | ||
| 47663 - LEVER, AUTOMATIC ADJUST, RH(FOR REAR BRAKE) | ||||
| 47643-14021 |
RT10#,11# |
1 | ||
| 47664 - LEVER, AUTOMATIC ADJUST, LH(FOR REAR BRAKE) | ||||
| 47644-14021 |
RT10#,11# |
1 | ||
| Common parts | ||||
| 90119-06015 | ||||
| 90119-06084 | ||||
| 94181-11000 | ||||
