RT104L-KDFC (1975)

Toyota Corona

Production Sep 1975 - Jun 1976
Engine 18RC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7308-7905)RT100,116..LHD ; (7308-7905)RT100,116..RHD..4F ; (7308-7905)RT102,104,11

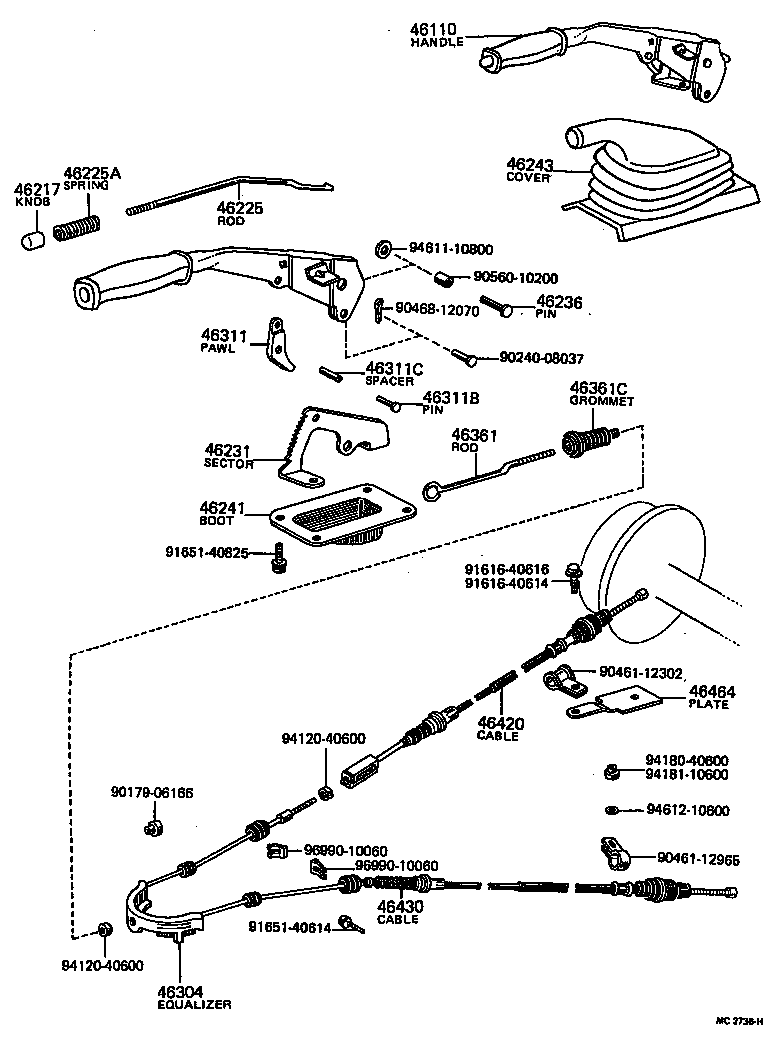

Click highlighted areas on diagram

diagram 46110 46217 46225 46225A 46231 46236 46241 46243 46304 46311 46311B 46311C 46361 46361C 46420 46430 46464 9017906166 9024008037 9046112302 9046112965 9046812070 9056010200 9161640614 9161640616 9165140614 9165140825 9412040600 9412040600 9418040600 9418110600 9461110800 9461210600 9699010060 9699010060
Part # Description Qty Price
46217 - KNOB, PARKING BRAKE RELEASE ROD
46217-10013

RT10#,11#..LHD

BLACK,13.8-14.4

 1
46225 - ROD, PARKING BRAKE PAWL RELEASE
46225-20020

RT10#,11#..LHD

 1
46225A - SPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)
90501-10745

RT10#,11#..LHD

 1
46231 - SECTOR, PARKING BRAKE LEVER
46231-20020

RT10#,11#..LHD

 1
46236 - PIN, LEVER PIVOT
46236-12010

RT10#,11#..LHD

 1
46241 - BOOT, PARKING BRAKE LEVER
46241-20020

RT10#,11#..LHD

 1
46304 - EQUALIZER SUB-ASSY, PARKING BRAKE
46341-20020

RT10#,11#

 1
46311 - PAWL, PARKING BRAKE
46311-22020

RT10#,11#..LHD

CENTER TYPE

 1
46311B - PIN, PARKING BRAKE PAWL PIVOT
90243-06017

RT10#,11#..LHD

CENTER TYPE

 1
46311C - SPACER(FOR PARKING BRAKE PAWL PIVOT)
90560-06195

RT10#,11#..LHD

 1
46361 - ROD, PARKING BRAKE PULL
46361-20030

RT10#,11#..LHD

 1
46361C - GROMMET(FOR PARKING BRAKE PULL ROD)
90480-01429

RT10#,11#..LHD

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-20060

RT10#,110,112,114

 1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-20060

RT10#,110,112,114

 1
Common parts
90179-06166
90240-08037
90461-12302
90461-12965
90468-12070
90560-10200
91616-40614
91616-40616
91651-40614
91651-40825
94120-40600
94180-40600
94181-10600
94611-10800
94612-10600
96990-10060
