RT104L-KDF (1975)

Toyota Corona

Production Sep 1975 - Aug 1978
Engine 18R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7308-7701)LHD

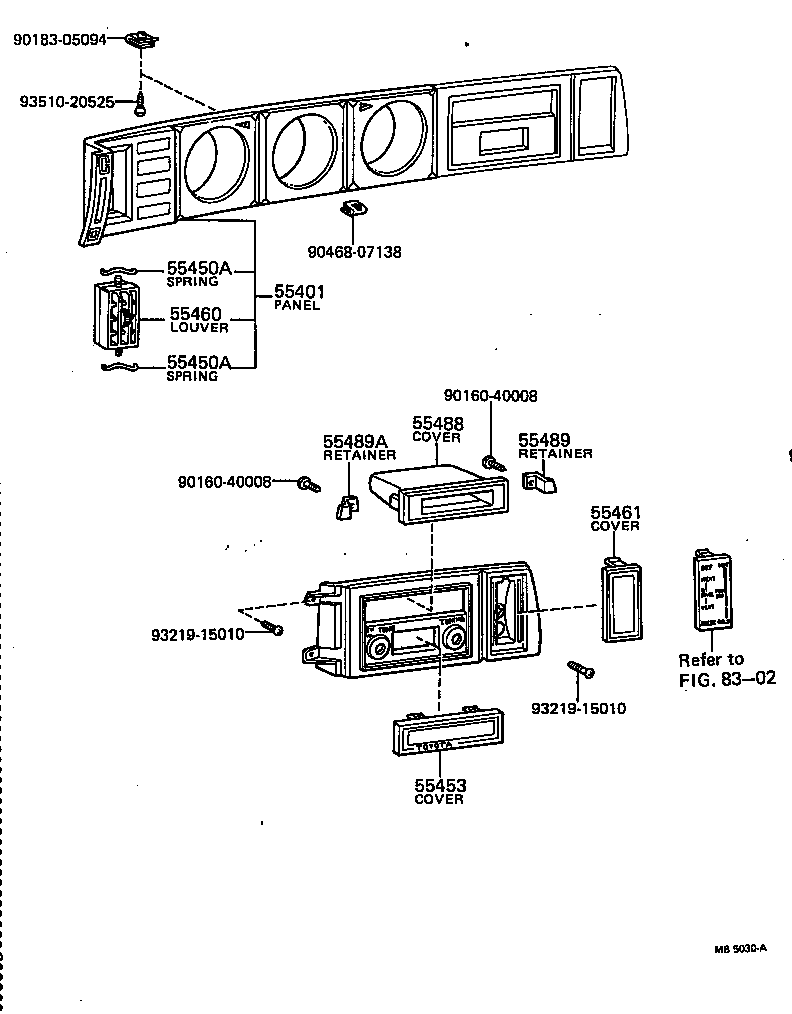

Click highlighted areas on diagram

diagram 55401 55450A 55450A 55453 55460 55461 55488 55489 55489A 8302 9016040008 9016040008 9018305094 9046807138 9321915010 9321915010 9351020525
Part # Description Qty Price
55401 - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH
55040-20091

RT100,104,11#..LHD

 1
55040-20090

RT10#,110,112,116,117,118..LHD

 1
55450A - SPRING, SIDE VENTILATOR LOUVER
55426-20020

RT10#,11#

 4
55450A - SPRING, SIDE VENTILATOR LOUVER
55426-20020

RT10#,11#

 4
55453 - COVER, RADIO TUNER OPENING
55463-20040

RT10#,11#

 1
55463-20041

RT114..GEN;RT10#,116,118;RT114..3FC..SA

 1
55460 - LOUVER ASSY, SIDE VENTILATOR, LH
55065-20010

RT10#,110,112,116,117,118..LHD

 1
55065-20040

RT100,104,11#..LHD

 1
55461 - COVER, HEATER CONTROL HOLE
55949-20010

RT10#,11#

 1
55488 - COVER, STEREO OPENING
55462-20070

RT10#,11#

 1
55489 - RETAINER, STEREO OPENING COVER, NO.1
55475-20040

RT10#,11#

 1
55489A - RETAINER, STEREO OPENING COVER, NO.2
55394-20010

RT10#,11#

 1
Common parts
90160-40008
90183-05094
90468-07138
93219-15010
93510-20525
Linked diagrams
8302

(7308-7701)LHD

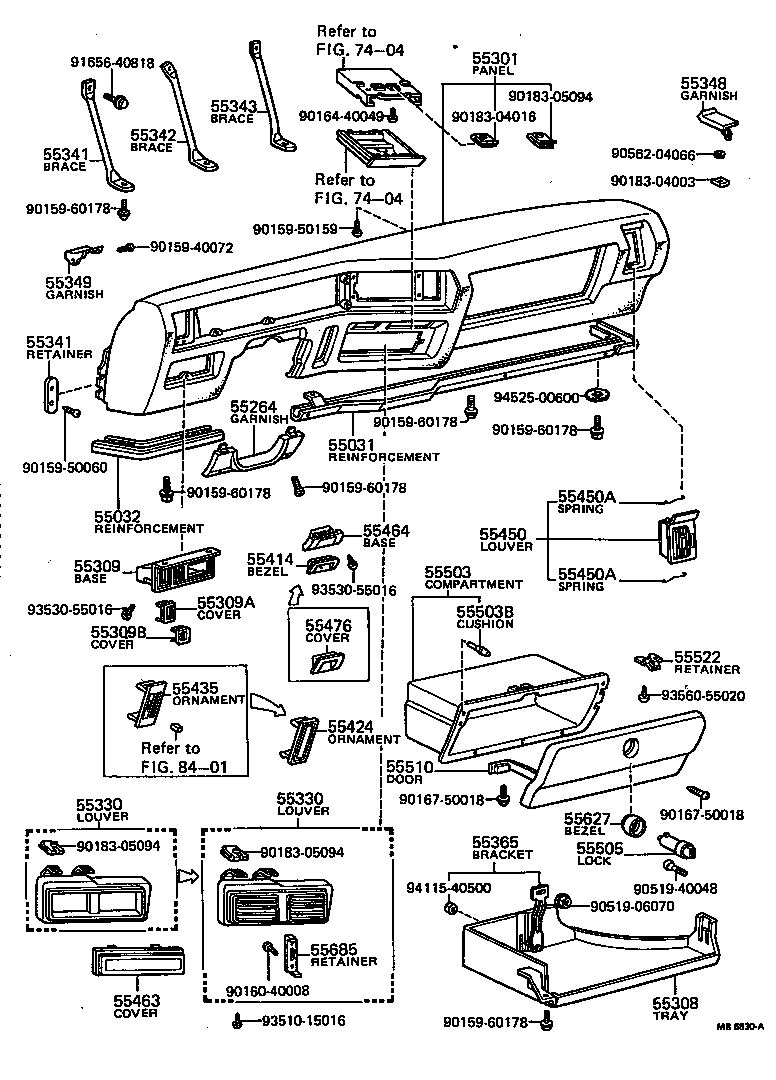

Click highlighted areas on diagram

diagram 55031 55032 55264 55301 55308 55309 55309A 55309B 55330 55330 55341 55341 55342 55343 55348 55349 55365 55414 55424 55435 55450 55450A 55450A 55463 55464 55476 55503 55503B 55505 55510 55522 55627 55685 7404 7404 8401 9015940072 9015950060 9015950159 9015960178 9015960178 9015960178 9015960178 9015960178 9015960178 9016040008 9016440049 9016750018 9016750018 9018304003 9018304016 9018305094 9018305094 9018305094 9051906070 9051940048 9056204066 9165640818 9351015016 9353055016 9353055016 9356055020 9411540500 9452500600
Part # Description Qty Price
55031 - REINFORCEMENT, INSTRUMENT PANEL, NO.1
55032-20020

RT10#,11#..LHD

 1
55032 - REINFORCEMENT, INSTRUMENT PANEL, NO.2
55339-20050

RT10#,11#..LHD

 1
55264 - GARNISH, STEERING COLUMN
55264-2002001

RT10#,11#..LHD

BLACK,BLACK,TRIM1#,2#,8#

 1
55264-2002006

RT10#,11#..LHD

OLIVE-BROWN,BROWN,TRIM4#

 1
55301 - PANEL SUB-ASSY, INSTRUMENT
55301-2015006

RT10#,11#..LHD

OLIVE-BROWN,BROWN,TRIM4#

 1
55301-2015001

RT10#,11#..LHD

BLACK,BLACK,TRIM1#,2#,8#

 1
55308 - TRAY SUB-ASSY, INSTRUMENT PANEL UNDER
55308-20080

RT10#,110,112,114..LHD..DLX

 1
55308-2008005

RT100,104,114..LHD..DLX

BEIGE,BEIGE,TRIM4#

 1
55308-2008001

RT100,104,114..LHD..DLX

BLACK,BLACK,TRIM1#,2#

 1
55309 - BASE SUB-ASSY, SWITCH
55309-20030

RT10#,11#

 1
55309A - COVER, BASE SWITCH HOLE, NO.1
55384-20010

RT10#,11#

 1
55384-2001101

RT118..EUG;RT10#,114,116;RT118..ARL,GEN

BLACK,BLACK,TRIM2#

 1
55384-2001105

RT118..EUG;RT10#,114,116;RT118..ARL,GEN

BEIGE,BEIGE,TRIM4#

 1
55309B - COVER, BASE SWITCH HOLE, NO.2
55385-20010

RT10#,11#

 1
55330 - LOUVER ASSY, CENTER VENTILATOR
55460-2004006

RT10#,110,112,116,117,118..LHD

FOR W/HEATER,OLIVE-BROWN,BROWN,TRIM4#

 1
55460-2004101

RT100,104,11#..LHD

FOR W/HEATER,BLACK,BLACK,TRIM1#,2#,8#

 1
55460-2004001

RT10#,110,112,116,117,118..LHD

FOR W/HEATER,BLACK,BLACK,TRIM1#,2#,8#

 1
55460-2004106

RT100,104,11#..LHD

FOR W/HEATER,BROWN,BROWN,TRIM4#

 1
55330 - LOUVER ASSY, CENTER VENTILATOR
55460-2004006

RT10#,110,112,116,117,118..LHD

FOR W/HEATER,OLIVE-BROWN,BROWN,TRIM4#

 1
55460-2004101

RT100,104,11#..LHD

FOR W/HEATER,BLACK,BLACK,TRIM1#,2#,8#

 1
55460-2004001

RT10#,110,112,116,117,118..LHD

FOR W/HEATER,BLACK,BLACK,TRIM1#,2#,8#

 1
55460-2004106

RT100,104,11#..LHD

FOR W/HEATER,BROWN,BROWN,TRIM4#

 1
55341 - BRACE, INSTRUMENT PANEL, NO.1
55727-20030

RT10#,11#..LHD

 1
55341 - BRACE, INSTRUMENT PANEL, NO.1
55727-20030

RT10#,11#..LHD

 1
55342 - BRACE, INSTRUMENT PANEL, NO.2
55728-20020

RT10#,11#..LHD

 1
55343 - BRACE, INSTRUMENT PANEL, NO.3
55729-20010

RT10#,11#

 1
55348 - GARNISH, INSTRUMENT PANEL SIDE, RH
55348-2003001

RT10#,11#..LHD

BLACK,BLACK,TRIM1#,2#,8#

 1
55348-2003006

RT10#,11#..LHD

OLIVE-BROWN,BROWN,TRIM4#

 1
55349 - GARNISH, INSTRUMENT PANEL SIDE, LH
55349-2003001

RT10#,11#..LHD

BLACK,BLACK,TRIM1#,2#,8#

 1
55349-2003006

RT10#,11#..LHD

OLIVE-BROWN,BROWN,TRIM4#

 1
55365 - BRACKET, INSTRUMENT PANEL UNDER TRAY
55365-20050

RT10#,110,112,114..DLX

 1
55414 - BEZEL, CIGAR LIGHTER HOLE
55414-20040

RT10#,11#

 1
55424 - ORNAMENT, CHOKE CONTROL
55429-20020

RT10#,110,112,116,117,118..EUR,GEN,PHL

 1
55429-2002001

RT100,104,11#..EUR,GEN,PHL

BLACK,BLACK,TRIM2#

 1
55429-2002006

RT100,104,11#..EUR,GEN,PHL

BROWN,BROWN,TRIM4#

 1
55429-2002006

RT100,104,11#..LHD

BROWN,BROWN,TRIM4#

 1
55429-2002001

RT100,104,11#..LHD

BLACK,BLACK,TRIM2#

 1
55450 - LOUVER ASSY, SIDE VENTILATOR, RH
55450-20132

RT100,104,11#..LHD

 1
55450A - SPRING, SIDE VENTILATOR LOUVER
55426-20020

RT10#,11#

 4
55450A - SPRING, SIDE VENTILATOR LOUVER
55426-20020

RT10#,11#

 4
55464 - BASE, CIGARETTE LIGHTER
55474-2003006

RT10#,11#..LHD

OLIVE-BROWN,BROWN,TRIM4#

 1
55474-2003001

RT10#,11#..LHD

BLACK,BLACK,TRIM1#,2#,8#

 1
55503 - COMPARTMENT SUB-ASSY, GLOVE
55531-20130

RT10#,110,112..LHD..DLX

FOR W/LAMP HOLE

 1
55503B - CUSHION(FOR GLOVE COMPARTMENT)
90541-04142

RT10#,11#

 2
55510 - DOOR ASSY, GLOVE COMPARTMENT
55510-2028001

RT10#,11#..LHD

BLACK,BLACK,TRIM1#,2#,8#

 1
55510-2028006

RT10#,11#..LHD

OLIVE-BROWN,BROWN,TRIM4#

 1
55522 - RETAINER, GLOVE COMPARTMENT MALE
55521-20050

RT10#,11#

 1
55627 - BEZEL, GLOVE COMPARTMENT DOOR LOCK
55627-30011

RT10#,11#

 1
55685 - RETAINER,AIR GUIDE BLADE CASE, CENTER NO.1
55697-20010

RT10#,11#

 1
Common parts
90159-40072
90159-50060
90159-50159
90159-60178
90160-40008
90164-40049
90167-50018
90183-04003
90183-04016
90183-05094
90519-06070
90519-40048
90562-04066
91656-40818
93510-15016
93530-55016
93560-55020
94115-40500
94525-00600
Linked diagrams
7404
8401
