RT104L-KDF (1975)
Toyota Corona
Production
Sep 1975
-
Aug 1978
Engine
18R
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7308-7905)LHD..MTM

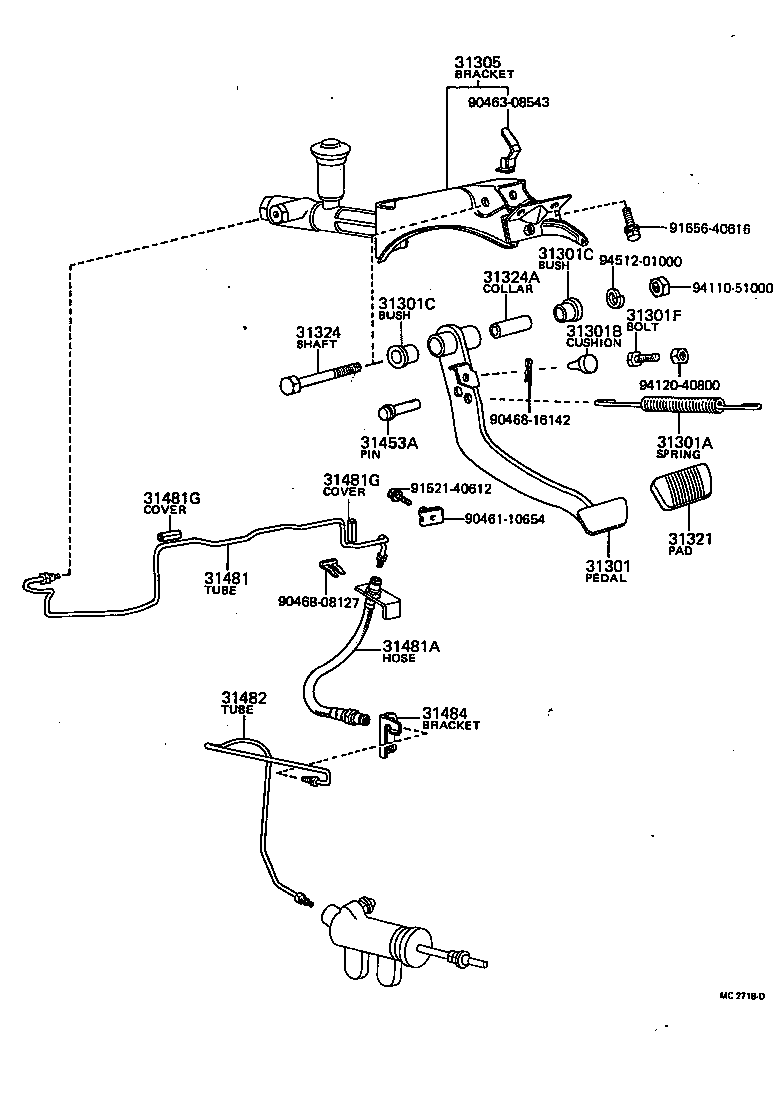

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-20110 |
RT10#,11#..LHD..MTM |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06008 |
RT10#,11#..MTM |
1 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13192 |
RT10#,11#..MTM |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13192 |
RT10#,11#..MTM |
2 | ||
| 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90109-08001 |
RT10#,11#..MTM |
1 | ||
| 31305 - BRACKET SUB-ASSY, CLUTCH PEDAL | ||||
| 55016-20010 |
RT10#,11#..LHD..MTM |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-20020 |
RT10#,11#..MTM |
1 | ||
| 31324 - SHAFT, CLUTCH PEDAL | ||||
| 90101-10039 |
RT10#,11#..MTM |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-10003 |
RT10#,11#..MTM |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90240-08040 |
RT10#,11#..MTM |
1 | ||
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-20080 |
RT10#,11#..LHD..MTM |
1 | ||
| 31481A - HOSE, CLUTCH, NO.1 | ||||
| 90947-02206 |
RT10#,11#..MTM |
1 | ||
| 31481G - COVER, TUBE | ||||
| 47341-20010 |
RT10#,11#..MTM |
2 | ||
| 31481G - COVER, TUBE | ||||
| 47341-20010 |
RT10#,11#..MTM |
2 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-20220 |
RT102,104,112,114,117,118..MTM |
1 | ||
| 31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH) | ||||
| 31484-20120 |
RT102,104,112,114,117,118..MTM |
1 | ||
| Common parts | ||||
| 90461-10654 | ||||
| 90463-08543 | ||||
| 90468-08127 | ||||
| 90468-16142 | ||||
| 91521-40612 | ||||
| 91656-40616 | ||||
| 94110-51000 | ||||
| 94120-40800 | ||||
| 94512-01000 | ||||
