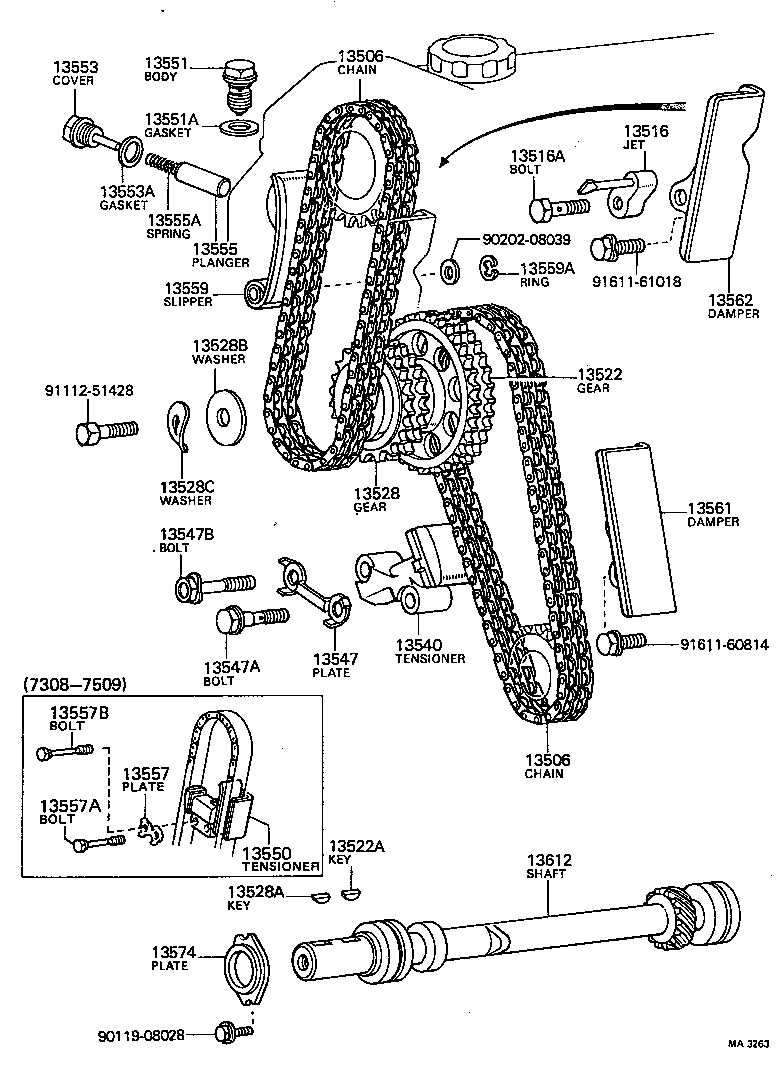

Toyota Corona RT104 TIMING CHAIN

Part #	Description	Period	Qty
13506 - CHAIN SUB-ASSY
13506-33010	16R,18R..RT102,104,112,114,117,118	08/1973 - 09/1975	2
13506 - CHAIN SUB-ASSY
13506-33010	16R,18R..RT102,104,112,114,117,118	08/1973 - 09/1975	2
13516A - BOLT UNION(FOR OIL JET)
90401-10001	16R,18R#..RT102,104,114,118	09/1975 - 04/1976	1
13522 - GEAR, PUMP DRIVE SHAFT
13522-33010	16R,18R..RT102,104,112,114,117,118 N=36	08/1973 - 09/1975	1
13522A - KEY, WOODRUFF(FOR PUMP DRIVE SHAFT GEAR)
90280-05010	16R,18R..RT102,104,112,114,117,118	08/1973 - 09/1975	1
13528 - GEAR, CAMSHAFT DRIVE
13528-33010	16R,18R..RT102,104,112,114,117,118 N=24	08/1973 - 09/1975	1
13528A - KEY, WOODRUFF(FOR CAMSHAFT DRIVE GEAR)
90280-05010	16R,18R..RT102,104,112,114,117,118	08/1973 - 09/1975	1
13528B - WASHER, PLATE(FOR CAMSHAFT DRIVE GEAR SET)
90201-14293	16R,18R..RT102,104,112,114,117,118	08/1973 - 09/1975	1
13528C - WASHER, WAVE(FOR CAMSHAFT DRIVE GEAR SET)
90206-14048	16R,18R..RT102,104,112,114,117,118	08/1973 - 09/1975	1
13540 - TENSIONER ASSY, CHAIN, NO.1
13540-33014	16R,18R..RT102,104,112,114,117,118	08/1973 - 09/1975	1
13547 - PLATE, TENSIONER BOLT LOCK, NO.1
13547-33010	16R,18R..RT102,104,112,114,117,118	08/1973 - 09/1975	1
13547A - BOLT(FOR TENSIONER LOCK PLATE SET)
90119-08013	16R,18R..RT102,104,112,114,117,118	08/1973 - 09/1975	1
13547B - BOLT, UNION(FOR TENSIONER LOCK PLATE)
90401-10049	16R,18R..RT102,104,112,114,117,118	08/1973 - 09/1975	1
13550 - TENSIONER ASSY, CHAIN, NO.2
13550-33016	16R,18R..RT102,104,112,114,117,118	08/1973 - 09/1975	1
13557 - PLATE, TENSIONER BOLT LOCK, NO.2
13557-33011	16R,18R..RT102,104,112,114,117,118	08/1973 - 09/1975	1
13557A - BOLT(FOR TENSIONER LOCK PLATE SET)
90401-10073	16R,18R..RT102,104,112,114,117,118	08/1973 - 09/1975	1
13557B - BOLT, UNION(FOR TENSIONER LOCK PLATE)
90401-10073	16R,18R..RT102,104,112,114,117,118	08/1973 - 09/1975	1
13561 - DAMPER, CHAIN VIBRATION, NO.1
13561-33011	16R,18R..RT102,104,112,114,117,118	08/1973 - 09/1975	1
13574 - PLATE, PUMP DRIVE SHAFT
13574-33010	16R,18R..RT102,104,112,114,117,118	08/1973 - 09/1975	1
13612 - SHAFT, PUMP DRIVE
13612-33010	16R,18R..RT102,104,112,114,117,118	08/1973 - 07/1974	1
Common parts
90119-08028
90202-08039
91112-51428
91611-60814
91611-61018

RT104L-KDF (1975)

(7308-7905)16R,18R#
