RT104L-KDF (1975)

Toyota Corona

Production Sep 1975 - Aug 1978
Engine 18R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7308-7905)16R,18R#

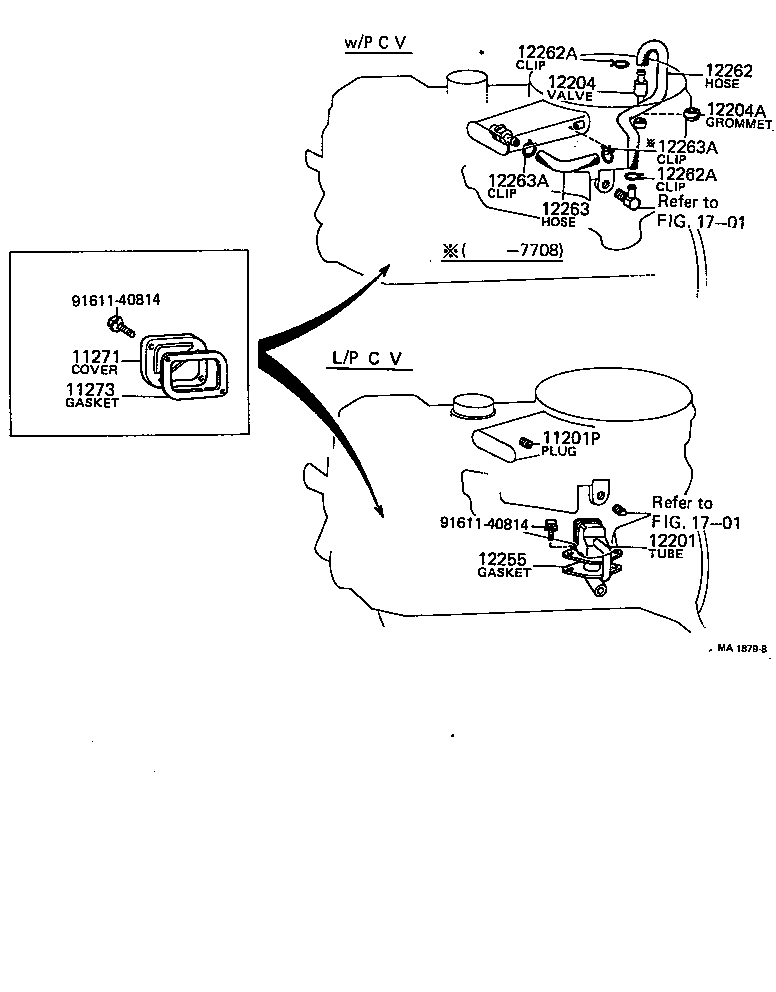

Click highlighted areas on diagram

diagram 11201P 11271 11273 12201 12204 12204A 12255 12262 12262A 12262A 12263 12263A 12263A 1701 1701 9161140814 9161140814
Part # Description Qty Price
11271 - COVER, CYLINDER BLOCK SIDE
11271-33010

16R,18R..RT102,104,112,114,117,118

 1
11273 - GASKET, CYLINDER BLOCK SIDE COVER
11273-33010

16R,18R..RT102,104,112,114,117,118

 1
12204 - VALVE SUB-ASSY, VENTILATION
12204-34010

18R#..RT104,114,118..ARL,EUR,GEN

 1
12204-34010

16R,18R..RT102,104,112,117,118..ARL,EUR,GEN

 1
12204A - GROMMET(FOR VENTILATION SYSTEM)
90480-18180

16R,18R..RT102,104,112,117,118..ARL,EUR,GEN

 1
90480-18180

18R#..RT104,114,118..ARL,EUR,GEN

 1
12262 - HOSE, VENTILATION, NO.2
12261-33020

16R,18R#..RT102,104,114,118

 1
12261-33020

18R#..RT104,114,118..ARL,EUR,GEN

 1
12261-33020

16R,18R..RT102,104,112,117,118..ARL,EUR,GEN

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-16010

16R,18R..RT102,104,112,117,118..ARL,EUR,GEN

ID=16

 2
90467-16010

18R#..RT104,114,118..ARL,EUR,GEN

ID=16

 2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-16010

16R,18R..RT102,104,112,117,118..ARL,EUR,GEN

ID=16

 2
90467-16010

18R#..RT104,114,118..ARL,EUR,GEN

ID=16

 2
12263 - HOSE, VENTILATION, NO.3
12262-34020

18R#..RT104,114,118..ARL,EUR,GEN

 1
90910-05023

16R,18R..RT102,104,112,117,118..ARL,EUR,GEN

 1
12263A - CLIP(FOR VENTILATION HOSE)
90467-20020

16R,18R#..RT102,104,114,118

ID=19

 2
90467-20020

12R,16R,18R..RT10#,112,116,117,118..ARL,EUR,GEN

ID=19

 2
90467-20020

18R#..RT104,114,118..ARL,EUR,GEN

ID=19

 2
12263A - CLIP(FOR VENTILATION HOSE)
90467-20020

16R,18R#..RT102,104,114,118

ID=19

 2
90467-20020

12R,16R,18R..RT10#,112,116,117,118..ARL,EUR,GEN

ID=19

 2
90467-20020

18R#..RT104,114,118..ARL,EUR,GEN

ID=19

 2
Common parts
91611-40814
Linked diagrams
1701
