RT104L-HRF (1975)
Toyota Corona
Production
Sep 1975
-
Aug 1978
Engine
18R
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(7308-7905)

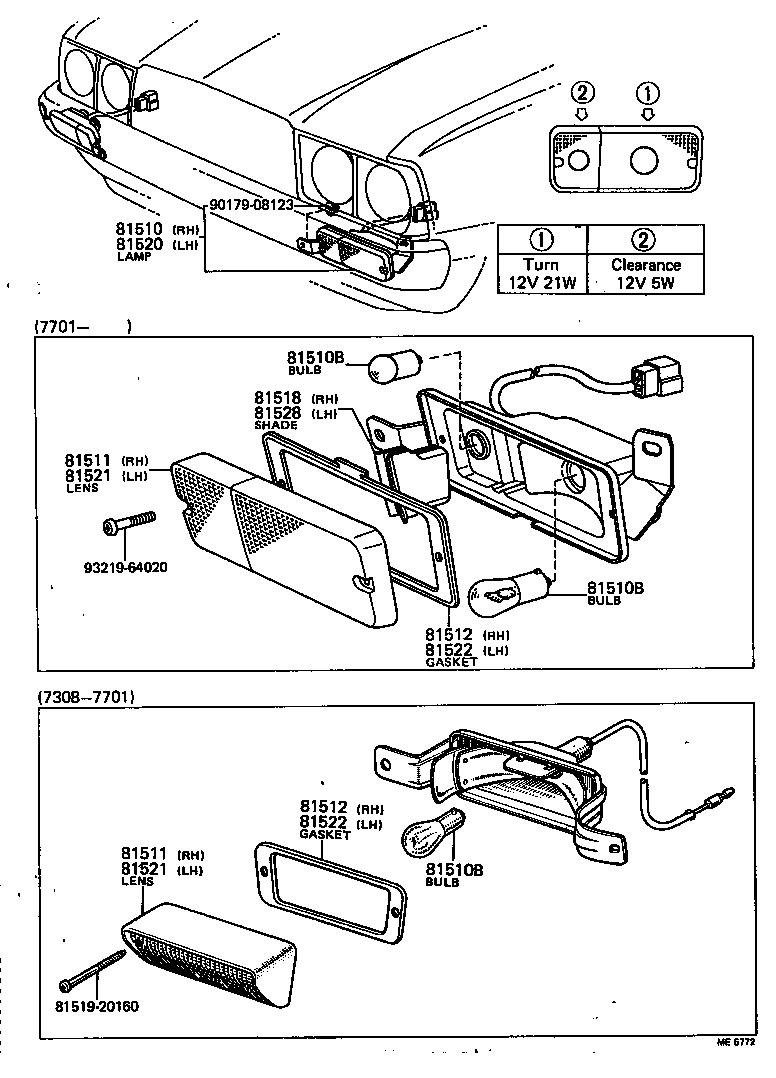

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81510 - LAMP ASSY, FRONT TURN SIGNAL, RH | ||||
| 81510-29325 |
RT10#,11# AMBER |
1 | ||
| 81510B - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 99132-11210 |
RT10#,11# 12V 21W,12V 21W |
2 | ||
| 81510B - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 99132-11210 |
RT10#,11# 12V 21W,12V 21W |
2 | ||
| 81510B - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 99132-11210 |
RT10#,11# 12V 21W,12V 21W |
2 | ||
| 81511 - LENS, FRONT TURN SIGNAL LAMP, RH | ||||
| 81511-20160 |
RT10#,11# AMBER |
1 | ||
| 81511 - LENS, FRONT TURN SIGNAL LAMP, RH | ||||
| 81511-20160 |
RT10#,11# AMBER |
1 | ||
| 81512 - GASKET, FRONT TURN SIGNAL LAMP LENS, RH | ||||
| 81512-20160 |
RT10#,11# |
1 | ||
| 81512 - GASKET, FRONT TURN SIGNAL LAMP LENS, RH | ||||
| 81512-20160 |
RT10#,11# |
1 | ||
| 81520 - LAMP ASSY, FRONT TURN SIGNAL, LH | ||||
| 81520-29325 |
RT10#,11# AMBER |
1 | ||
| 81521 - LENS, FRONT TURN SIGNAL LAMP, LH | ||||
| 81521-20150 |
RT10#,11# AMBER |
1 | ||
| 81521 - LENS, FRONT TURN SIGNAL LAMP, LH | ||||
| 81521-20150 |
RT10#,11# AMBER |
1 | ||
| 81522 - GASKET, FRONT TURN SIGNAL LAMP LENS, LH | ||||
| 81512-20160 |
RT10#,11# |
1 | ||
| 81522 - GASKET, FRONT TURN SIGNAL LAMP LENS, LH | ||||
| 81512-20160 |
RT10#,11# |
1 | ||
| Common parts | ||||
| 81519-20160 | ||||
| 90179-08123 | ||||
| 93219-64020 | ||||
