RT104L-HRF (1975)

Toyota Corona

Production Sep 1975 - Aug 1978
Engine 18R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7308-7905)LHD

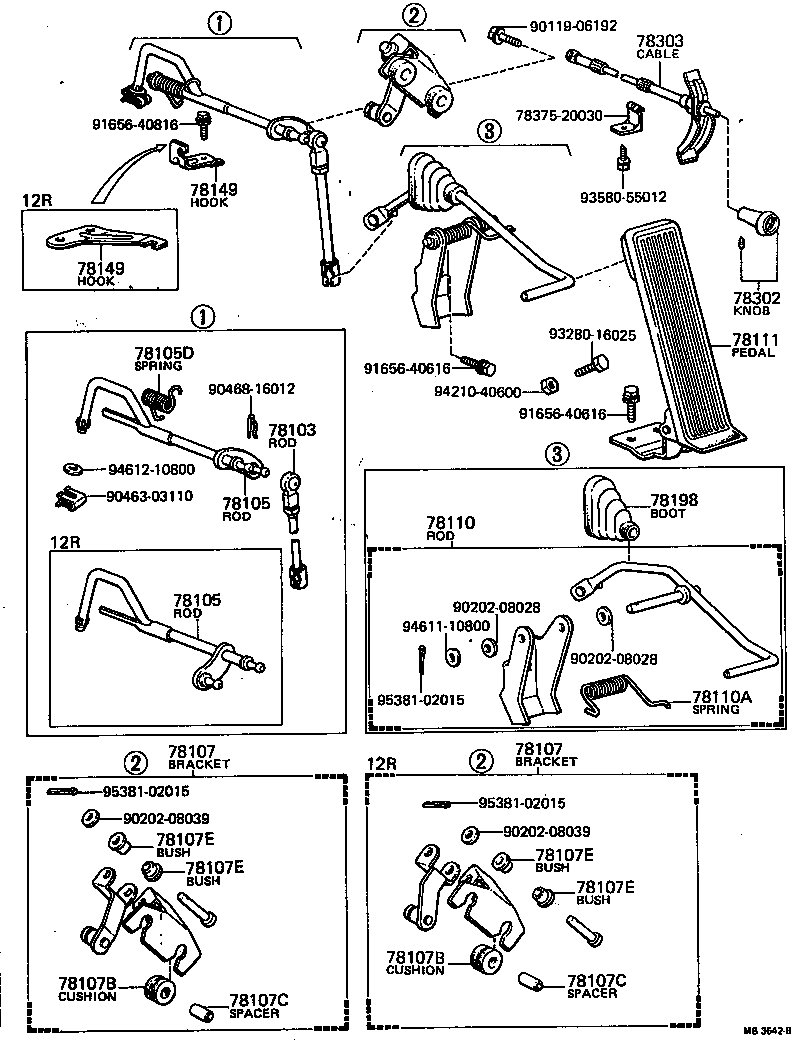

Click highlighted areas on diagram

diagram 78103 78105 78105 78105D 78107 78107 78107B 78107B 78107C 78107C 78107E 78107E 78107E 78107E 78110 78110A 78111 78149 78149 78198 78302 78303 7837520030 9011906192 9020208028 9020208028 9020208039 9020208039 9046303110 9046816012 9165640616 9165640616 9165640816 9328016025 9358055012 9421040600 9461110800 9461210800 9538102015 9538102015 9538102015
Part # Description Qty Price
78103 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.1
78103-20070

RT102,104,112,114,117,118..LHD

 1
78105 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.3
78105-20240

RT102,104,112,114,117,118..LHD

 1
78105 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.3
78105-20240

RT102,104,112,114,117,118..LHD

 1
78105D - SPRING (FOR ACCELERATOR TORQUE ROD)
90508-14365

RT102,104,112,114,117,118

 1
78107 - BRACKET SUB-ASSY, ACCELERATOR TORQUE ROD
78107-20110

RT102,104,112,114,117,118

 1
78107 - BRACKET SUB-ASSY, ACCELERATOR TORQUE ROD
78107-20110

RT102,104,112,114,117,118

 1
78107B - CUSHION (FOR ACCELERATOR TORQUE ROD BRACKET)
90540-09059

RT10#,11#

 2
78107B - CUSHION (FOR ACCELERATOR TORQUE ROD BRACKET)
90540-09059

RT10#,11#

 2
78107C - SPACER (FOR ACCELERATOR TORQUE ROD BRACKET)
90560-06238

RT10#,11#

 2
78107C - SPACER (FOR ACCELERATOR TORQUE ROD BRACKET)
90560-06238

RT10#,11#

 2
78107E - BUSH (FOR ACCELERATOR TORQUE ROD BRACKET)
90386-08077

RT10#,11#

 2
78107E - BUSH (FOR ACCELERATOR TORQUE ROD BRACKET)
90386-08077

RT10#,11#

 2
78107E - BUSH (FOR ACCELERATOR TORQUE ROD BRACKET)
90386-08077

RT10#,11#

 2
78107E - BUSH (FOR ACCELERATOR TORQUE ROD BRACKET)
90386-08077

RT10#,11#

 2
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-26377

RT10#,11#..LHD

 1
78111 - PEDAL, ACCELERATOR
78010-20030

RT10#,11#..LHD

 1
78149 - HOOK, ACCELERATOR TORQUE ROD SPRING
78178-22020

RT102,104,112,114,117,118

 1
78149 - HOOK, ACCELERATOR TORQUE ROD SPRING
78178-22020

RT102,104,112,114,117,118

 1
78198 - BOOT, ACCELERATOR CONNECTING ROD
78199-20030

RT104,114,118..LHD

 1
78199-22020

RT10#,110,112,116,117,118..LHD

 1
Common parts
78375-20030
90119-06192
90202-08028
90202-08039
90463-03110
90468-16012
91656-40616
91656-40816
93280-16025
93580-55012
94210-40600
94611-10800
94612-10800
95381-02015
