RT104L-HRF (1975)

Toyota Corona

Production Sep 1975 - Aug 1978
Engine 18R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7308-7905)RT10#,110,112,114

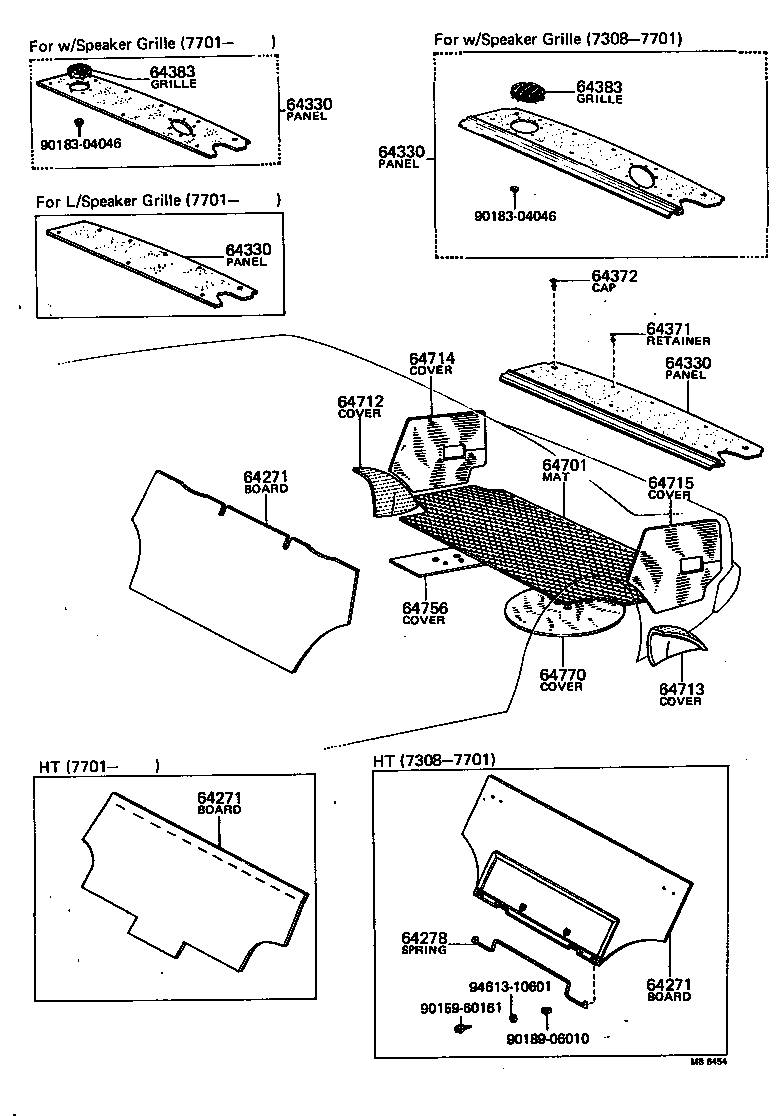

Click highlighted areas on diagram

diagram 64271 64271 64271 64278 64330 64330 64330 64330 64371 64372 64383 64383 64701 64712 64713 64714 64715 64756 64770 9015960161 9018304046 9018304046 9018906010 9461310601
Part # Description Qty Price
64271 - BOARD, ROOM PARTITION, NO.1
64271-20090

RT10#

 1
64271 - BOARD, ROOM PARTITION, NO.1
64271-20090

RT10#

 1
64271 - BOARD, ROOM PARTITION, NO.1
64271-20090

RT10#

 1
64330 - PANEL ASSY, PACKAGE TRAY TRIM
64330-20190

RT10#..EUR,GEN

FOR W/STEREO

 1
64330-2018001

RT10#..EUR,GEN,PHL,SA

BLACK,BLACK,TRIM2#

 1
64330-2018006

RT10#..EUR,GEN,PHL,SA

BROWN,BROWN,TRIM4#

 1
64330-20180

RT10#

 1
64330-2018001

RT10#..GEN,PHL,SA

BLACK,BLACK,TRIM2#

 1
64330-2019006

RT100,104..EUR,GEN

FOR W/STERED,BROWN,BROWN,TRIM4#

 1
64330-2018006

RT10#..GEN,PHL,SA

BROWN,BROWN,TRIM4#

 1
64330-2019001

RT100,104..EUR,GEN

FOR W/STERED,BLACK,BLACK,TRIM2#

 1
64330 - PANEL ASSY, PACKAGE TRAY TRIM
64330-20190

RT10#..EUR,GEN

FOR W/STEREO

 1
64330-2018001

RT10#..EUR,GEN,PHL,SA

BLACK,BLACK,TRIM2#

 1
64330-2018006

RT10#..EUR,GEN,PHL,SA

BROWN,BROWN,TRIM4#

 1
64330-20180

RT10#

 1
64330-2018001

RT10#..GEN,PHL,SA

BLACK,BLACK,TRIM2#

 1
64330-2019006

RT100,104..EUR,GEN

FOR W/STERED,BROWN,BROWN,TRIM4#

 1
64330-2018006

RT10#..GEN,PHL,SA

BROWN,BROWN,TRIM4#

 1
64330-2019001

RT100,104..EUR,GEN

FOR W/STERED,BLACK,BLACK,TRIM2#

 1
64330 - PANEL ASSY, PACKAGE TRAY TRIM
64330-20190

RT10#..EUR,GEN

FOR W/STEREO

 1
64330-2018001

RT10#..EUR,GEN,PHL,SA

BLACK,BLACK,TRIM2#

 1
64330-2018006

RT10#..EUR,GEN,PHL,SA

BROWN,BROWN,TRIM4#

 1
64330-20180

RT10#

 1
64330-2018001

RT10#..GEN,PHL,SA

BLACK,BLACK,TRIM2#

 1
64330-2019006

RT100,104..EUR,GEN

FOR W/STERED,BROWN,BROWN,TRIM4#

 1
64330-2018006

RT10#..GEN,PHL,SA

BROWN,BROWN,TRIM4#

 1
64330-2019001

RT100,104..EUR,GEN

FOR W/STERED,BLACK,BLACK,TRIM2#

 1
64330 - PANEL ASSY, PACKAGE TRAY TRIM
64330-20190

RT10#..EUR,GEN

FOR W/STEREO

 1
64330-2018001

RT10#..EUR,GEN,PHL,SA

BLACK,BLACK,TRIM2#

 1
64330-2018006

RT10#..EUR,GEN,PHL,SA

BROWN,BROWN,TRIM4#

 1
64330-20180

RT10#

 1
64330-2018001

RT10#..GEN,PHL,SA

BLACK,BLACK,TRIM2#

 1
64330-2019006

RT100,104..EUR,GEN

FOR W/STERED,BROWN,BROWN,TRIM4#

 1
64330-2018006

RT10#..GEN,PHL,SA

BROWN,BROWN,TRIM4#

 1
64330-2019001

RT100,104..EUR,GEN

FOR W/STERED,BLACK,BLACK,TRIM2#

 1
64371 - RETAINER, PACKAGE TRAY TRIM
90467-09144

RT10#

 6
64372 - CAP, PACKAGE TRAY TRIM
90950-0115411

RT10#,110,112,114

BLACK,BLACK,TRIM2#

 2
64383 - GRILLE, SPEAKER, REAR
64383-22011

RT10#,112,114..EUR,GEN

 2
64383 - GRILLE, SPEAKER, REAR
64383-22011

RT10#,112,114..EUR,GEN

 2
64701 - MAT SUB-ASSY, LUGGAGE COMPARTMENT
64711-20090

RT10#,110,112,114

 1
64756 - COVER, LUGGAGE COMPARTMENT SIDE
58350-20010

RT10#,110,112,114

 1
64770 - COVER ASSY, SPARE WHEEL
64770-20030

RT10#,110,112,114

 1
Common parts
90159-60161
90183-04046
90189-06010
94613-10601
