RT104L-HDFW (1975)

Toyota Corona

Production Sep 1975 - Aug 1978
Engine 18R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7308-7905)RT10#

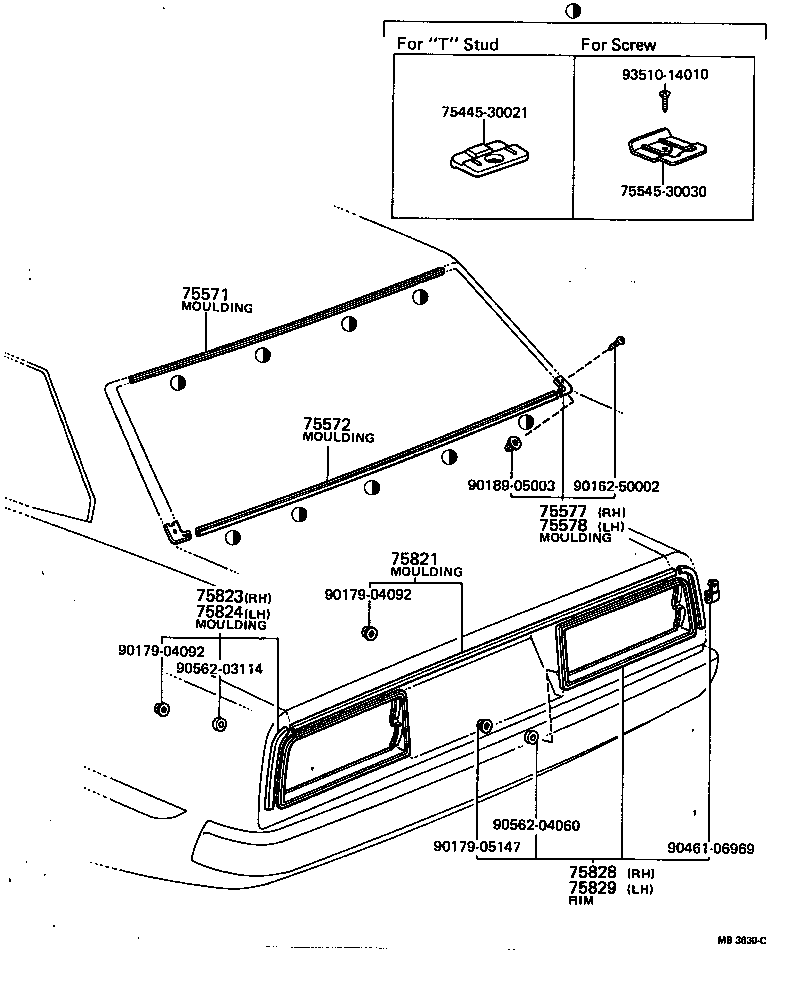

Click highlighted areas on diagram

diagram 7544530021 7554530030 75571 75572 75577 75578 75821 75823 75824 75828 75829 9016250002 9017904092 9017904092 9017905147 9018905003 9046106969 9056203114 9056204060 9351014010
Part # Description Qty Price
75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER
75571-20100

RT10#

 1
75572 - MOULDING, BACK WINDOW, LOWER
75575-20060

RT10#

 1
75577 - MOULDING, BACK WINDOW CORNER, LOWER RH
75578-29015

RT10#

 1
75578 - MOULDING, BACK WINDOW CORNER, LOWER LH
75579-29015

RT10#

 1
75821 - MOULDING, LUGGAGE COMPARTMENT DOOR BACK
75821-29045

RT10#

 1
75823 - MOULDING, LUGGAGE COMPARTMENT DOOR, SIDE RH
75823-29035

RT10#

 1
75824 - MOULDING, LUGGAGE COMPARTMENT DOOR, SIDE LH
75824-29035

RT10#

 1
75828 - RIM, REAR COMBINATION LAMP OUTER, RH
75083-29015

RT10#..DLX

 1
75083-29016

RT100,104..DLX

 1
75829 - RIM, REAR COMBINATION LAMP OUTER, LH
75084-29016

RT100,104..DLX

 1
75084-29015

RT10#..DLX

 1
Common parts
75445-30021
75545-30030
90162-50002
90179-04092
90179-05147
90189-05003
90461-06969
90562-03114
90562-04060
93510-14010
