RT104L-HDFW (1975)

Toyota Corona

Production Sep 1975 - Aug 1978
Engine 18R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7308-7905)

Click highlighted areas on diagram

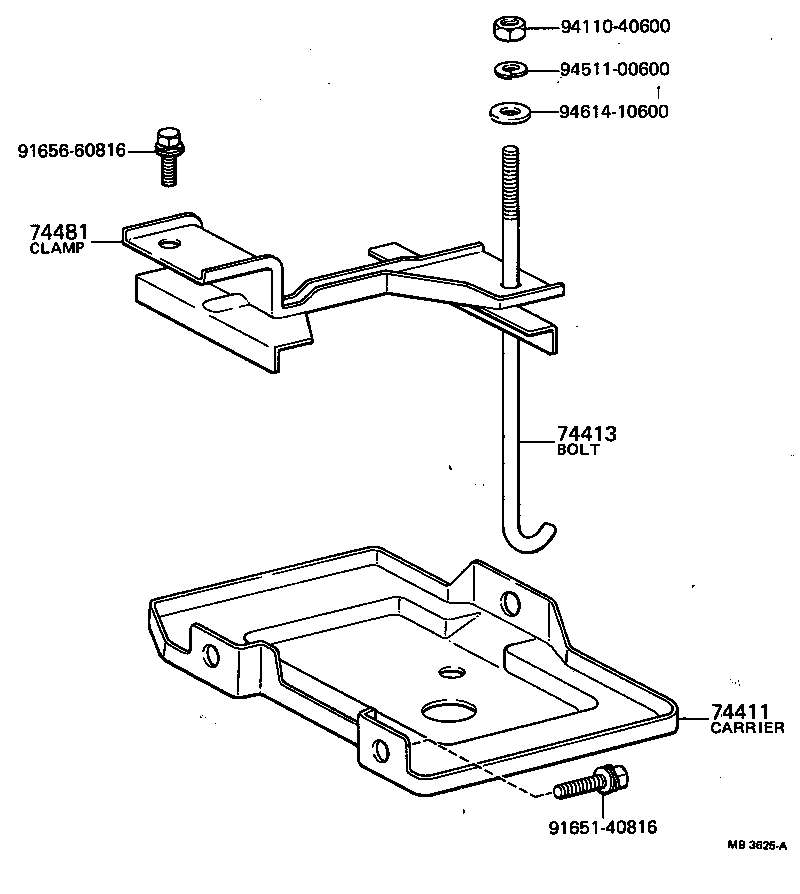

diagram 74411 74413 74481 9165140816 9165660816 9411040600 9451100600 9461410600
Part # Description Qty Price
74411 - CARRIER, BATTERY
74403-20010

RT104,118..EUR;RT114..RHD..4F..GEN

FOR N50Z

 1
74411-20090

RT10#,112,114,116,117,118..EUR,GEN,SA

FOR NS40Z

 1
74403-20010

RT10#,112,116,117,118..EUR,GEN

FOR N50Z

 1
74411-20110

RT10#,112,116,117,118..ARL,EUR,GEN

FOR NS60,N40

 1
74411-20110

RT104,118..EUG;RT10#,11#..ARL,GEN,PHL,SA

FOR NS60,N40

 1
74413 - BOLT, BATTERY CLAMP
74413-20030

RT10#,11#

 1
74481 - CLAMP, BATTERY HOLD DOWN
74404-20060

RT10#,112,116,117,118..ARL,EUR,GEN

FOR NS60

 1
74404-20040

RT10#,11#..EUR,GEN,PHL,SA

FOR NS40Z

 1
74404-20070

RT104,118..EUR;RT114..RHD..4F..GEN

FOR N50Z

 1
74404-20070

RT10#,112,116,117,118..EUR,GEN

FOR N50Z

 1
74404-20060

RT104,118..EUG;RT10#,11#..ARL,GEN,PHL,SA

FOR NS60

 1
Common parts
91651-40816
91656-60816
94110-40600
94511-00600
94614-10600
