RT104L-HDFW (1975)

Toyota Corona

Production Sep 1975 - Aug 1978
Engine 18R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7308-7905)RT10#,116,117,118

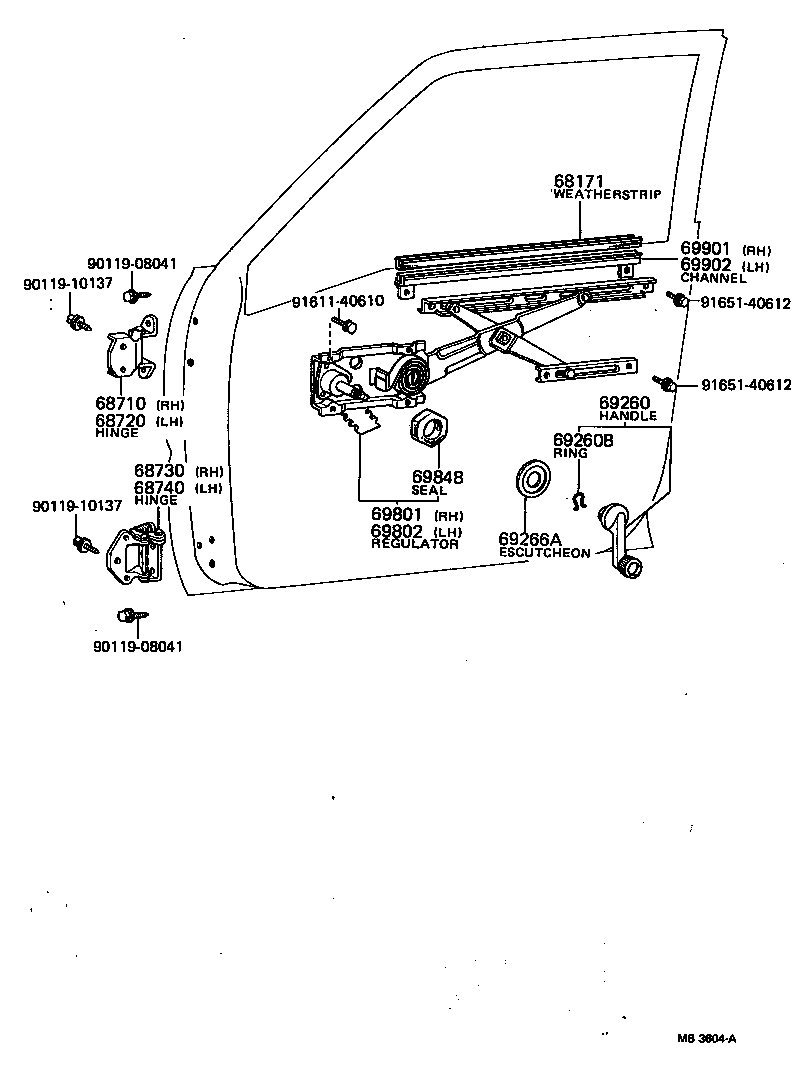

Click highlighted areas on diagram

diagram 68171 68710 68720 68730 68740 69260 69260B 69266A 69801 69802 69848 69901 69902 9011908041 9011908041 9011910137 9011910137 9161140610 9165140612 9165140612
Part # Description Qty Price
68171 - WEATHERSTRIP, FRONT DOOR GLASS CHANNEL
68171-22020

RT10#,116,117,118

 2
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-20040

RT10#,116,117,118..4D

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-20030

RT10#,116,117,118..4D

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-20050

RT10#,116,117,118..4D

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68740-20050

RT10#,116,117,118..4D

 1
69260 - HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
69260-14010

RT10#,11#

 2
69260-1201006

RT10#,11#

BROWN,BROWN,TRIM4#

 2
69260B - RING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE
90520-01274

RT10#,11#

 2
69266A - ESCUTCHEON, DOOR REGULATOR HANDLE(FOR FRONT DOOR)
69285-22010

RT10#,11#

 2
69266-2201006

RT10#,11#

BROWN,BROWN,TRIM4#

 2
69266-22010

RT10#,11#

 2
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-20080

RT10#,116,117,118

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-20080

RT10#,116,117,118

 1
69848 - SEAL, WINDOW REGULATOR HOLE
69848-30010

RT10#,11#

 2
69901 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH
69901-20070

RT10#..DLX

FOR GLASS T=4.0

 1
69902 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH
69901-20070

RT10#..DLX

FOR GLASS T=4.0

 1
Common parts
90119-08041
90119-10137
91611-40610
91651-40612
