RT104L-HDFW (1975)
Toyota Corona
Production
Sep 1975
-
Aug 1978
Engine
18R
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(7308-7905)RT10#,110,112,114

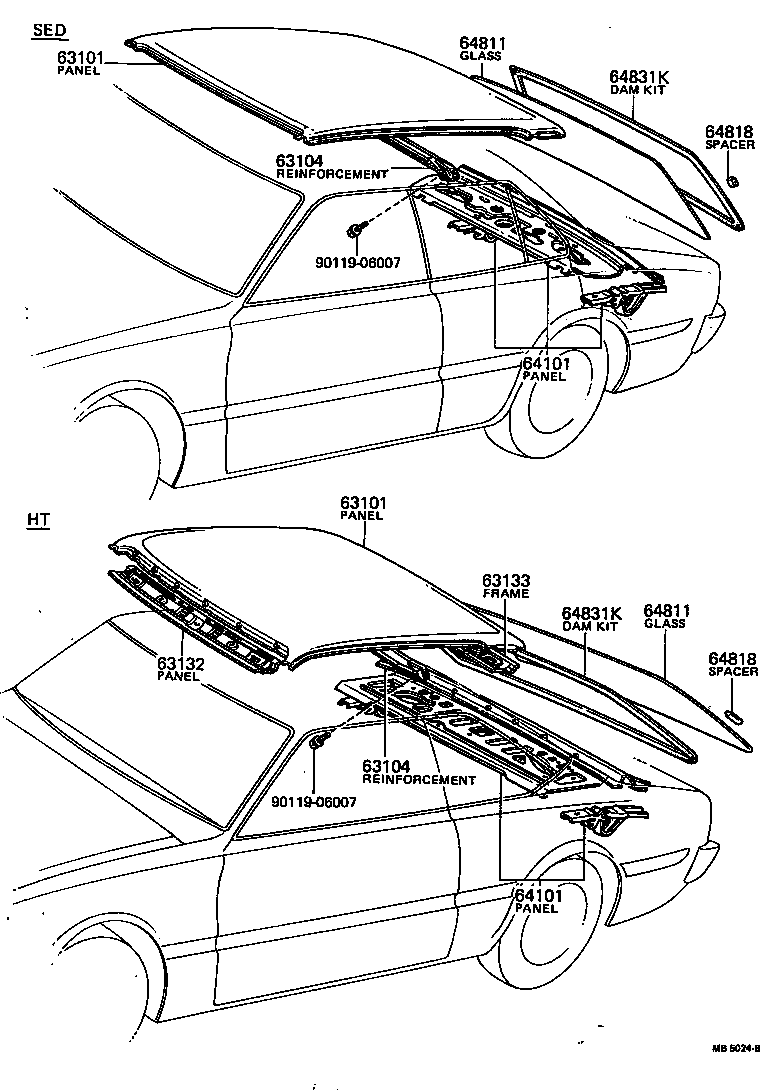

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63101 - PANEL SUB-ASSY, ROOF | ||||
| 63101-20070 |
RT10# |
1 | ||
| 63101 - PANEL SUB-ASSY, ROOF | ||||
| 63101-20070 |
RT10# |
1 | ||
| 63104 - REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER | ||||
| 63143-20060 |
RT10# |
1 | ||
| 63104 - REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER | ||||
| 63143-20060 |
RT10# |
1 | ||
| 64101 - PANEL SUB-ASSY, UPPER BACK | ||||
| 64101-20090 |
RT10# |
1 | ||
| 64101-20100 |
RT10# |
1 | ||
| 64101 - PANEL SUB-ASSY, UPPER BACK | ||||
| 64101-20090 |
RT10# |
1 | ||
| 64101-20100 |
RT10# |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64811-20200 |
RT102,104..LHD;RT102..RHD..STD..GEN TN.TP.T=4.0 |
1 | ||
| 64811-20250 |
RT104..EUR,GEN ELECT.TN.TP.T=4.0 |
1 | ||
| 64811-20290 |
RT104..LHD..EUR ELECT.TN.TP.T=4.0,ARCTIC |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64811-20200 |
RT102,104..LHD;RT102..RHD..STD..GEN TN.TP.T=4.0 |
1 | ||
| 64811-20250 |
RT104..EUR,GEN ELECT.TN.TP.T=4.0 |
1 | ||
| 64811-20290 |
RT104..LHD..EUR ELECT.TN.TP.T=4.0,ARCTIC |
1 | ||
| 64818 - SPACER, BACK WINDOW GLASS | ||||
| 56116-20030 |
RT10# |
2 | ||
| 64818 - SPACER, BACK WINDOW GLASS | ||||
| 56116-20030 |
RT10# |
2 | ||
| 64831K - DAM KIT, BACK WINDOW GLASS | ||||
| 04562-30010 |
RT10#,110,112,114 |
1 | ||
| 64831K - DAM KIT, BACK WINDOW GLASS | ||||
| 04562-30010 |
RT10#,110,112,114 |
1 | ||
| Common parts | ||||
| 90119-06007 | ||||
