RT104L-HDFW (1974)

Toyota Corona

Production Sep 1974 - Sep 1975
Engine 18R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7308-7905)

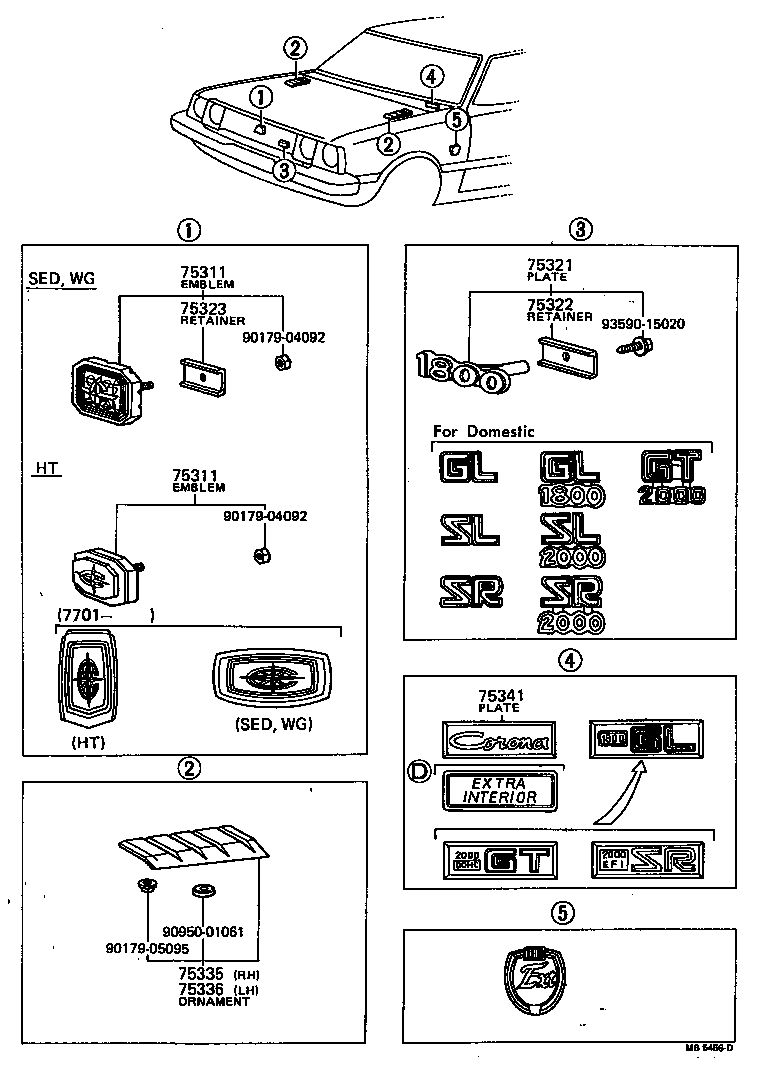

Click highlighted areas on diagram

diagram 75311 75311 75321 75322 75323 75335 75336 75341 9017904092 9017904092 9017905095 9095001061 9359015020
Part # Description Qty Price
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75301-29065

RT10#,116,117,118

 1
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75301-29065

RT10#,116,117,118

 1
75323 - RETAINER, RADIATOR GRILLE
75317-20070

RT10#,116,117,118

 1
75335 - ORNAMENT, HOOD RELIEF, RH
75335-29015

RT10#,11#

 1
75336 - ORNAMENT, HOOD RELIEF, LH
75336-29015

RT10#,11#

 1
75341 - PLATE, INSTRUMENT PANEL NAME, NO.1
55435-20100

RT10#,11#

 1
Common parts
90179-04092
90179-05095
90950-01061
93590-15020

(7308-7905)RT10#,110,112,114

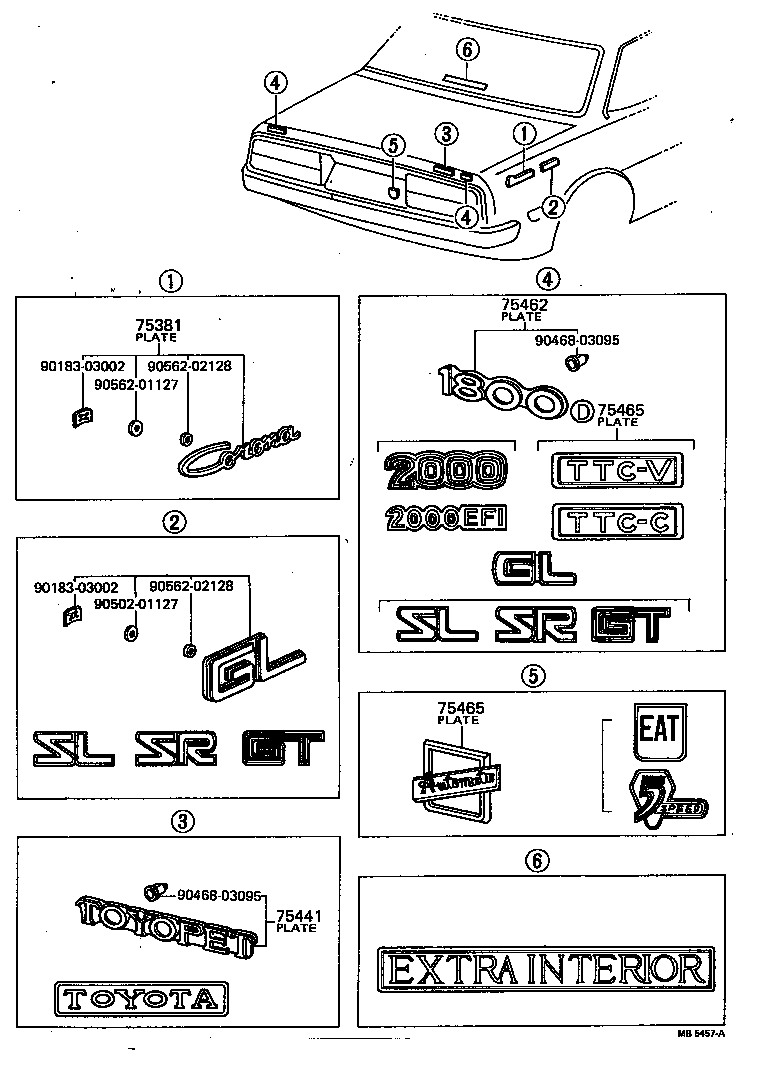

Click highlighted areas on diagram

diagram 75381 75441 75462 75465 75465 9018303002 9018303002 9046803095 9046803095 9050201127 9056201127 9056202128 9056202128
Part # Description Qty Price
75381 - PLATE, QUARTER PANEL OR SIDE PANEL NAME (MODEL MARK)
75381-29095

RT10#,11#

CORONA

 2
75441 - PLATE, REAR NAME, NO.1
75442-20040

RT10#,110,112,114

TOYOTA,TOYOTA

 1
75465 - PLATE, REAR NAME, NO.5 (MECHANISM)
75461-20060

RT102,104,112,118..3FC

AUTOMATIC

 1
75465 - PLATE, REAR NAME, NO.5 (MECHANISM)
75461-20060

RT102,104,112,118..3FC

AUTOMATIC

 1
Common parts
90183-03002
90468-03095
90502-01127
90562-01127
90562-02128
