RT104L-HDFC (1975)

Toyota Corona

Production Sep 1975 - Aug 1978
Engine 18RC
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7308-7905)

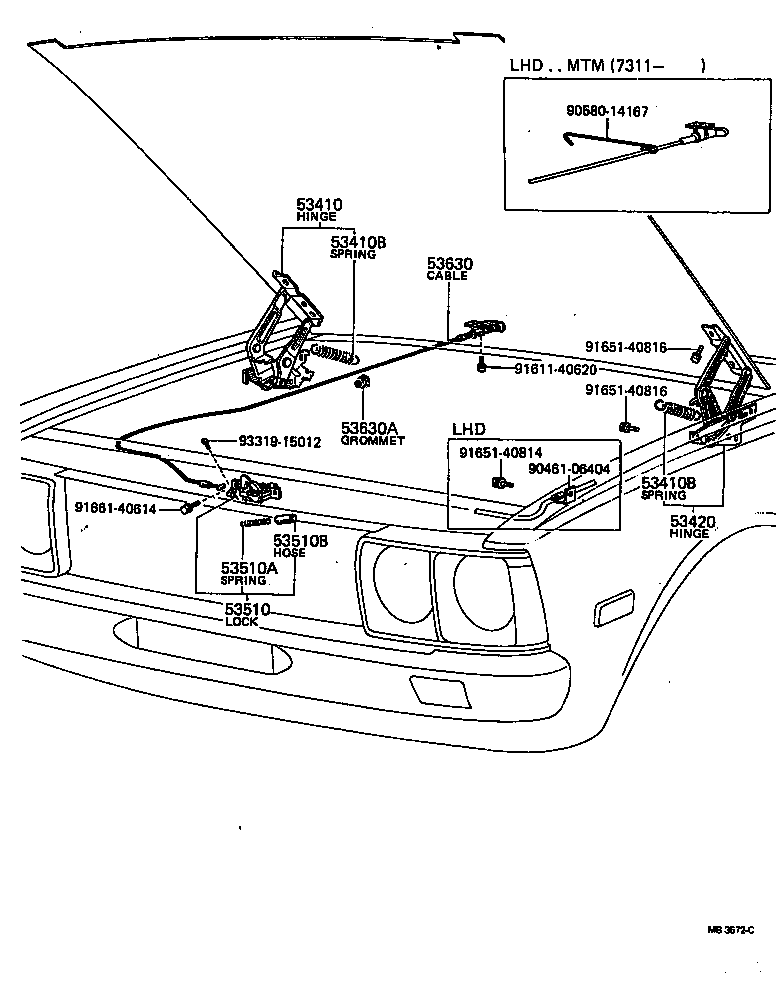

Click highlighted areas on diagram

diagram 53410 53410B 53410B 53420 53510 53510A 53510B 53630 53630A 9046106404 9058014167 9161140620 9165140814 9165140816 9165140816 9166140614 9331915012
Part # Description Qty Price
53410 - HINGE ASSY, HOOD, RH
53410-20040

RT10#,11#

 1
53410B - SPRING, TENSION(FOR HOOD HINGE)
90506-48440

RT10#,11#

 1
53410B - SPRING, TENSION(FOR HOOD HINGE)
90506-48440

RT10#,11#

 1
53420 - HINGE ASSY, HOOD, LH
53420-20040

RT10#,11#

 1
53510 - LOCK ASSY, HOOD
53510-20080

RT100,104,11#..LHD

 1
53510-22041

RT10#,11#..LHD

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-10196

RT10#,11#

 1
53510B - HOSE(FOR HOOD LOCK)
90446-12209

RT10#,11#

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-22040

RT10#,11#

 1
53630-20100

RT10#,11#

 1
53630A - GROMMET(FOR HOOD LOCK CONTROL CABLE)
90480-15194

RT10#,11#..LHD

 1
Common parts
90461-06404
90580-14167
91611-40620
91651-40814
91651-40816
91661-40614
93319-15012
