RT104L-HDF (1975)
Toyota Corona
Production
Sep 1975
-
Aug 1978
Engine
18R
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(7308-7905)16R,18R#

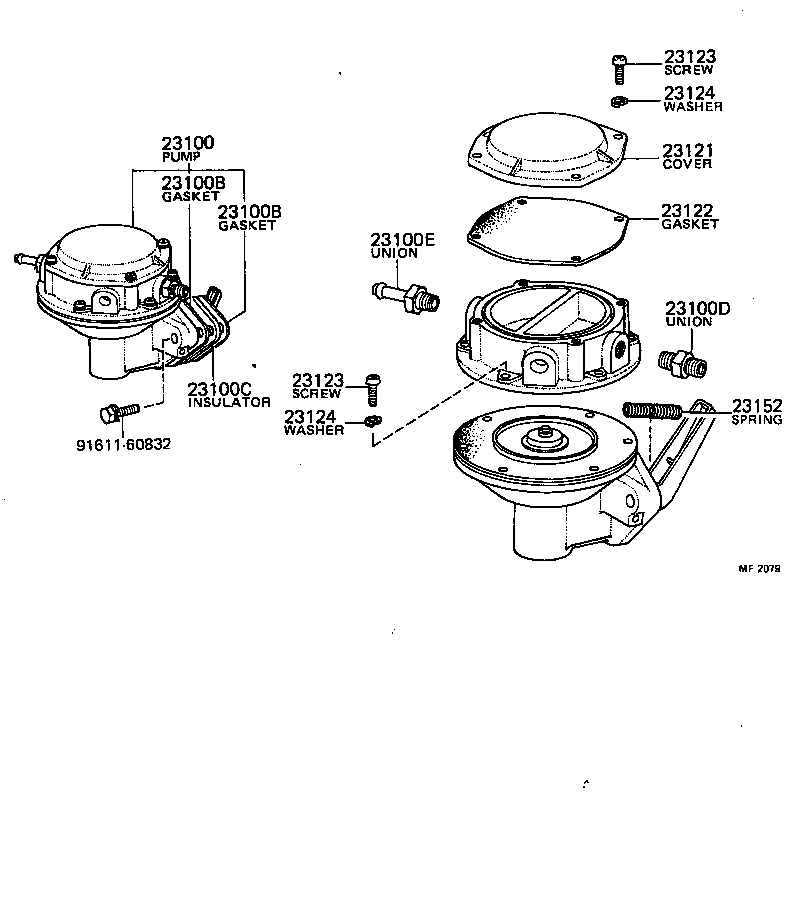

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23100 - PUMP ASSY, FUEL | ||||
| 23100-39115 |
16R,18R..RT102,104,112,114,117,118 |
1 | ||
| 23100B - GASKET, FUEL PUMP | ||||
| 90923-05005 |
12R,16R,18R..RT10#,11# |
2 | ||
| 23100B - GASKET, FUEL PUMP | ||||
| 90923-05005 |
12R,16R,18R..RT10#,11# |
2 | ||
| 23100C - INSULATOR, FUEL PUMP | ||||
| 90923-06001 |
12R,16R,18R..RT10#,11# |
1 | ||
| 23100D - UNION, NIPPLE(FOR FUEL OUTLET) | ||||
| 90404-13105 |
12R,16R,18R..RT10#,11# |
1 | ||
| 90404-13105 |
12R,16R,18R#..RT10#,11# |
1 | ||
| 23100E - UNION, NIPPLE(FOR FUEL INLET) | ||||
| 90404-51244 |
16R,18R#..RT102,104,114,118 |
1 | ||
| 90404-51244 |
16R,18R..RT102,104,112,114,117,118 |
1 | ||
| 23121 - COVER, FUEL PUMP | ||||
| 23121-41030 |
16R,18R..RT102,104,112,114,117,118 |
1 | ||
| 23121-41030 |
16R,18R#..RT102,104,114,118 |
1 | ||
| 23122 - GASKET, FUEL PUMP COVER | ||||
| 23122-41030 |
16R,18R#..RT102,104,114,118 |
1 | ||
| 23122-41030 |
16R,18R..RT102,104,112,114,117,118 |
1 | ||
| 23123 - SCREW, COVER SET, NO.1 | ||||
| 93319-15014 |
16R,18R#..RT102,104,114,118 |
10 | ||
| 23123-60022 |
16R,18R..RT102,104,112,114,117,118 |
10 | ||
| 23123 - SCREW, COVER SET, NO.1 | ||||
| 93319-15014 |
16R,18R#..RT102,104,114,118 |
10 | ||
| 23123-60022 |
16R,18R..RT102,104,112,114,117,118 |
10 | ||
| 23152 - SPRING, ROCKER ARM | ||||
| 23152-34040 |
16R,18R#..RT102,104,114,118 |
1 | ||
| 23152-34040 |
16R,18R..RT102,104,112,114,117,118 |
1 | ||
| Common parts | ||||
| 91611-60832 | ||||
