Toyota Corona RT104 RADIO RECEIVER & AMPLIFIER & CONDENSER

Manufacturers Home
Toyota
GR
CORONA
RT104-KDFN (1973)
8601 - RADIO RECEIVER & AMPLIFIER & CONDENSER

RT104-KDFN (1973)

Toyota Corona

Production Aug 1973 - May 1979

Engine 18R

Transmission 4F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(7308-7701)

Click highlighted areas on diagram

Part #	Description	Period	Qty
86011 - RADIO & SETTING PARTS SET
86011-29015	RT100,104,114,116,118..RHD AM,5-BUTTON	10/1976 - 01/1977	1
86011-20200	RT10#,112,114,116,117,118..RHD AM/FM,5-BUTTON	08/1973 - 01/1977	1
86011A - CONDENSER, RADIO SETTING
90980-04011	RT10#,116,117,118..4D PLUG CONNECTOR	08/1973 - 10/1976	1
86011A - CONDENSER, RADIO SETTING
90980-04011	RT10#,116,117,118..4D PLUG CONNECTOR	08/1973 - 10/1976	1
86011C - FILTER, NOISE
90980-05021	RT10#,116,117..4D ;U; & PLUG CONNECTOR	08/1974 - 05/1976	1
90980-05010	RT10#,116,117..4D ;U; & PLUG CONNECTOR	08/1973 - 08/1974	1
90980-05020	RT10#,116 PLUG CONNECTOR	05/1976 - 10/1976	1
90980-05029	RT114..SA;RT104..4F..SA	01/1977 - 05/1979	1
86011C - FILTER, NOISE
90980-05021	RT10#,116,117..4D ;U; & PLUG CONNECTOR	08/1974 - 05/1976	1
90980-05010	RT10#,116,117..4D ;U; & PLUG CONNECTOR	08/1973 - 08/1974	1
90980-05020	RT10#,116 PLUG CONNECTOR	05/1976 - 10/1976	1
90980-05029	RT114..SA;RT104..4F..SA	01/1977 - 05/1979	1
86120 - RECEIVER ASSY, RADIO
86120-20130	RT10#,116,117..4D AM,5-BUTTON	08/1973 - 10/1976	1
86120 - RECEIVER ASSY, RADIO
86120-20130	RT10#,116,117..4D AM,5-BUTTON	08/1973 - 10/1976	1
86124 - KNOB, RADIO RECEIVER CONTROL
86124-20040	RT10#,116,117..4D	08/1973 - 10/1976	2
86125 - KNOB, RADIO RECEIVER SWITCH
86125-20040	RT10#,116,117..4D	08/1973 - 10/1976	2
86160 - SPEAKER ASSY, FRONT NO.1
86160-20050	RT10#,116,117..4D	08/1973 - 10/1976	1
86211 - BRACKET, RADIO, NO.1
86211-20020	RT100,104,114,116,118..RHD	10/1976 - 01/1977	1
86211-20022	RT100,104,11#..RHD	01/1977 - 05/1979	1
86211 - BRACKET, RADIO, NO.1
86211-20020	RT100,104,114,116,118..RHD	10/1976 - 01/1977	1
86211-20022	RT100,104,11#..RHD	01/1977 - 05/1979	1
86212 - BRACKET, RADIO, NO.2
86212-20010	RT100,104,114,116,118..RHD	10/1976 - 01/1977	1
86212-20012	RT100,104,11#..RHD	01/1977 - 05/1979	1
86212 - BRACKET, RADIO, NO.2
86212-20010	RT100,104,114,116,118..RHD	10/1976 - 01/1977	1
86212-20012	RT100,104,11#..RHD	01/1977 - 05/1979	1
Common parts
86229-20010
86229-20020
90170-09167
90179-06070
90201-09351
93319-15008
93381-15016
93385-15020
Linked diagrams
5806

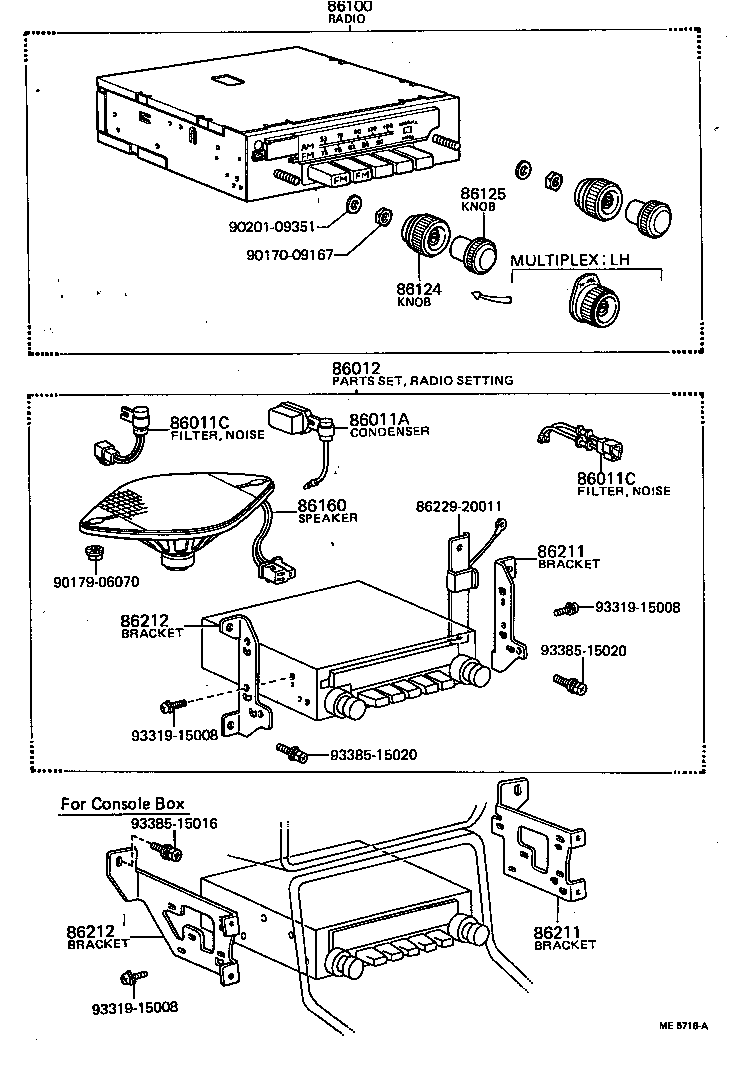

(7701-7905)

Click highlighted areas on diagram

Part #	Description	Period	Qty
86011A - CONDENSER, RADIO SETTING
90980-04011	RT10#,116,117,118..4D PLUG CONNECTOR	08/1973 - 10/1976	1
86011C - FILTER, NOISE
90980-05021	RT10#,116,117..4D ;U; & PLUG CONNECTOR	08/1974 - 05/1976	1
90980-05010	RT10#,116,117..4D ;U; & PLUG CONNECTOR	08/1973 - 08/1974	1
90980-05020	RT10#,116 PLUG CONNECTOR	05/1976 - 10/1976	1
90980-05029	RT114..SA;RT104..4F..SA	01/1977 - 05/1979	1
86011C - FILTER, NOISE
90980-05021	RT10#,116,117..4D ;U; & PLUG CONNECTOR	08/1974 - 05/1976	1
90980-05010	RT10#,116,117..4D ;U; & PLUG CONNECTOR	08/1973 - 08/1974	1
90980-05020	RT10#,116 PLUG CONNECTOR	05/1976 - 10/1976	1
90980-05029	RT114..SA;RT104..4F..SA	01/1977 - 05/1979	1
86012 - PARTS SET, RADIO SETTING
86012-29035	RT100,104,11#..RHD	01/1977 - 08/1977	1
86012-29036	RT100,104,11#..RHD	08/1977 - 05/1979	1
86124 - KNOB, RADIO RECEIVER CONTROL
86124-20040	RT10#,116,117..4D	08/1973 - 10/1976	2
86125 - KNOB, RADIO RECEIVER SWITCH
86125-20040	RT10#,116,117..4D	08/1973 - 10/1976	2
86160 - SPEAKER ASSY, FRONT NO.1
86160-20050	RT10#,116,117..4D	08/1973 - 10/1976	1
86211 - BRACKET, RADIO, NO.1
86211-20020	RT100,104,114,116,118..RHD	10/1976 - 01/1977	1
86211-20022	RT100,104,11#..RHD	01/1977 - 05/1979	1
86211 - BRACKET, RADIO, NO.1
86211-20020	RT100,104,114,116,118..RHD	10/1976 - 01/1977	1
86211-20022	RT100,104,11#..RHD	01/1977 - 05/1979	1
86212 - BRACKET, RADIO, NO.2
86212-20010	RT100,104,114,116,118..RHD	10/1976 - 01/1977	1
86212-20012	RT100,104,11#..RHD	01/1977 - 05/1979	1
86212 - BRACKET, RADIO, NO.2
86212-20010	RT100,104,114,116,118..RHD	10/1976 - 01/1977	1
86212-20012	RT100,104,11#..RHD	01/1977 - 05/1979	1
Common parts
86229-20011
90170-09167
90179-06070
90201-09351
93319-15008
93385-15016
93385-15020

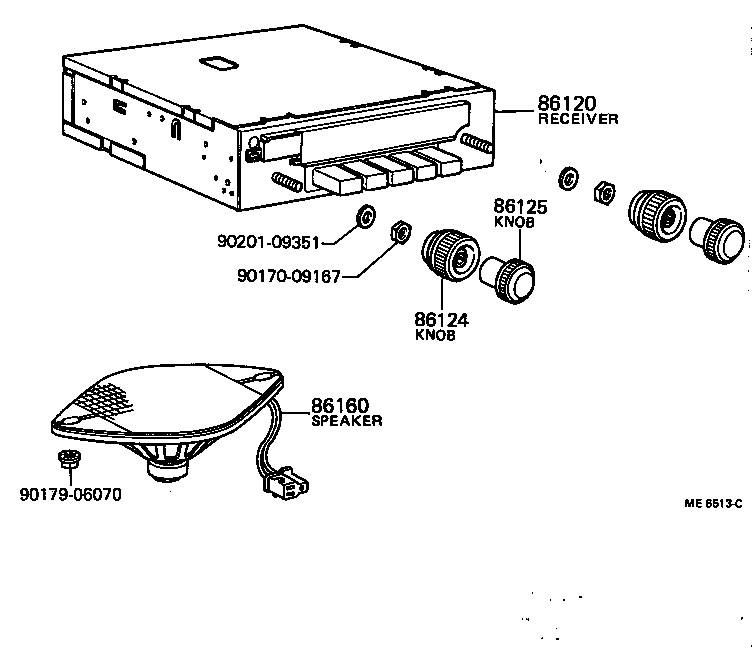

(7706-7905)

Click highlighted areas on diagram

Part #	Description	Period	Qty
86120 - RECEIVER ASSY, RADIO
86120-20130	RT10#,116,117..4D AM,5-BUTTON	08/1973 - 10/1976	1
86124 - KNOB, RADIO RECEIVER CONTROL
86124-20040	RT10#,116,117..4D	08/1973 - 10/1976	2
86125 - KNOB, RADIO RECEIVER SWITCH
86125-20040	RT10#,116,117..4D	08/1973 - 10/1976	2
86160 - SPEAKER ASSY, FRONT NO.1
86160-20050	RT10#,116,117..4D	08/1973 - 10/1976	1
Common parts
90170-09167
90179-06070
90201-09351

RT104-KDFN (1973)

(7308-7701)

(7701-7905)

(7706-7905)
