RT104-KDF (1975)

Toyota Corona

Production Sep 1975 - Aug 1978
Engine 18R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7308-7905)RHD

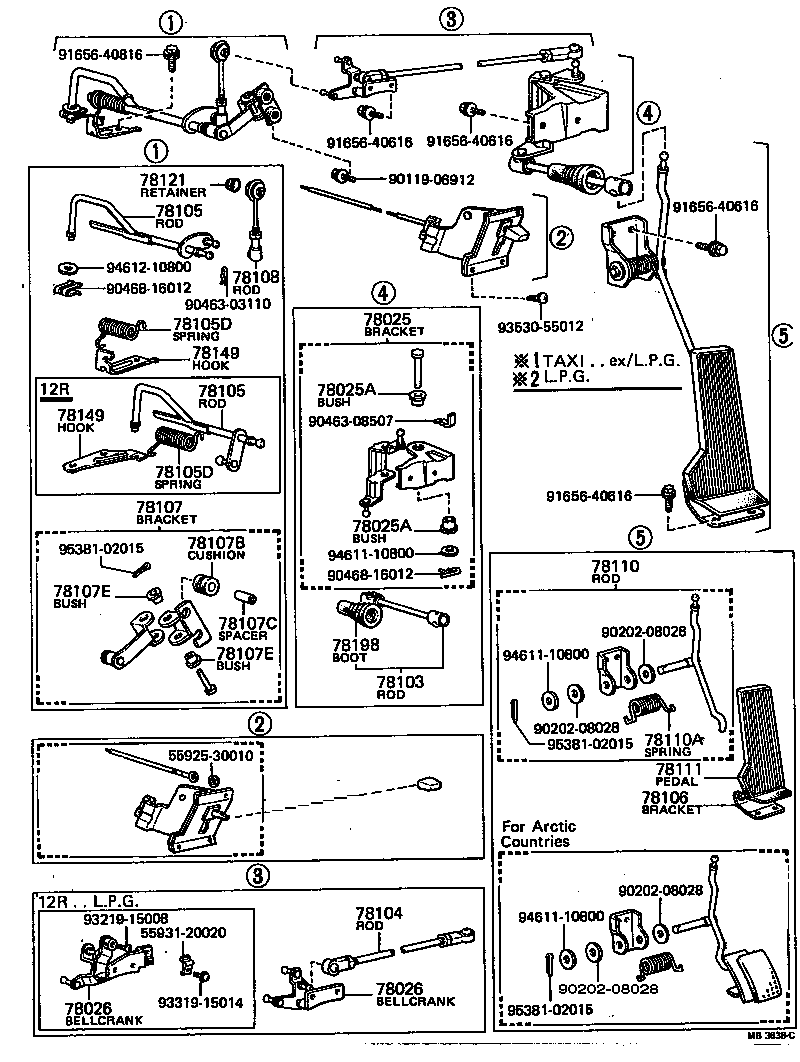

Click highlighted areas on diagram

diagram 5592530010 5593120020 78025 78025A 78025A 78026 78026 78103 78104 78105 78105 78105D 78105D 78106 78107 78107B 78107C 78107E 78107E 78108 78110 78110A 78111 78121 78149 78149 78198 9011906912 9020208028 9020208028 9020208028 9020208028 9046303110 9046308507 9046816012 9046816012 9165640616 9165640616 9165640616 9165640616 9165640816 9321915008 9331915014 9353055012 9461110800 9461110800 9461110800 9461210800 9538102015 9538102015 9538102015
Part # Description Qty Price
78025 - BRACKET SUB-ASSY, ACCELERATOR CONNECTING ROD ARM
78025-20010

RT10#,112,114,116,117,118..RHD

 1
78025A - BUSH(FOR ACCELERATOR CONNECTING BRACKET)
90386-08077

RT10#,112,114,116,117,118..RHD

 2
78025A - BUSH(FOR ACCELERATOR CONNECTING BRACKET)
90386-08077

RT10#,112,114,116,117,118..RHD

 2
78026 - BELLCRANK SUB-ASSY, ACCELERATOR, NO.2
78017-20010

RT102,104,112,114,117,118..RHD

 1
78026 - BELLCRANK SUB-ASSY, ACCELERATOR, NO.2
78017-20010

RT102,104,112,114,117,118..RHD

 1
78103 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.1
78103-20902

RT10#,112,114,116,117,118..RHD

 1
78104 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2
78104-20110

RT10#,112,114,116,117,118..RHD

 1
78105 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.3
78105-20250

RT102,104,112,114,117,118..RHD

 1
78105-20251

RT102,104,114,118..RHD

 1
78105 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.3
78105-20250

RT102,104,112,114,117,118..RHD

 1
78105-20251

RT102,104,114,118..RHD

 1
78105D - SPRING (FOR ACCELERATOR TORQUE ROD)
90508-14365

RT102,104,112,114,117,118

 1
78105D - SPRING (FOR ACCELERATOR TORQUE ROD)
90508-14365

RT102,104,112,114,117,118

 1
78106 - BRACKET SUB-ASSY, ACCELERATOR PEDAL SUPPORT
78106-20070

RT10#,112,114,116,117,118..RHD

 1
78107 - BRACKET SUB-ASSY, ACCELERATOR TORQUE ROD
78107-20110

RT102,104,112,114,117,118

 1
78107B - CUSHION (FOR ACCELERATOR TORQUE ROD BRACKET)
90540-09059

RT10#,11#

 2
78107C - SPACER (FOR ACCELERATOR TORQUE ROD BRACKET)
90560-06238

RT10#,11#

 2
78107E - BUSH (FOR ACCELERATOR TORQUE ROD BRACKET)
90386-08077

RT10#,11#

 2
78107E - BUSH (FOR ACCELERATOR TORQUE ROD BRACKET)
90386-08077

RT10#,11#

 2
78108 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.4
78108-20100

RT102,104,112,114,117,118..RHD

 1
78110 - ROD ASSY, ACCELERATOR PEDAL
78110-20110

RT10#,112,114,116,117,118..RHD

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-29378

RT10#,112,114,116,117,118..RHD

 1
78111 - PEDAL, ACCELERATOR
78010-22020

RT10#,112,114,116,117,118..RHD

 1
78149 - HOOK, ACCELERATOR TORQUE ROD SPRING
78178-22020

RT102,104,112,114,117,118

 1
78149 - HOOK, ACCELERATOR TORQUE ROD SPRING
78178-22020

RT102,104,112,114,117,118

 1
78198 - BOOT, ACCELERATOR CONNECTING ROD
78199-20040

RT10#,112,114,116,117,118..RHD

 1
Common parts
55925-30010
55931-20020
90119-06912
90202-08028
90463-03110
90463-08507
90468-16012
91656-40616
91656-40816
93219-15008
93319-15014
93530-55012
94611-10800
94612-10800
95381-02015
