RT104-KDF (1975)
Toyota Corona
Production
Sep 1975
-
Aug 1978
Engine
18R
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7308-7701)

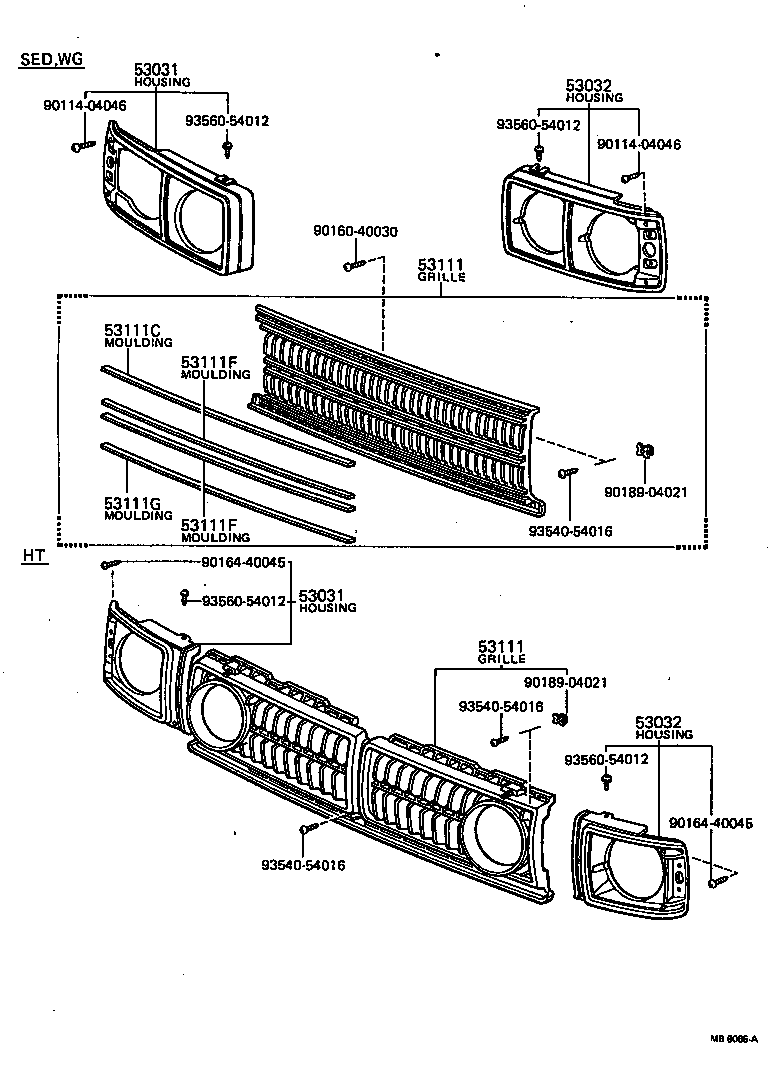

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53031 - HOUSING, HEADLAMP, RH | ||||
| 53131-29065 |
RT10#..DLX LIGHT GRAY |
1 | ||
| 53131-29066 |
RT100,104..DLX DARK GRAY |
1 | ||
| 53031 - HOUSING, HEADLAMP, RH | ||||
| 53131-29065 |
RT10#..DLX LIGHT GRAY |
1 | ||
| 53131-29066 |
RT100,104..DLX DARK GRAY |
1 | ||
| 53032 - HOUSING, HEADLAMP, LH | ||||
| 53132-29045 |
RT10#..DLX LIGHT GRAY |
1 | ||
| 53132-29046 |
RT100,104..DLX DARK GRAY |
1 | ||
| 53032 - HOUSING, HEADLAMP, LH | ||||
| 53132-29045 |
RT10#..DLX LIGHT GRAY |
1 | ||
| 53132-29046 |
RT100,104..DLX DARK GRAY |
1 | ||
| 53111 - GRILLE, RADIATOR | ||||
| 53111-2090503 |
RT10#..DLX DARK GRAY,GRAY |
1 | ||
| 53111-2090513 |
RT100,104..DLX GRAY,GRAY |
1 | ||
| 53111 - GRILLE, RADIATOR | ||||
| 53111-2090503 |
RT10#..DLX DARK GRAY,GRAY |
1 | ||
| 53111-2090513 |
RT100,104..DLX GRAY,GRAY |
1 | ||
| Common parts | ||||
| 90114-04046 | ||||
| 90160-40030 | ||||
| 90164-40045 | ||||
| 90189-04021 | ||||
| 93540-54016 | ||||
| 93560-54012 | ||||
