RT104-KDF (1975)
Toyota Corona
(7308-7905)RT10#,112,114,116,117,118
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45201-20150 |
RT10#,112,114,116,117,118 COLLAPSIBLE |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18038 |
RT10#,11# |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
RT10#,11# T=1.20,T=1.2 |
2 | ||
| 90520-17196 |
RT10#,11# T=1.35-1.45,T=1.4 |
2 | ||
| 45201E - PLUG, PLATE(FOR STEERING MAIN SHAFT) | ||||
| 90333-21008 |
RT10#,112,114,116,117,118..ARL,EUR,GEN,SA COLLAPSIBLE |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45870-20040 |
RT104,114,116,118 COLLAPSIBLE |
1 | ||
| 45230 - COUPLING ASSY, FLEXIBLE | ||||
| 45230-30041 |
RT10#,112,114,116,117,118 COLLAPSIBLE |
1 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45253-20913 |
RT10#,112,114,116,117,118..RHD..(4F,5F) |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-20020 |
RT10#,112,114,116,117,118..RHD |
1 | ||
| 45255 - PLATE, STEERING COLUMN HOLE COVER | ||||
| 45255-20030 |
RT10#,11# |
1 | ||
| 45255A - GROMMET OR RING, O(FOR STEERING COLUMN CLAMP) | ||||
| 90301-45202 |
RT10#,11# |
1 | ||
| 45269 - RETAINER, MAIN SHAFT BEARING | ||||
| 45269-20010 |
RT10#,11# |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45280-20140 |
RT10#,112,114,116,117,118..RHD |
1 | ||
| 45275A - BOLT, HEXAGON(FOR STEERING COLUMN BRACKET) | ||||
| 91611-40616 |
RT10#,11# |
3 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45287-20050 |
RT10#,112,114,116,117,118..RHD..(4F,5F) LOWER |
1 | ||
| 45023-20040 |
RT10#,112,114,116,117,118..RHD..(4F,5F) UPPER |
1 | ||
| 45287-20051 |
RT10#,114,116,118..RHD..(4F,5F) LOWER |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45287-20050 |
RT10#,112,114,116,117,118..RHD..(4F,5F) LOWER |
1 | ||
| 45023-20040 |
RT10#,112,114,116,117,118..RHD..(4F,5F) UPPER |
1 | ||
| 45287-20051 |
RT10#,114,116,118..RHD..(4F,5F) LOWER |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45287-20050 |
RT10#,112,114,116,117,118..RHD..(4F,5F) LOWER |
1 | ||
| 45023-20040 |
RT10#,112,114,116,117,118..RHD..(4F,5F) UPPER |
1 | ||
| 45287-20051 |
RT10#,114,116,118..RHD..(4F,5F) LOWER |
1 | ||
| 45281E - PLATE, SAFETY CAUTION | ||||
| 45283-22010 |
RT10#,112,114,116,117,118..RHD |
1 | ||
| 45281E - PLATE, SAFETY CAUTION | ||||
| 45283-22010 |
RT10#,112,114,116,117,118..RHD |
1 | ||
| 45281E - PLATE, SAFETY CAUTION | ||||
| 45283-22010 |
RT10#,112,114,116,117,118..RHD |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-22040 |
RT10#,11#..ARL,EUR,GEN,SA COLLAPSIBLE |
1 | ||
| 45292-20030 |
RT10#,112,114,116,117,118..ARL,EUR,GEN,SA COLLAPSIBLE |
1 | ||
| 45807 - BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT | ||||
| 45807-20050 |
RT10#,112,114,116,117,118..RHD |
1 | ||
| Common parts | ||||
| 90119-08185 | ||||
| 90119-10024 | ||||
| 90119-10129 | ||||
| 91121-70830 | ||||
| 91611-40816 | ||||
| 91656-40620 | ||||
| 93315-14012 | ||||
| 93319-14008 | ||||
| 94110-50800 | ||||
| 94512-00800 | ||||

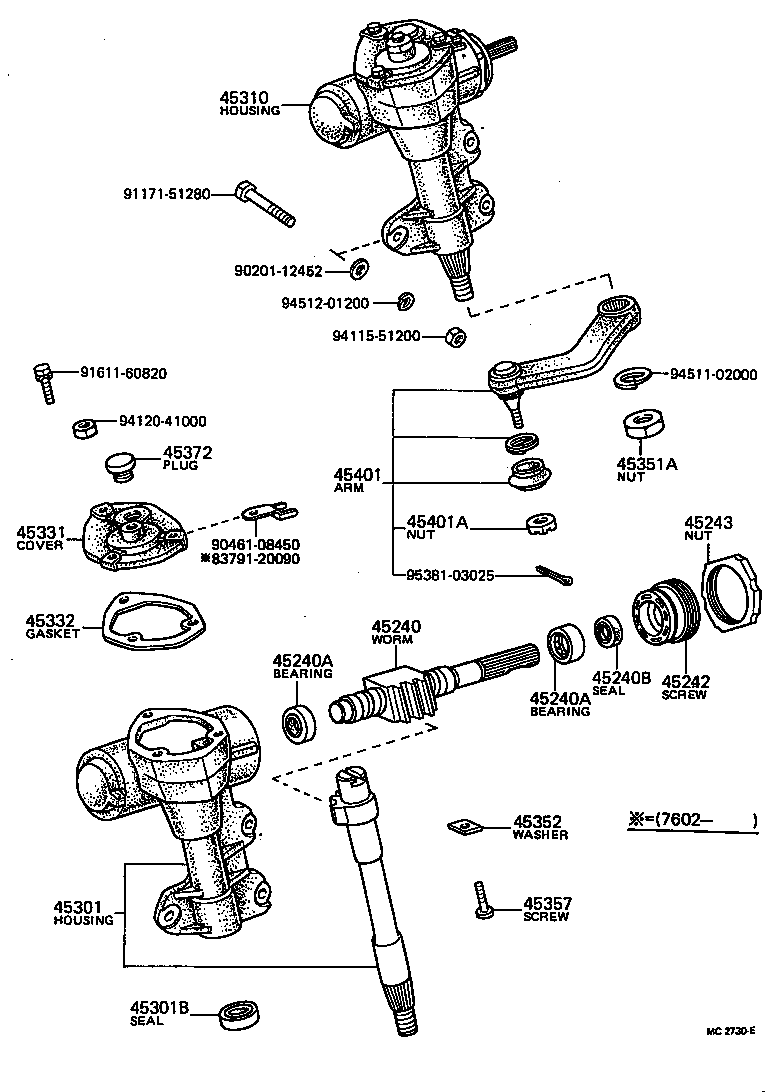

(7308-7905)RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45240 - WORM ASSY, STEERING | ||||
| 45240-20040 |
RT102,104,112,114,117,118..RHD |
1 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 90369-40018 |
RT10#,112,114,116,117,118..RHD |
2 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 90369-40018 |
RT10#,112,114,116,117,118..RHD |
2 | ||
| 45240B - SEAL, OIL(FOR STEERING WORM) | ||||
| 90311-17092 |
RT10#,11# |
1 | ||
| 45242 - SCREW, WORM BEARING ADJUSTING | ||||
| 45242-22020 |
RT10#,112,114,116,117,118..RHD |
1 | ||
| 45243 - NUT, WORM BEARING ADJUSTING SCREW LOCK | ||||
| 45243-22020 |
RT10#,112,114,116,117,118..RHD |
1 | ||
| 45301 - HOUSING SUB-ASSY, STEERING GEAR | ||||
| 45301-20140 |
RT102,104,112,114,117,118..RHD |
1 | ||
| 45301B - SEAL, OIL(FOR SECTOR SHAFT) | ||||
| 90310-28027 |
RT10#,11# |
1 | ||
| 45310 - HOUSING ASSY, STEERING GEAR | ||||
| 45310-20150 |
RT102,104,112,114,117,118..RHD |
1 | ||
| 45331 - COVER, SECTOR SHAFT END | ||||
| 45304-20040 |
RT10#,112,114,116,117,118..RHD |
1 | ||
| 45332 - GASKET, SECTOR SHAFT END COVER | ||||
| 45332-22020 |
RT10#,112,114,116,117,118..RHD |
1 | ||
| 45351A - NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING) | ||||
| 90170-20147 |
RT10#,11# |
1 | ||
| 45352 - WASHER, SECTOR SHAFT THRUST | ||||
| 45352-14040 |
RT10#,112,114,116,117,118..RHD T=2.12,T=2.12 |
1 | ||
| 45352-14020 |
RT10#,112,114,116,117,118..RHD T=2.04,T=2.04 |
1 | ||
| 45352-14030 |
RT10#,112,114,116,117,118..RHD T=2.08,T=2.08 |
1 | ||
| 45352-14010 |
RT10#,112,114,116,117,118..RHD T=2.00,T=2.00 |
1 | ||
| 45352-14060 |
RT10#,112,114,116,117,118..RHD T=2.20,T=2.20 |
1 | ||
| 45352-14050 |
RT10#,112,114,116,117,118..RHD T=2.16,T=2.16 |
1 | ||
| 45357 - SCREW, SECTOR SHAFT ADJUSTING | ||||
| 45357-12010 |
RT10#,112,114,116,117,118..RHD |
1 | ||
| 45372 - PLUG, STEERING GEAR HOUSING OIL | ||||
| 90930-03027 |
RT10#,11# |
1 | ||
| 45401 - ARM SUB-ASSY, PITMAN | ||||
| 45401-29095 |
RT10#,11# |
1 | ||
| 45401A - NUT, CASTLE(FOR PITMAN ARM) | ||||
| 90171-12028 |
RT10#,11# |
1 | ||
| Common parts | ||||
| 83791-20090 | ||||
| 90201-12452 | ||||
| 90461-08450 | ||||
| 91171-51280 | ||||
| 91611-60820 | ||||
| 94115-51200 | ||||
| 94120-41000 | ||||
| 94511-02000 | ||||
| 94512-01200 | ||||
| 95381-03025 | ||||
