RT104-HRFQ (1973)
Toyota Corona
(7308-7701)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27700 - REGULATOR ASSY, GENERATOR | ||||
| 27700-36010 |
12R#,16R,18R#..RT10#,11# |
1 | ||
| 27700-36020 |
12R#,16R,18R#..RT10#,11# |
1 | ||
| 84221 - SWITCH ASSY, DIFFERENTIAL VALVE | ||||
| 84220-20031 |
RT104,118..ARL |
1 | ||
| 84220-12030 |
RT104,118..ARL |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 85919-20021 |
RT10#,11# |
1 | ||
| 90987-01001 |
RT10#,11# |
2 | ||
| 85919-20020 |
RT10#,11# |
1 | ||
| Common parts | ||||
| 91521-40610 | ||||
| 91621-40816 | ||||
| 91651-40812 | ||||
| 91651-40814 | ||||
| 91656-40816 | ||||
| 93381-18010 | ||||
| 94110-40800 | ||||
| 94523-00800 | ||||
| 94611-10800 | ||||
| Linked diagrams | ||||
| 4702 | ||||
(7308-7905)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-36011 |
RT100,102,11#;RT104..3FC..SA;RT104..ARL,EUR,GEN |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-20131 |
RT102,104,112,118..3FC |
1 | ||
| 84540-22140 |
RT104,114,118..3FC |
1 | ||
| 84540-20133 |
RT104,114,118..3FC |
1 | ||
| 84540-20132 |
RT102,104,112,118..3FC |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-20131 |
RT102,104,112,118..3FC |
1 | ||
| 84540-22140 |
RT104,114,118..3FC |
1 | ||
| 84540-20133 |
RT104,114,118..3FC |
1 | ||
| 84540-20132 |
RT102,104,112,118..3FC |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-20131 |
RT102,104,112,118..3FC |
1 | ||
| 84540-22140 |
RT104,114,118..3FC |
1 | ||
| 84540-20133 |
RT104,114,118..3FC |
1 | ||
| 84540-20132 |
RT102,104,112,118..3FC |
1 | ||
| Common parts | ||||
| 90159-50017 | ||||
| 90206-16025 | ||||
| 90461-05023 | ||||
| 90461-06064 | ||||
| 90461-06080 | ||||
| 90461-06303 | ||||
| 90461-06645 | ||||
| 90461-06671 | ||||
| 90461-06686 | ||||
| 90461-08022 | ||||
| 90461-08041 | ||||
| 90463-15067 | ||||
| 90524-14001 | ||||
| 91611-40610 | ||||
| 91651-40610 | ||||
| 91656-40616 | ||||
| 93280-16016 | ||||
| 93319-15008 | ||||
| 94511-00500 | ||||
| 94531-00600 | ||||
| 94611-10500 | ||||
(7308-7701)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85915 - RELAY, MAIN | ||||
| 85915-20020 |
RT10#,112,114,116,117,118 30A |
1 | ||
| 85915-20021 |
RT10#,11# 30A |
1 | ||
| Common parts | ||||
| 91521-40610 | ||||
| 91651-40612 | ||||
| 94110-40600 | ||||
| 94180-40600 | ||||
| 94511-00600 | ||||
(7308-7701)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371A - RELAY, BULB CHECK | ||||
| 28371-45010 |
18R..RT104,118..ARL 18RC |
1 | ||
| 90987-02001 |
18R..RT104,118..ARL 18RC |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-20110 |
RT10#,11# |
1 | ||
| 81980-22060 |
RT10#,11#..RHD |
1 | ||
| 82600 - BLOCK ASSY, FUSE | ||||
| 82600-20040 |
RT10#,112,114,116,117,118..RHD |
1 | ||
| 82600-20040 |
RT10#,11# |
1 | ||
| 82611 - COVER, FUSE BLOCK | ||||
| 82611-20040 |
RT10#,11# |
1 | ||
| 82611-20070 |
RT10#,11#..RHD |
1 | ||
| 82611-20040 |
RT10#,112,114,116,117,118..RHD |
1 | ||
| 82612 - INSULATOR, FUSE BLOCK TERMINAL | ||||
| 82612-22020 |
RT10#,11# |
3 | ||
| 82614 - LEVER, FUSE | ||||
| 82614-30010 |
RT10#,11# |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 85915-20020 |
RT10#,112,114,116,117,118 30A |
1 | ||
| 85915-20021 |
RT10#,11# 30A |
1 | ||
| 85923 - RELAY, CHOKE CONTROL | ||||
| 90987-02001 |
RT104,114,118..ARL,EUR,GEN |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90179-06158 | ||||
| 91521-40614 | ||||
| 91651-40612 | ||||
| 91651-40614 | ||||
| 91656-40616 | ||||
| 93312-16012 | ||||

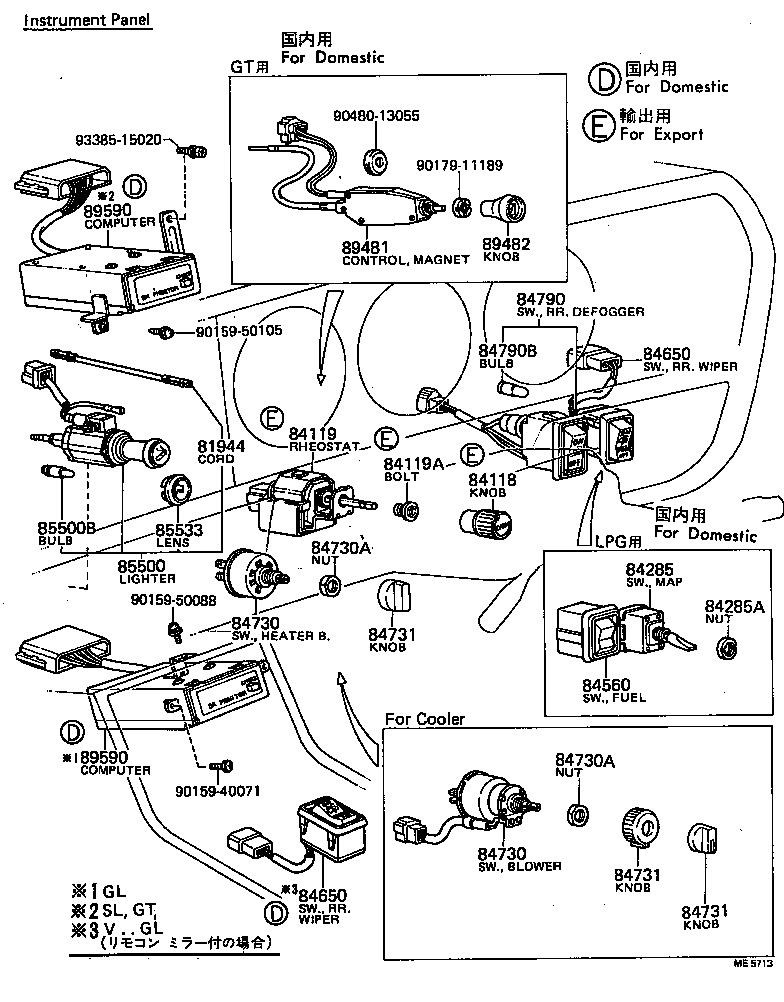

(7308-7701)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84118 - KNOB, LIGHT CONTROL RHEOSTAT | ||||
| 55887-20020 |
RT104,114,118..ARL,SA |
1 | ||
| 84118-14010 |
RT104,114,118..ARL,SA |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-20010 |
RT104,114,118..ARL,SA |
1 | ||
| 84119-14010 |
RT104,114,118..ARL,SA |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-20150 |
RT10#,112,114,116,117,118..RHD |
1 | ||
| 84310-20151 |
RT10#,11#..RHD |
1 | ||
| 84310K - SWITCH KIT, LIGHT CONTROL | ||||
| 04841-30110 |
RT10#,112,114,116,117,118..RHD TOKAIRIKA |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-20020 |
RT10#,11# MATSUSHITA |
1 | ||
| 84312-20010 |
RT10#,11# TOKAIRIKA |
1 | ||
| 84312-20011 |
RT10#,11# TOKAIRIKA |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-20110 |
RT10#,11# |
1 | ||
| 84450-10060 |
RT10#,114,116,118..RHD |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-29085 |
RT10#,11#..RHD TOKAIRIKA |
1 | ||
| 84652-19055 |
RT10#,11#..RHD MATSUSHITA |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-20020 |
RT10#,112,114,116,117..ARL,EUR,GEN,SA |
1 | ||
| 84732-20021 |
RT10#,11#..ARL,EUR,GEN,SA |
1 | ||
| 84732-20050 |
RT100,104,11#..ARL,EUR,GEN W/COOLER |
1 | ||
| 84732-20040 |
RT100,104,11#..ARL,EUR,GEN W/COOLER |
1 | ||
| 84732-20041 |
RT100,104,11#..ARL,EUR,GEN W/COOLER |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-20030 |
RT104..ARL,EUR,GEN |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 90981-11009 |
RT104..ARL,EUR,GEN 12V 1.5W |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-20080 |
RT10#,11#..RHD |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 99132-11034 |
RT10#,11#..ARL,EUR,GEN,SA 12V 3.4W,12V 3.4W |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-20010 |
RT10#,11#..ARL,EUR,GEN,SA |
1 | ||
| Common parts | ||||
| 90461-06008 | ||||
| 90461-06069 | ||||
| 90480-13055 | ||||
| 91616-40616 | ||||
| 91656-40616 | ||||
| 93315-14008 | ||||
| 93315-14012 | ||||
| 93319-13012 | ||||
| 93319-15012 | ||||
| 93530-55012 | ||||
| 93580-55012 | ||||
(7308-7905)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-29125 |
RT100,104,114 |
1 | ||
| 83320-29135 |
RT104,114..RHD |
1 | ||
| 83320-29125 |
RT10#,114 |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
RT10#,11# |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
RT10#,11# |
1 | ||
| 84231 - SWITCH ASSY, COURTESY LAMP (FOR PARKING BRAKE) | ||||
| 84380-30010 |
RT102,104,112,114,117,118..ARL,GEN,SA |
1 | ||
| 84380-20010 |
RT102,104,114,118..ARL,GEN,SA |
1 | ||
| 84231 - SWITCH ASSY, COURTESY LAMP (FOR PARKING BRAKE) | ||||
| 84380-30010 |
RT102,104,112,114,117,118..ARL,GEN,SA |
1 | ||
| 84380-20010 |
RT102,104,114,118..ARL,GEN,SA |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-20010 |
RT10#,116,117,118 |
2 | ||
| 84233B - CUSHION, COURTESY SWITCH (FOR FRONT DOOR) | ||||
| 84234-20010 |
RT10#,116,117,118 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-20010 |
RT10#,116,117,118 |
2 | ||
| 84234B - CUSHION, COURTESY SWITCH (FOR REAR DOOR) | ||||
| 84234-20010 |
RT10#,116,117,118 |
2 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-10012 |
RT10#,11# |
1 | ||
| 84340-10013 |
RT10#,11# SINGLE MASTER CYLINDER |
1 | ||
| 84340-20011 |
RT10#,11#..ARL,GEN,PHL,SA |
1 | ||
| Common parts | ||||
| 84236-20010 | ||||
| 90179-08123 | ||||
| 90179-08196 | ||||
| 90201-08131 | ||||
| 90430-08252 | ||||
| 90463-10338 | ||||
| 90560-14425 | ||||
| 91651-40014 | ||||
| 91651-40612 | ||||
| 91651-60614 | ||||
| 93319-14010 | ||||
| 94120-40800 | ||||
| 94120-41000 | ||||
| 94531-00800 | ||||
(7308-7905)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20011 |
RT10#,11# |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20011 |
RT10#,11# |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20011 |
RT10#,11# |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20011 |
RT10#,11# |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20011 |
RT10#,11# |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20011 |
RT10#,11# |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20011 |
RT10#,11# |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20011 |
RT10#,11# |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20011 |
RT10#,11# |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20011 |
RT10#,11# |
1 | ||

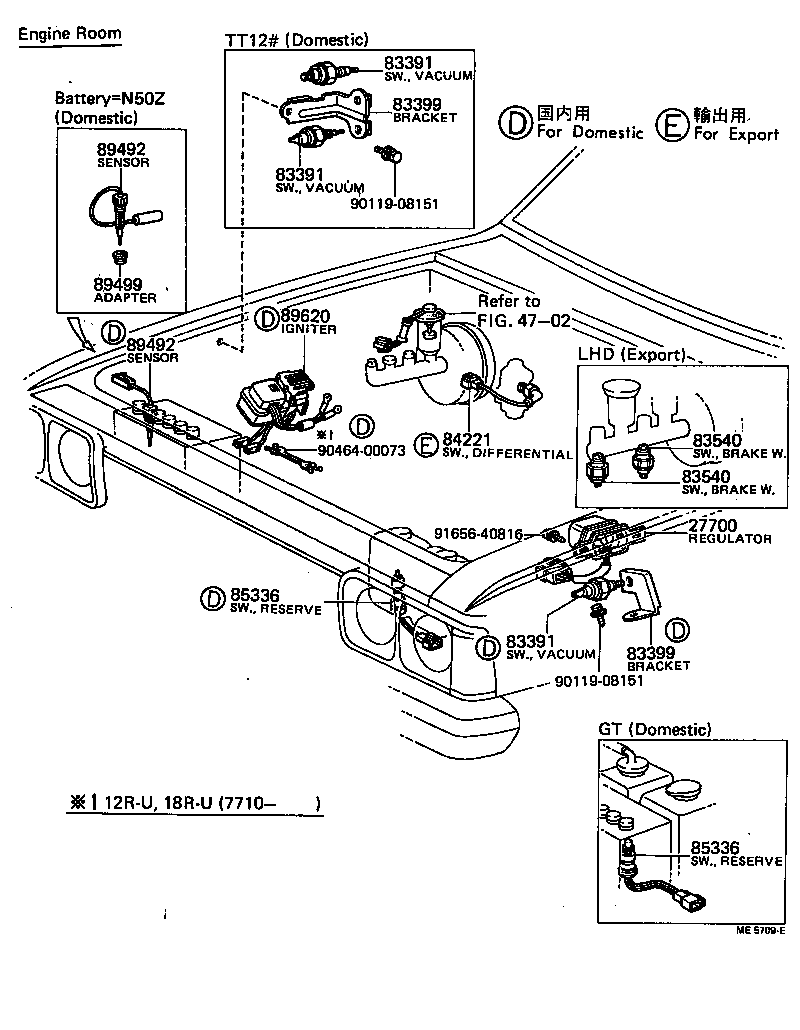

(7701-7905)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27700 - REGULATOR ASSY, GENERATOR | ||||
| 27700-36010 |
12R#,16R,18R#..RT10#,11# |
1 | ||
| 27700-36020 |
12R#,16R,18R#..RT10#,11# |
1 | ||
| 84221 - SWITCH ASSY, DIFFERENTIAL VALVE | ||||
| 84220-20031 |
RT104,118..ARL |
1 | ||
| 84220-12030 |
RT104,118..ARL |
1 | ||
| Common parts | ||||
| 90119-08151 | ||||
| 90464-00073 | ||||
| 91656-40816 | ||||
| Linked diagrams | ||||
| 4702 | ||||

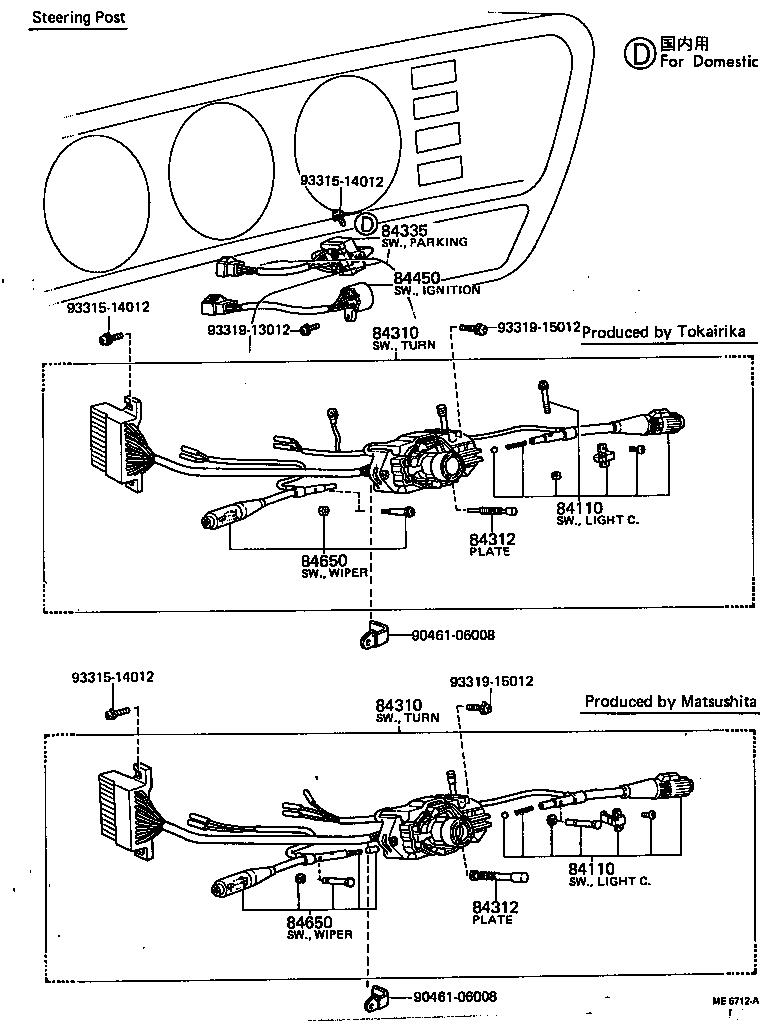

(7701-7905)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-19035 |
RT10#,11#..RHD MATSUSHITA |
1 | ||
| 84112-29075 |
RT10#,11#..RHD TOKAIRIKA |
1 | ||
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-19035 |
RT10#,11#..RHD MATSUSHITA |
1 | ||
| 84112-29075 |
RT10#,11#..RHD TOKAIRIKA |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-20150 |
RT10#,112,114,116,117,118..RHD |
1 | ||
| 84310-20151 |
RT10#,11#..RHD |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-20150 |
RT10#,112,114,116,117,118..RHD |
1 | ||
| 84310-20151 |
RT10#,11#..RHD |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-20020 |
RT10#,11# MATSUSHITA |
1 | ||
| 84312-20010 |
RT10#,11# TOKAIRIKA |
1 | ||
| 84312-20011 |
RT10#,11# TOKAIRIKA |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-20020 |
RT10#,11# MATSUSHITA |
1 | ||
| 84312-20010 |
RT10#,11# TOKAIRIKA |
1 | ||
| 84312-20011 |
RT10#,11# TOKAIRIKA |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-20110 |
RT10#,11# |
1 | ||
| 84450-10060 |
RT10#,114,116,118..RHD |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-29085 |
RT10#,11#..RHD TOKAIRIKA |
1 | ||
| 84652-19055 |
RT10#,11#..RHD MATSUSHITA |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-29085 |
RT10#,11#..RHD TOKAIRIKA |
1 | ||
| 84652-19055 |
RT10#,11#..RHD MATSUSHITA |
1 | ||
| Common parts | ||||
| 90461-06008 | ||||
| 93315-14012 | ||||
| 93319-13012 | ||||
| 93319-15012 | ||||
(7701-7905)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81944 - CORD, OPTICAL FIBER | ||||
| 81944-20021 |
RT10#,11#..ARL,EUR,GEN,SA |
1 | ||
| 81944-20020 |
RT10#,11#..ARL,EUR,GEN,SA |
1 | ||
| 84118 - KNOB, LIGHT CONTROL RHEOSTAT | ||||
| 55887-20020 |
RT104,114,118..ARL,SA |
1 | ||
| 84118-14010 |
RT104,114,118..ARL,SA |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-20010 |
RT104,114,118..ARL,SA |
1 | ||
| 84119-14010 |
RT104,114,118..ARL,SA |
1 | ||
| 84119A - BOLT OR NUT, RHEOSTAT CONTROL SET | ||||
| 90984-01013 |
RT104,114,118..ARL,SA |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-29085 |
RT10#,11#..RHD TOKAIRIKA |
1 | ||
| 84652-19055 |
RT10#,11#..RHD MATSUSHITA |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-29085 |
RT10#,11#..RHD TOKAIRIKA |
1 | ||
| 84652-19055 |
RT10#,11#..RHD MATSUSHITA |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-20020 |
RT10#,112,114,116,117..ARL,EUR,GEN,SA |
1 | ||
| 84732-20021 |
RT10#,11#..ARL,EUR,GEN,SA |
1 | ||
| 84732-20050 |
RT100,104,11#..ARL,EUR,GEN W/COOLER |
1 | ||
| 84732-20040 |
RT100,104,11#..ARL,EUR,GEN W/COOLER |
1 | ||
| 84732-20041 |
RT100,104,11#..ARL,EUR,GEN W/COOLER |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-20020 |
RT10#,112,114,116,117..ARL,EUR,GEN,SA |
1 | ||
| 84732-20021 |
RT10#,11#..ARL,EUR,GEN,SA |
1 | ||
| 84732-20050 |
RT100,104,11#..ARL,EUR,GEN W/COOLER |
1 | ||
| 84732-20040 |
RT100,104,11#..ARL,EUR,GEN W/COOLER |
1 | ||
| 84732-20041 |
RT100,104,11#..ARL,EUR,GEN W/COOLER |
1 | ||
| 84730A - NUT, HEATER BLOWER SWITCH | ||||
| 90170-11206 |
RT10#,11#..ARL,EUR,GEN,SA |
1 | ||
| 84730A - NUT, HEATER BLOWER SWITCH | ||||
| 90170-11206 |
RT10#,11#..ARL,EUR,GEN,SA |
1 | ||
| 84731 - KNOB, HEATER BLOWER SWITCH | ||||
| 84731-12021 |
RT100,104,11#..ARL,EUR,GEN W/COOLER(BLOWER SWITCH) |
1 | ||
| 84731-12031 |
RT100,104,11#..ARL,EUR,GEN W/COOLER(COOLER VOLUME) |
1 | ||
| 84731-12010 |
RT10#,11#..ARL,EUR,GEN,SA |
1 | ||
| 84731-12032 |
RT100,104,11#..ARL,EUR,GEN W/COOLER(COOLER VOLUME) |
1 | ||
| 84731-12020 |
RT100,104,11#..ARL,EUR,GEN W/COOLER(BLOWER SWITCH) |
1 | ||
| 84731 - KNOB, HEATER BLOWER SWITCH | ||||
| 84731-12021 |
RT100,104,11#..ARL,EUR,GEN W/COOLER(BLOWER SWITCH) |
1 | ||
| 84731-12031 |
RT100,104,11#..ARL,EUR,GEN W/COOLER(COOLER VOLUME) |
1 | ||
| 84731-12010 |
RT10#,11#..ARL,EUR,GEN,SA |
1 | ||
| 84731-12032 |
RT100,104,11#..ARL,EUR,GEN W/COOLER(COOLER VOLUME) |
1 | ||
| 84731-12020 |
RT100,104,11#..ARL,EUR,GEN W/COOLER(BLOWER SWITCH) |
1 | ||
| 84731 - KNOB, HEATER BLOWER SWITCH | ||||
| 84731-12021 |
RT100,104,11#..ARL,EUR,GEN W/COOLER(BLOWER SWITCH) |
1 | ||
| 84731-12031 |
RT100,104,11#..ARL,EUR,GEN W/COOLER(COOLER VOLUME) |
1 | ||
| 84731-12010 |
RT10#,11#..ARL,EUR,GEN,SA |
1 | ||
| 84731-12032 |
RT100,104,11#..ARL,EUR,GEN W/COOLER(COOLER VOLUME) |
1 | ||
| 84731-12020 |
RT100,104,11#..ARL,EUR,GEN W/COOLER(BLOWER SWITCH) |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-20030 |
RT104..ARL,EUR,GEN |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 90981-11009 |
RT104..ARL,EUR,GEN 12V 1.5W |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-20080 |
RT10#,11#..RHD |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 99132-11034 |
RT10#,11#..ARL,EUR,GEN,SA 12V 3.4W,12V 3.4W |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-20010 |
RT10#,11#..ARL,EUR,GEN,SA |
1 | ||
| Common parts | ||||
| 90159-40071 | ||||
| 90159-50088 | ||||
| 90159-50105 | ||||
| 90179-11189 | ||||
| 90480-13055 | ||||
| 93385-15020 | ||||
(7701-7905)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371A - RELAY, BULB CHECK | ||||
| 28371-45010 |
18R..RT104,118..ARL 18RC |
1 | ||
| 90987-02001 |
18R..RT104,118..ARL 18RC |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-20110 |
RT10#,11# |
1 | ||
| 81980-22060 |
RT10#,11#..RHD |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-20110 |
RT10#,11# |
1 | ||
| 81980-22060 |
RT10#,11#..RHD |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 99118-62905 |
RT10#,11# 5A,5A |
3 | ||
| 90982-07008 |
RT10#,11# 5A |
1 | ||
| 99118-62915 |
RT10#,11# 15A,15A |
8 | ||
| 99118-62920 |
RT10#,11# 20A,20A |
1 | ||
| 99118-62005 |
RT10#,11# 5A |
1 | ||
| 99118-62910 |
RT10#,11# 10A |
3 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 99118-62905 |
RT10#,11# 5A,5A |
3 | ||
| 90982-07008 |
RT10#,11# 5A |
1 | ||
| 99118-62915 |
RT10#,11# 15A,15A |
8 | ||
| 99118-62920 |
RT10#,11# 20A,20A |
1 | ||
| 99118-62005 |
RT10#,11# 5A |
1 | ||
| 99118-62910 |
RT10#,11# 10A |
3 | ||
| 82611 - COVER, FUSE BLOCK | ||||
| 82611-20040 |
RT10#,11# |
1 | ||
| 82611-20070 |
RT10#,11#..RHD |
1 | ||
| 82611-20040 |
RT10#,112,114,116,117,118..RHD |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-02001 |
RT10#,11# |
1 | ||
| 90987-02002 |
RT10#,11# |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 85919-20021 |
RT10#,11# |
1 | ||
| 90987-01001 |
RT10#,11# |
2 | ||
| 85919-20020 |
RT10#,11# |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 85919-20021 |
RT10#,11# |
1 | ||
| 90987-01001 |
RT10#,11# |
2 | ||
| 85919-20020 |
RT10#,11# |
1 | ||
| 85923 - RELAY, CHOKE CONTROL | ||||
| 90987-02001 |
RT104,114,118..ARL,EUR,GEN |
1 | ||
| Common parts | ||||
| 90159-50203 | ||||
| 91651-40614 | ||||
| Linked diagrams | ||||
| 8202 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
