RT104-HRF (1975)

Toyota Corona

Production Sep 1975 - Aug 1978

Engine 18R

Transmission 3FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(7308-7905)

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price

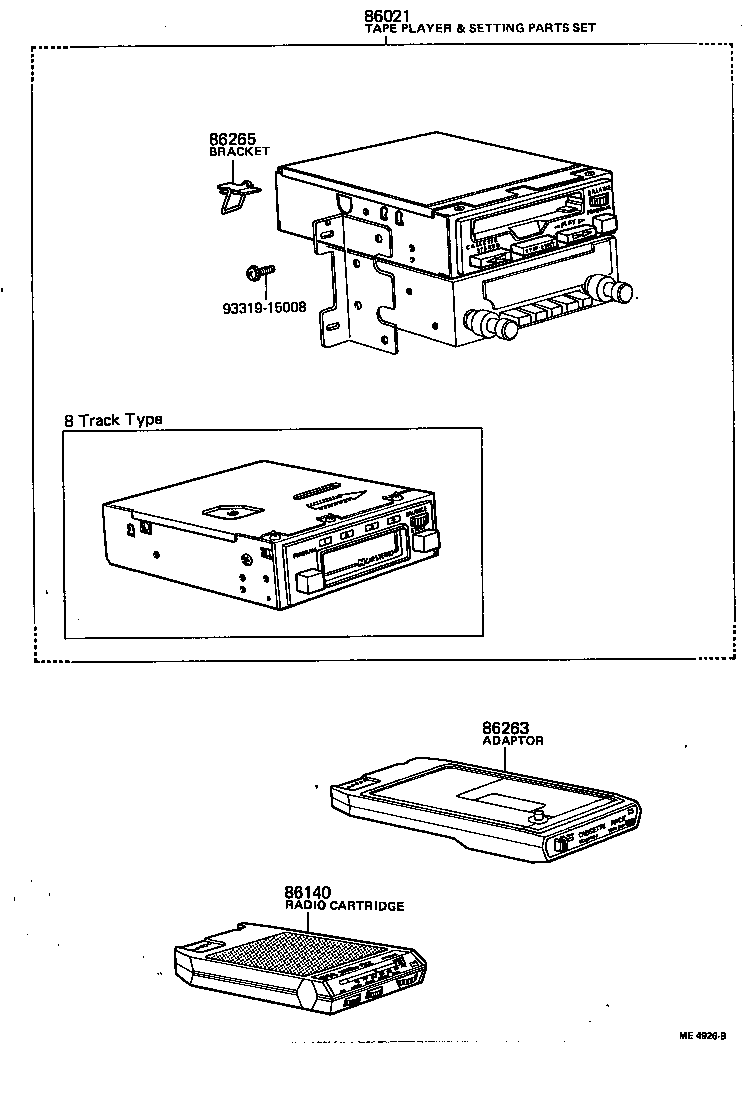

86021 - TAPE PLAYER AND SETTING PARTS SET
86021-29055	RT100,104,11#..EUR,GEN CASSETTE TYPE	01/1977 - 10/1977	1
86021-29025	RT10#,112,114,116,117,118..EUR,GEN CASSETTE TYPE	08/1973 - 01/1977	1
86021-29015	RT10#,112,114,116,117,118..EUR,GEN 8TRACK TYPE	08/1973 - 01/1977	1
86140 - RADIO CARTRIDGE ASSY, TAPE PLAYER (AM, FM STEREO PACK)
86140-20020	RT10#,112,114,116,117,118..EUR,GEN	08/1973 - 01/1977	1
86263 - ADAPTER, TAPE PLAYER CARTRIDGE(FOR CASSETTE PACK)
86263-20010	RT10#,112,114,116,117,118..EUR,GEN	08/1973 - 01/1977	1
86265 - BRACKET, TAPE PLAYER, NO.1
86239-20010	RT10#,112,114,116,117,118..EUR,GEN	08/1973 - 08/1977	1
Common parts
93319-15008

(7308-7701)

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price

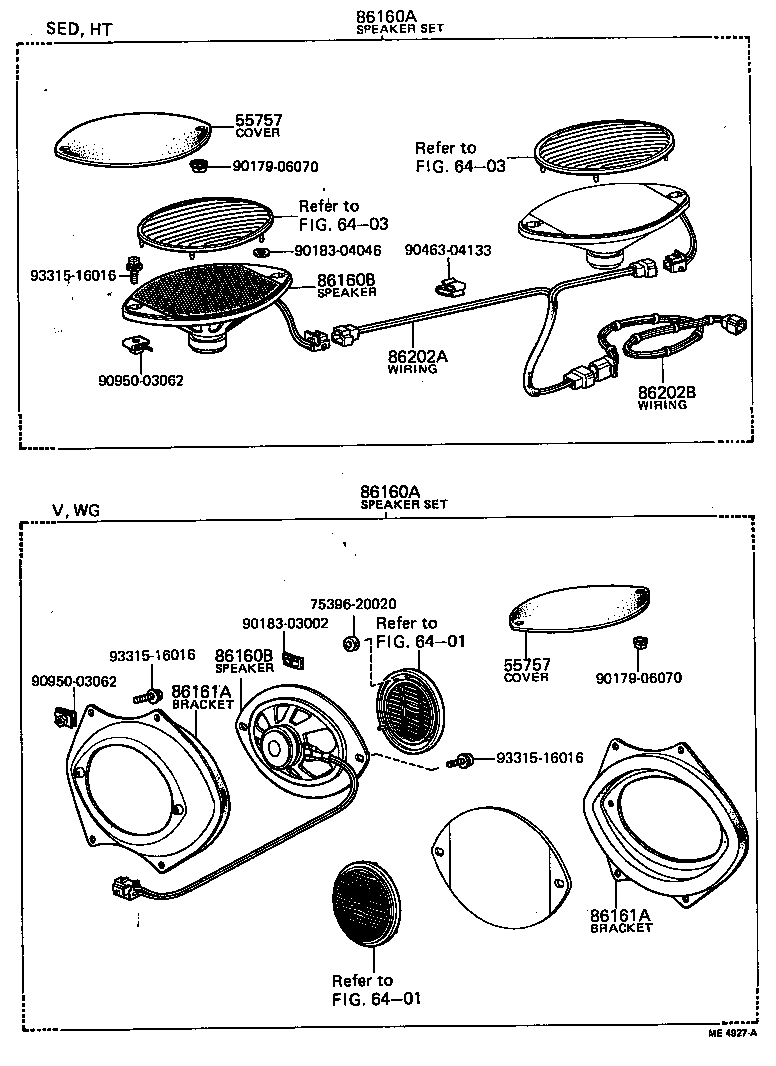

55757 - COVER, SPEAKER GRILLE HOLE
55759-20040	RT10#,112,114,116,117,118..EUR,GEN	08/1973 - 01/1977	1
55757 - COVER, SPEAKER GRILLE HOLE
55759-20040	RT10#,112,114,116,117,118..EUR,GEN	08/1973 - 01/1977	1
86160A - SPEAKER SET, FRONT
86160-29017	RT100,104,114..EUR,GEN	01/1976 - 01/1977	1
86160-29075	RT100,104,114..EUR,GEN	01/1977 - 08/1977	1
86160-29016	RT10#,112,114..EUR,GEN	08/1973 - 01/1976	1
86160A - SPEAKER SET, FRONT
86160-29017	RT100,104,114..EUR,GEN	01/1976 - 01/1977	1
86160-29075	RT100,104,114..EUR,GEN	01/1977 - 08/1977	1
86160-29016	RT10#,112,114..EUR,GEN	08/1973 - 01/1976	1
86160B - SPEAKER ASSY, REAR
86160-22030	RT100,104,11#..EUR,GEN	01/1977 - 08/1977	2
86160-20050	RT10#,112,114,116,117,118..EUR,GEN	08/1973 - 01/1977	2
86160B - SPEAKER ASSY, REAR
86160-22030	RT100,104,11#..EUR,GEN	01/1977 - 08/1977	2
86160-20050	RT10#,112,114,116,117,118..EUR,GEN	08/1973 - 01/1977	2
86202A - WIRE, SPEAKER, NO.2
86202-20014	RT100,104,114..EUR,GEN	01/1977 - 08/1977	1
86202-20011	RT10#,112,114..EUR,GEN	08/1973 - 01/1976	1
86202-20012	RT100,104,114..EUR,GEN	01/1976 - 01/1977	1
Common parts
75396-20020
90179-06070
90183-03002
90183-04046
90463-04133
90950-03062
93315-16016
Linked diagrams
6401
6403
