RT104-HRF (1975)
Toyota Corona

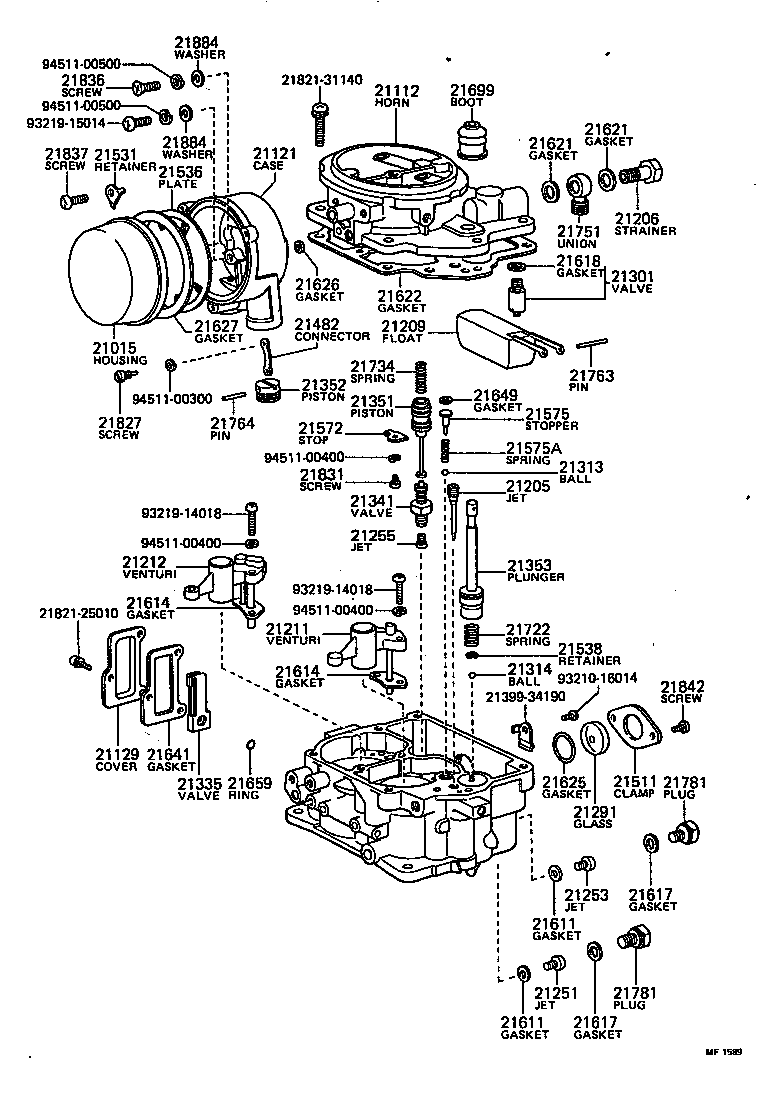

(7509-7606)18RC ; (7509-7701)16R,18R ; (7701-7905)16R,18R..RT102,104,114..SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 21015 - HOUSING SUB-ASSY, COIL | ||||
| 21122-34240 |
16R,18R#..RT102,104,114,118 |
1 | ||
| 21015-36040 |
16R,18R..RT102,104,112,114,117,118 |
1 | ||
| 21112 - HORN, AIR | ||||
| 21112-34180 |
16R,18R#..RT102,104,114,118 |
1 | ||
| 21112-34060 |
16R,18R..RT102,104,112,114,117,118 |
1 | ||
| 21121 - CASE, THERMOSTAT | ||||
| 21121-34080 |
12R,16R,18R#..RT10#,11# |
1 | ||
| 21121-34080 |
16R,18R#..RT102,104,114,118 |
1 | ||
| 21121-34080 |
12R,16R,18R..RT10#,11# |
1 | ||
| 21129 - COVER(FOR THERMOSTATIC VALVE) | ||||
| 21129-24030 |
12R,16R,18R..RT10#,11# |
1 | ||
| 21129-24030 |
16R,18R#..RT102,104,114,118 |
1 | ||
| 21205 - JET SUB-ASSY, SLOW | ||||
| 90999-44154 |
16R,18R..RT102,104,112,114,117,118 ID=0.54 |
1 | ||
| 90999-44154 |
16R,18R#..RT102,104,114,118 ID=0.54 |
1 | ||
| 21206 - STRAINER SUB-ASSY | ||||
| 21811-11060 |
16R,18R#..RT102,104,114,118 |
1 | ||
| 21209 - FLOAT SUB-ASSY | ||||
| 21209-34400 |
18R#..RT104,114,118..ARL,EUR,GEN |
1 | ||
| 21209-33011 |
16R,18R..RT102,104,112,114,117,118 |
1 | ||
| 21211 - VENTURI, 1ST SMALL | ||||
| 21211-34060 |
16R,18R..RT102,104,114,118 |
1 | ||
| 21211-34230 |
16R,18R..RT102,104,112,114,117,118 |
1 | ||
| 21212 - VENTURI, 2ND SMALL | ||||
| 21212-34031 |
16R,18R..RT102,104,112,114,117,118 |
1 | ||
| 21212-34031 |
16R,18R#..RT102,104,114,118 |
1 | ||
| 21251 - JET, 1ST MAIN | ||||
| 90999-41116 |
16R,18R..RT102,104,112,114,117,118 ID=1.16 |
1 | ||
| 90999-41116 |
16R,18R#..RT102,104,114,118 ID=1.16 |
1 | ||
| 21253 - JET, 2ND MAIN | ||||
| 90999-42165 |
16R,18R..RT102,104,112,114,117,118 ID=1.65 |
1 | ||
| 90999-42168 |
16R,18R#..RT102,104,114,118 ID=1.68 |
1 | ||
| 21255 - JET, POWER | ||||
| 21255-33080 |
12R,16R,18R..RT10#,11# ID=0.50 |
1 | ||
| 21255-31081 |
16R,18R..RT102,104,114,118 ID=0.65 |
1 | ||
| 21291 - GLASS, LEVEL GAGE | ||||
| 21291-60200 |
12R#,16R,18R#..RT10#,11# |
1 | ||
| 21291-33010 |
12R,16R,18R..RT10#,11# |
1 | ||
| 21301 - VALVE SUB-ASSY, NEEDLE | ||||
| 21301-34061 |
16R,18R#..RT102,104,114,118 |
1 | ||
| 21301-34061 |
16R,18R..RT102,104,112,114,117,118 |
1 | ||
| 21313 - BALL, STEEL, NO.1(FOR DISCHARGE WEIGHT) | ||||
| 21313-11020 |
12R#,16R,18R#..RT10#,11# |
1 | ||
| 21313-11020 |
12R,16R,18R..RT10#,11# |
1 | ||
| 21314 - BALL, STEEL, NO.2(FOR PUMP PLUNGER) | ||||
| 21314-11020 |
16R,18R..RT102,104,112,114,117,118 |
1 | ||
| 21314-11020 |
16R,18R#..RT102,104,114,118 |
1 | ||
| 21335 - VALVE, THERMOSTATIC | ||||
| 21335-33010 |
16R,18R#..RT102,104,114,118 |
1 | ||
| 21335-33010 |
12R,16R,18R#..RT10#,114,116,118 |
1 | ||
| 21335-33010 |
16R,18R..RT102,104,112,114,117,118 |
1 | ||
| 21341 - VALVE, POWER | ||||
| 21304-30010 |
12R,16R,18R..RT10#,11# |
1 | ||
| 21304-30010 |
12R#,16R,18R#..RT10#,11# |
1 | ||
| 21351 - PISTON, POWER | ||||
| 21351-33080 |
12R#,16R,18R#..RT10#,11# |
1 | ||
| 21351-33080 |
12R,16R,18R..RT10#,11# |
1 | ||
| 21352 - PISTON, VACUUM | ||||
| 21352-34060 |
16R,18R#..RT102,104,114,118 |
1 | ||
| 21352-34060 |
12R,16R,18R#..RT10#,11# |
1 | ||
| 21352-34060 |
12R,16R,18R..RT10#,11# |
1 | ||
| 21353 - PLUNGER, PUMP | ||||
| 21353-44101 |
16R,18R..RT102,104,112,114,117,118 |
1 | ||
| 21353-44101 |
16R,18R#..RT102,104,114,118 |
1 | ||
| 21353-44101 |
16R,18R..RT102,104,114,118 |
1 | ||
| 21482 - CONNECTOR, PISTON | ||||
| 21482-31010 |
12R,16R,18R..RT10#,11# |
1 | ||
| 21482-31010 |
12R,16R,18R#..RT10#,11# |
1 | ||
| 21482-31010 |
16R,18R#..RT102,104,114,118 |
1 | ||
| 21511 - CLAMP, LEVEL GAGE | ||||
| 21511-33010 |
12R#,16R,18R..RT10#,11# |
1 | ||
| 21531 - RETAINER, COIL HOUSING | ||||
| 21531-30010 |
16R,18R#..RT102,104,114,118 |
3 | ||
| 21531-30010 |
12R,16R,18R..RT10#,11# |
3 | ||
| 21531-30010 |
12R,16R,18R#..RT10#,11# |
3 | ||
| 21536 - PLATE, COIL HOUSING | ||||
| 21536-44100 |
12R,16R,18R#..RT10#,11# |
1 | ||
| 21536-44100 |
16R,18R#..RT102,104,114,118 |
1 | ||
| 21536-44100 |
12R,16R,18R..RT10#,11# |
1 | ||
| 21538 - RETAINER, BALL CHECK | ||||
| 21538-31010 |
12R,16R,18R..RT10#,11# |
1 | ||
| 21538-31010 |
12R#,16R,18R#..RT10#,11# |
1 | ||
| 21572 - STOP, POWER PISTON | ||||
| 21572-22010 |
16R,18R..RT102,104,112,114,117,118 |
1 | ||
| 21572-38010 |
16R,18R#..RT102,104,114,118 |
1 | ||
| 21575 - STOPPER, B(FOR DISCHARGE WEIGHT) | ||||
| 21575-33011 |
16R,18R..RT102,104,112,114,117,118 |
1 | ||
| 21575-26020 |
12R#,18R#..RT100,104,11# |
1 | ||
| 21575A - SPRING(FOR STOPPER, B) | ||||
| 21864-26020 |
12R#,16R,18R#..RT10#,11# |
1 | ||
| 21611 - GASKET, MAIN JET | ||||
| 21611-22010 |
12R,16R,18R..RT10#,11# |
2 | ||
| 21611-22010 |
12R#,16R,18R#..RT10#,11# |
2 | ||
| 21611 - GASKET, MAIN JET | ||||
| 21611-22010 |
12R,16R,18R..RT10#,11# |
2 | ||
| 21611-22010 |
12R#,16R,18R#..RT10#,11# |
2 | ||
| 21614 - GASKET, VENTURI | ||||
| 21615-44010 |
16R,18R#..RT102,104,114,118 2ND |
1 | ||
| 21614-34031 |
16R,18R..RT102,104,112,114,117,118 1ST |
1 | ||
| 21615-44010 |
16R,18R..RT102,104,112,114,117,118 2ND |
1 | ||
| 21614-34031 |
16R,18R#..RT102,104,114,118 1ST |
1 | ||
| 21614 - GASKET, VENTURI | ||||
| 21615-44010 |
16R,18R#..RT102,104,114,118 2ND |
1 | ||
| 21614-34031 |
16R,18R..RT102,104,112,114,117,118 1ST |
1 | ||
| 21615-44010 |
16R,18R..RT102,104,112,114,117,118 2ND |
1 | ||
| 21614-34031 |
16R,18R#..RT102,104,114,118 1ST |
1 | ||
| 21617 - GASKET, MAIN PASSAGE PLUG | ||||
| 21617-30010 |
12R,16R,18R..RT10#,11# |
2 | ||
| 21617-30010 |
12R#,16R,18R#..RT10#,11# |
2 | ||
| 21617 - GASKET, MAIN PASSAGE PLUG | ||||
| 21617-30010 |
12R,16R,18R..RT10#,11# |
2 | ||
| 21617-30010 |
12R#,16R,18R#..RT10#,11# |
2 | ||
| 21618 - GASKET, NEEDLE VALVE SEAT | ||||
| 21618-24030 |
12R#,16R,18R#..RT10#,11# |
1 | ||
| 21618-24030 |
12R,16R,18R..RT10#,11# |
1 | ||
| 21621 - GASKET, UNION NIPPLE | ||||
| 21633-24030 |
12R#,16R,18R#..RT10#,11# ID=12,T=1.0 |
2 | ||
| 21633-24030 |
12R,16R,18R..RT10#,11# ID=12,T=1.0 |
2 | ||
| 21621 - GASKET, UNION NIPPLE | ||||
| 21633-24030 |
12R#,16R,18R#..RT10#,11# ID=12,T=1.0 |
2 | ||
| 21633-24030 |
12R,16R,18R..RT10#,11# ID=12,T=1.0 |
2 | ||
| 21622 - GASKET, AIR HORN | ||||
| 21622-44100 |
16R,18R#..RT102,104,114,118 |
1 | ||
| 21622-44100 |
16R,18R..RT102,104,112,114,117,118 |
1 | ||
| 21625 - GASKET, LEVEL GAGE | ||||
| 21641-33040 |
12R,16R,18R..RT10#,11# |
1 | ||
| 21655-60200 |
12R#,16R,18R#..RT10#,11# |
1 | ||
| 21626 - GASKET, CASE | ||||
| 21649-33080 |
12R,16R,18R..RT10#,11# |
1 | ||
| 21649-33080 |
16R,18R#..RT102,104,114,118 |
1 | ||
| 21649-33080 |
12R,16R,18R#..RT10#,11# |
1 | ||
| 21627 - GASKET, COIL HOUSING | ||||
| 21627-34080 |
12R,16R,18R#..RT10#,11# |
1 | ||
| 21627-34080 |
12R,16R,18R..RT10#,11# |
1 | ||
| 21627-34080 |
16R,18R#..RT102,104,114,118 |
1 | ||
| 21641 - GASKET(FOR THERMOSTATIC VALVE COVER) | ||||
| 21641-23010 |
16R,18R#..RT102,104,114,118 |
1 | ||
| 21641-23010 |
12R,16R,18R..RT10#,11# |
1 | ||
| 21649 - GASKET(FOR PUMP DISCHARGE WEIGHT STOPPER) | ||||
| 21641-33011 |
12R,16R,18R..RT10#,11# |
1 | ||
| 21641-33011 |
12R#,16R,18R#..RT10#,11# |
1 | ||
| 21659 - RING, O(FOR THERMOSTATIC VALVE) | ||||
| 21641-24030 |
12R#,16R,18R#..RT10#,11# |
1 | ||
| 21641-24030 |
12R,16R,18R..RT10#,11# |
1 | ||
| 21699 - BOOT(FOR PUMP PLUNGER) | ||||
| 21699-21061 |
12R#,16R,18R#..RT10#,11# |
1 | ||
| 21699-21061 |
12R,16R,18R..RT10#,11# |
1 | ||
| 21722 - SPRING, PUMP DAMPING | ||||
| 21722-34060 |
16R,18R..RT102,104,112,114,117,118 |
1 | ||
| 21722-34060 |
16R,18R#..RT102,104,114,118 |
1 | ||
| 21734 - SPRING, POWER PISTON | ||||
| 21734-33081 |
12R,16R,18R..RT10#,11# |
1 | ||
| 21734-33081 |
12R#,16R,18R#..RT10#,11# |
1 | ||
| 21751 - UNION, NIPPLE | ||||
| 21751-33080 |
12R,16R,18R..RT10#,11# |
1 | ||
| 21751-34330 |
18R#..RT104,114,118 |
1 | ||
| 21763 - PIN, FLOAT LEVER | ||||
| 21763-29270 |
12R,16R,18R..RT10#,11# |
1 | ||
| 21763-21010 |
16R,18R#..RT102,104,114,118 |
1 | ||
| 21764 - PIN, PISTON(FOR VACUUM PISTON) | ||||
| 21764-40010 |
12R,16R,18R..RT10#,11# |
1 | ||
| 21764-40010 |
12R,16R,18R#..RT10#,11# |
1 | ||
| 21764-40010 |
16R,18R#..RT102,104,114,118 |
1 | ||
| 21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET) | ||||
| 21781-30020 |
12R#,16R,18R#..RT10#,11# |
2 | ||
| 21781-30020 |
12R,16R,18R..RT10#,11# |
2 | ||
| 21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET) | ||||
| 21781-30020 |
12R#,16R,18R#..RT10#,11# |
2 | ||
| 21781-30020 |
12R,16R,18R..RT10#,11# |
2 | ||
| 21827 - SCREW, CONNECTOR SET | ||||
| 21827-33010 |
16R,18R#..RT102,104,114,118 |
1 | ||
| 21827-33010 |
12R,16R,18R..RT10#,11# |
1 | ||
| 21827-33010 |
12R,16R,18R#..RT10#,11# |
1 | ||
| 21831 - SCREW, POWER PISTON STOP | ||||
| 21842-33010 |
12R,16R,18R..RT10#,11# |
1 | ||
| 21842-33010 |
12R#,16R,18R#..RT10#,11# |
1 | ||
| 21836 - SCREW, THERMOSTAT CASE SET | ||||
| 21832-44010 |
12R,16R,18R..RT10#,11# |
1 | ||
| 21832-44010 |
16R,18R#..RT102,104,114,118 |
1 | ||
| 21832-44010 |
12R,16R,18R#..RT10#,11# |
1 | ||
| 21837 - SCREW, COIL HOUSING SET | ||||
| 21842-33010 |
16R,18R#..RT102,104,114,118 |
3 | ||
| 21842-33010 |
12R,16R,18R#..RT10#,11# |
3 | ||
| 21842-33010 |
12R,16R,18R..RT10#,11# |
3 | ||
| 21842 - SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET) | ||||
| 21842-33010 |
12R,16R,18R..RT10#,11# |
2 | ||
| 21842-33010 |
12R#,16R,18R#..RT10#,11# |
2 | ||
| 21884 - WASHER, THERMOSTAT CASE SET | ||||
| 21885-44010 |
12R,16R,18R..RT10#,11# |
2 | ||
| 21885-44010 |
16R,18R#..RT102,104,114,118 |
2 | ||
| 21885-44010 |
12R,16R,18R#..RT10#,11# |
2 | ||
| 21884 - WASHER, THERMOSTAT CASE SET | ||||
| 21885-44010 |
12R,16R,18R..RT10#,11# |
2 | ||
| 21885-44010 |
16R,18R#..RT102,104,114,118 |
2 | ||
| 21885-44010 |
12R,16R,18R#..RT10#,11# |
2 | ||
| Common parts | ||||
| 21399-34190 | ||||
| 21821-25010 | ||||
| 21821-31140 | ||||
| 93210-16014 | ||||
| 93219-14018 | ||||
| 93219-15014 | ||||
| 94511-00300 | ||||
| 94511-00400 | ||||
| 94511-00500 | ||||

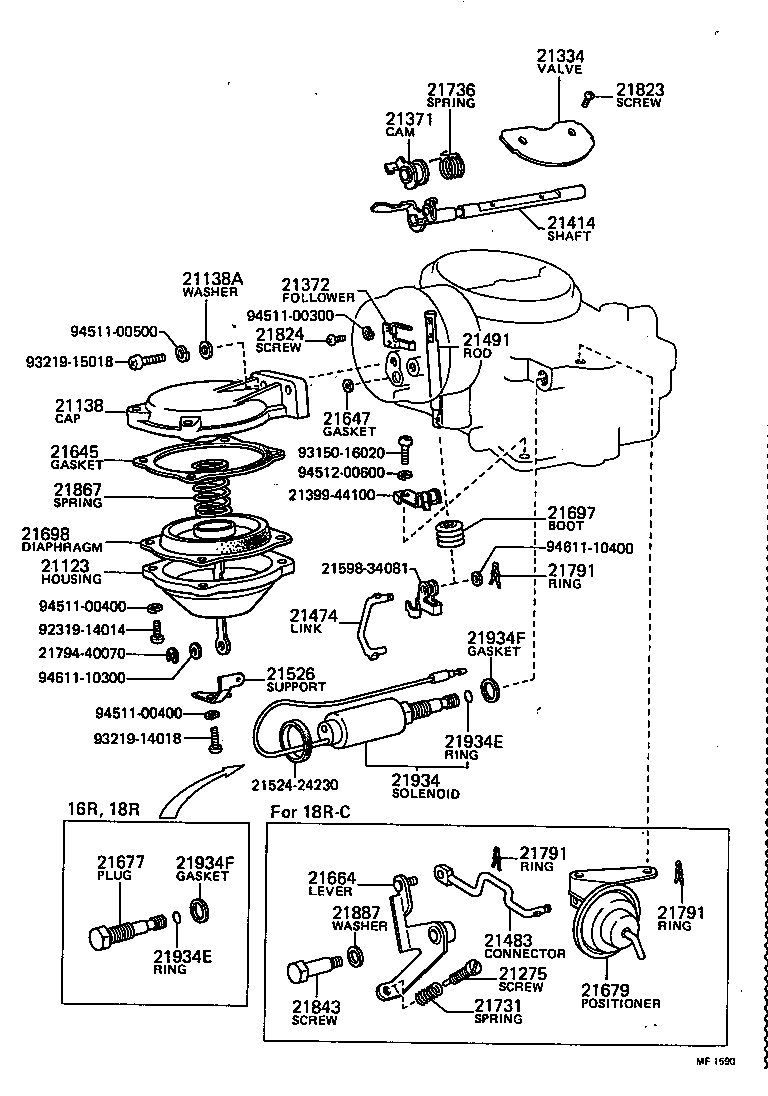

(7509-7606)18RC ; (7509-7701)16R,18R ; (7701-7905)16R,18R..RT102,104,114..SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 21123 - HOUSING, DIAPHRAGM | ||||
| 21123-44100 |
12R#,16R,18R#..RT10#,11# |
1 | ||
| 21123-44100 |
12R,16R,18R..RT10#,11# |
1 | ||
| 21138 - CAP, DIAPHRAGM | ||||
| 21138-44100 |
12R,16R,18R..RT10#,11# |
1 | ||
| 21138-34080 |
16R,18R..RT102,104,114,118 |
1 | ||
| 21138A - WASHER(FOR DIAPHRAGM CAP SET) | ||||
| 21885-44010 |
12R,16R,18R..RT10#,11# |
2 | ||
| 21885-44010 |
12R#,16R,18R#..RT10#,11# |
2 | ||
| 21334 - VALVE, CHOKE | ||||
| 21334-44011 |
16R,18R..RT102,104,112,114,117,118 |
1 | ||
| 21334-44011 |
16R,18R#..RT102,104,114,118 |
1 | ||
| 21371 - CAM, 1ST IDLE | ||||
| 21371-34081 |
16R,18R#..RT102,104,114,118 |
1 | ||
| 21371-34230 |
16R,18R..RT102,104,112,114,117,118 |
1 | ||
| 21372 - FOLLOWER, 1ST IDLE CAM | ||||
| 21372-44100 |
12R,16R,18R#..RT10#,11# |
1 | ||
| 21372-44100 |
12R,16R,18R..RT10#,11# |
1 | ||
| 21372-44100 |
16R,18R#..RT102,104,114,118 |
1 | ||
| 21414 - SHAFT, CHOKE | ||||
| 21414-34081 |
16R,18R#..RT102,104,114,118 |
1 | ||
| 21414-44100 |
16R,18R..RT102,104,112,114,117,118 |
1 | ||
| 21474 - LINK, CONNECTING | ||||
| 21474-44100 |
16R,18R..RT102,104,112,114,117,118 |
1 | ||
| 21474-34080 |
16R,18R#..RT102,104,114,118 |
1 | ||
| 21491 - ROD, SLIDING | ||||
| 21491-44100 |
12R,16R,18R..RT10#,11# |
1 | ||
| 21491-44100 |
16R,18R#..RT102,104,114,118 |
1 | ||
| 21491-44100 |
12R,16R,18R#..RT10#,11# |
1 | ||
| 21526 - SUPPORT, BACK SPRING | ||||
| 21526-44100 |
16R,18R..RT102,104,112,114,117,118 |
1 | ||
| 21526-44100 |
16R,18R#..RT102,104,114,118 |
1 | ||
| 21645 - GASKET, DIAPHRAGM, CAP | ||||
| 21645-33080 |
12R#,16R,18R#..RT10#,11# |
1 | ||
| 21645-33080 |
12R,16R,18R..RT10#,11# |
1 | ||
| 21647 - GASKET, DIAPHRAGM HOUSING CAP | ||||
| 21649-33080 |
12R#,16R,18R#..RT10#,11# |
1 | ||
| 21649-33080 |
12R,16R,18R..RT10#,11# |
1 | ||
| 21677 - PLUG | ||||
| 21677-42010 |
16R,18R..RT102,104,112,114,117,118 |
1 | ||
| 21677-42010 |
16R,18R..RT102,104,114,118 |
1 | ||
| 21697 - BOOT(FOR SLIDING ROD) | ||||
| 21699-33010 |
16R,18R#..RT102,104,114,118 |
1 | ||
| 21699-33010 |
12R,16R,18R#..RT10#,11# |
1 | ||
| 21699-33010 |
12R,16R,18R..RT10#,11# |
1 | ||
| 21698 - DIAPHRAGM | ||||
| 21669-44100 |
12R,16R,18R..RT10#,11# |
1 | ||
| 21669-34080 |
16R,18R#..RT102,104,114,118 |
1 | ||
| 21736 - SPRING, 1ST IDLE CAM | ||||
| 21736-40010 |
16R,18R#..RT102,104,114,118 |
1 | ||
| 21736-40010 |
12R,16R,18R..RT10#,11# |
1 | ||
| 21736-40010 |
12R,16R,18R#..RT10#,11# |
1 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
12R#,16R,18R#..RT10#,11# |
6 | ||
| 21791-60010 |
12R,16R,18R..RT10#,11# |
6 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
12R#,16R,18R#..RT10#,11# |
6 | ||
| 21791-60010 |
12R,16R,18R..RT10#,11# |
6 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
12R#,16R,18R#..RT10#,11# |
6 | ||
| 21791-60010 |
12R,16R,18R..RT10#,11# |
6 | ||
| 21823 - SCREW, CHOKE, VALVE SET | ||||
| 21822-34031 |
16R,18R..RT102,104,112,114,117,118 |
2 | ||
| 21822-34031 |
16R,18R#..RT102,104,114,118 |
2 | ||
| 21824 - SCREW, SET(FOR 1ST IDLE CAM FOLLOWER SET) | ||||
| 21824-33010 |
12R,16R,18R#..RT10#,11# |
2 | ||
| 21824-33010 |
12R,16R,18R..RT10#,11# |
2 | ||
| 21824-33010 |
16R,18R#..RT102,104,114,118 |
2 | ||
| 21867 - SPRING, DIAPHRAGM | ||||
| 21867-33080 |
18R#..RT104,114,118 |
1 | ||
| 21867-26040 |
16R,18R..RT102,104,112,114,117,118 |
1 | ||
| 21934E - RING, O(FOR SOLENOID VALVE) | ||||
| 21655-44101 |
12R,16R,18R..RT10#,11# |
1 | ||
| 21655-44101 |
12R#,16R,18R#..RT10#,11# |
1 | ||
| 21934E - RING, O(FOR SOLENOID VALVE) | ||||
| 21655-44101 |
12R,16R,18R..RT10#,11# |
1 | ||
| 21655-44101 |
12R#,16R,18R#..RT10#,11# |
1 | ||
| 21934F - GASKET | ||||
| 21617-10010 |
12R,16R,18R..RT10#,11# |
1 | ||
| 21617-10010 |
12R#,16R,18R#..RT10#,11# |
1 | ||
| 21934F - GASKET | ||||
| 21617-10010 |
12R,16R,18R..RT10#,11# |
1 | ||
| 21617-10010 |
12R#,16R,18R#..RT10#,11# |
1 | ||
| Common parts | ||||
| 21399-44100 | ||||
| 21524-24230 | ||||
| 21598-34081 | ||||
| 21794-40070 | ||||
| 92319-14014 | ||||
| 93150-16020 | ||||
| 93219-14018 | ||||
| 93219-15018 | ||||
| 94511-00300 | ||||
| 94511-00400 | ||||
| 94511-00500 | ||||
| 94512-00600 | ||||
| 94611-10300 | ||||
| 94611-10400 | ||||
(7509-7606)18RC ; (7509-7701)16R,18R ; (7701-7905)16R,18R..RT102,104,114..SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

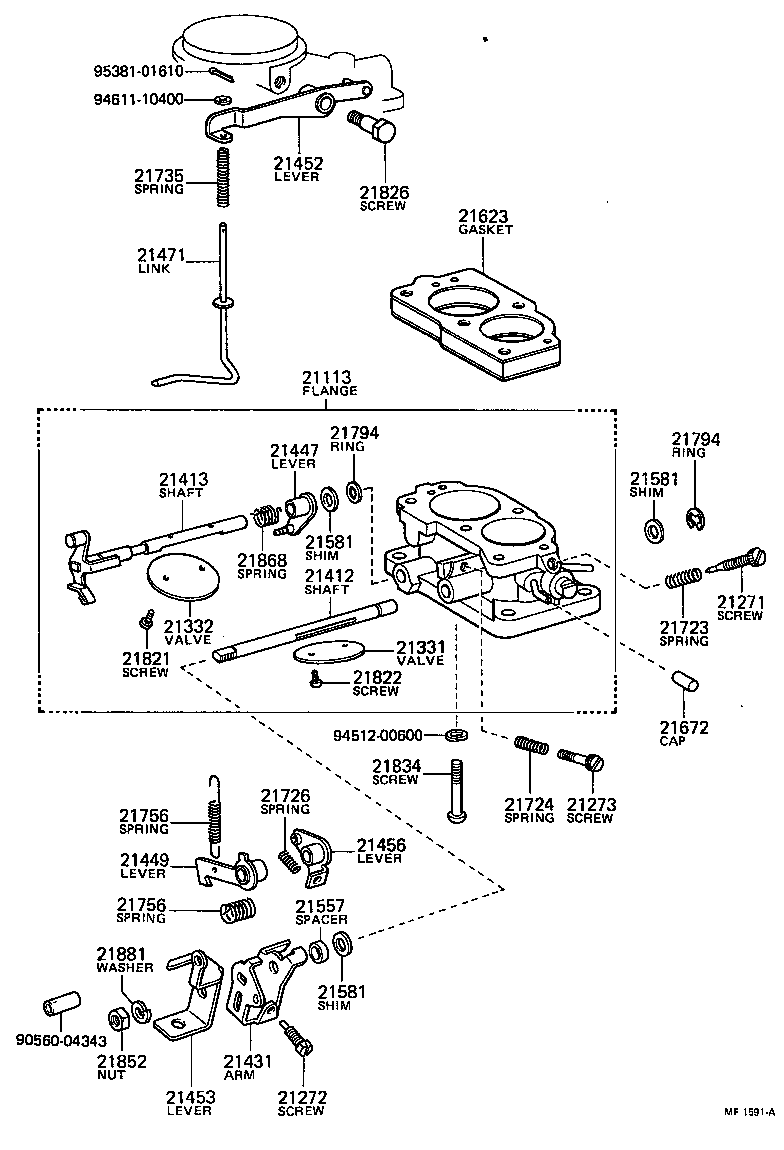

| 21113 - FLANGE, CARBURETOR | ||||
| 21113-34132 |
16R,18R..RT102,104,112,114,117,118 |
1 | ||
| 21103-34300 |
16R,18R..RT102,104,114,118 |
1 | ||
| 21271 - SCREW, IDLE ADJUSTING | ||||
| 21271-34080 |
16R,18R..RT102,104,114,118 |
1 | ||
| 21271-31140 |
12R,16R,18R..RT10#,11# |
1 | ||
| 21271-34350 |
18R..RT104,118 E.C.E.NO.15 |
1 | ||
| 21272 - SCREW, 1ST IDLE ADJUSTING | ||||
| 21814-33010 |
12R,16R,18R#..RT10#,11# |
1 | ||
| 21814-33010 |
12R,16R,18R..RT10#,11# |
1 | ||
| 21814-33010 |
16R,18R#..RT102,104,114,118 |
1 | ||
| 21273 - SCREW, THROTTLE ADJUSTING | ||||
| 21844-33010 |
12R#,16R,18R#..RT10#,11# |
1 | ||
| 21844-33010 |
12R,16R,18R..RT10#,11# |
1 | ||
| 21273-31100 |
18R#..RT104,114,118..ARL,EUR,GEN |
1 | ||
| 21331 - VALVE, 1ST THROTTLE | ||||
| 21331-34030 |
16R,18R#..RT102,104,114,118 |
1 | ||
| 21331-34030 |
16R,18R..RT102,104,112,114,117,118 |
1 | ||
| 21332 - VALVE, 2ND THROTTLE | ||||
| 21332-34031 |
16R,18R#..RT102,104,114,118 |
1 | ||
| 21332-34031 |
16R,18R..RT102,104,112,114,117,118 |
1 | ||
| 21412 - SHAFT, 1ST THROTTLE | ||||
| 21412-34033 |
16R,18R..RT102,104,112,114,117,118 |
1 | ||
| 21412-34033 |
16R,18R#..RT102,104,114,118 |
1 | ||
| 21413 - SHAFT, 2ND THROTTLE | ||||
| 21413-34032 |
16R,18R..RT102,104,112,114,117,118 |
1 | ||
| 21413-34032 |
16R,18R#..RT102,104,114,118 |
1 | ||
| 21431 - ARM, 1ST THROTTLE SHAFT | ||||
| 21431-44100 |
16R,18R..RT102,104,112,114,117,118 |
1 | ||
| 21431-44100 |
16R,18R..RT102,104,114,118 |
1 | ||
| 21447 - LEVER, DIAPHRAGM | ||||
| 21447-44100 |
12R,16R,18R..RT10#,11# |
1 | ||
| 21447-44100 |
12R#,16R,18R#..RT10#,11# |
1 | ||
| 21449 - LEVER, 2ND KICK | ||||
| 21449-44101 |
16R,18R#..RT102,104,114,118 |
1 | ||
| 21449-44101 |
16R,18R..RT102,104,112,114,117,118 |
1 | ||
| 21452 - LEVER, PUMP | ||||
| 21452-44100 |
16R,18R#..RT102,104,114,118 |
1 | ||
| 21452-44100 |
16R,18R..RT102,104,112,114,117,118 |
1 | ||
| 21453 - LEVER, 1ST THROTTLE | ||||
| 21453-34231 |
16R,18R..RT102,104,112,114,117,118 |
1 | ||
| 21453-34231 |
16R,18R#..RT102,104,114,118 |
1 | ||
| 21455-36110 |
18R#..RT104,114,118..ARL,EUR,GEN |
1 | ||
| 21456 - LEVER, 1ST THROTTLE IDLE ADJUSTING, NO.1 | ||||
| 21456-44100 |
16R,18R..RT102,104,112,114,117,118 |
1 | ||
| 21456-44100 |
16R,18R#..RT102,104,114,118 |
1 | ||
| 21471 - LINK, PUMP CONNECTING | ||||
| 21471-44100 |
16R,18R..RT102,104,112,114,117,118 |
1 | ||
| 21471-34081 |
16R,18R#..RT102,104,114,118 |
1 | ||
| 21557 - SPACER(FOR 1ST IDLE CAM) | ||||
| 21557-44100 |
16R,18R..RT102,104,112,114,117,118 |
1 | ||
| 21557-44100 |
16R,18R#..RT102,104,114,118 |
1 | ||
| 21581 - SHIM, 1ST THROTTLE SHAFT | ||||
| 21581-41010 |
16R,18R..RT102,104,112,114,117,118 T=0.1 |
1 | ||
| 21581-41010 |
16R,18R#..RT102,104,114,118 T=0.1 |
1 | ||
| 21583-41010 |
16R,18R..RT102,104,112,114,117,118 T=0.3 |
1 | ||
| 21581-32010 |
16R,18R#..RT102,104,114,118 T=0.2 |
1 | ||
| 21581-32010 |
16R,18R..RT102,104,112,114,117,118 T=0.2 |
1 | ||
| 21583-41010 |
16R,18R#..RT102,104,114,118 T=0.3 |
1 | ||
| 21583-32010 |
16R,18R..RT102,104,112,114,117,118 T=0.6 |
1 | ||
| 21583-32010 |
16R,18R#..RT102,104,114,118 T=0.6 |
1 | ||
| 21581 - SHIM, 1ST THROTTLE SHAFT | ||||
| 21581-41010 |
16R,18R..RT102,104,112,114,117,118 T=0.1 |
1 | ||
| 21581-41010 |
16R,18R#..RT102,104,114,118 T=0.1 |
1 | ||
| 21583-41010 |
16R,18R..RT102,104,112,114,117,118 T=0.3 |
1 | ||
| 21581-32010 |
16R,18R#..RT102,104,114,118 T=0.2 |
1 | ||
| 21581-32010 |
16R,18R..RT102,104,112,114,117,118 T=0.2 |
1 | ||
| 21583-41010 |
16R,18R#..RT102,104,114,118 T=0.3 |
1 | ||
| 21583-32010 |
16R,18R..RT102,104,112,114,117,118 T=0.6 |
1 | ||
| 21583-32010 |
16R,18R#..RT102,104,114,118 T=0.6 |
1 | ||
| 21581 - SHIM, 1ST THROTTLE SHAFT | ||||
| 21581-41010 |
16R,18R..RT102,104,112,114,117,118 T=0.1 |
1 | ||
| 21581-41010 |
16R,18R#..RT102,104,114,118 T=0.1 |
1 | ||
| 21583-41010 |
16R,18R..RT102,104,112,114,117,118 T=0.3 |
1 | ||
| 21581-32010 |
16R,18R#..RT102,104,114,118 T=0.2 |
1 | ||
| 21581-32010 |
16R,18R..RT102,104,112,114,117,118 T=0.2 |
1 | ||
| 21583-41010 |
16R,18R#..RT102,104,114,118 T=0.3 |
1 | ||
| 21583-32010 |
16R,18R..RT102,104,112,114,117,118 T=0.6 |
1 | ||
| 21583-32010 |
16R,18R#..RT102,104,114,118 T=0.6 |
1 | ||
| 21623 - GASKET, BODY FLANGE | ||||
| 21623-44012 |
16R,18R..RT102,104,112,114,117,118 |
1 | ||
| 21623-34080 |
16R,18R#..RT102,104,114,118 |
1 | ||
| 21672 - CAP | ||||
| 21672-31140 |
12R#,16R,18R#..RT10#,11# |
1 | ||
| 21672-31140 |
12R,16R,18R..RT10#,11# |
1 | ||
| 21723 - SPRING, IDLE ADJUSTING | ||||
| 21723-21030 |
12R,16R,18R..RT10#,11# |
1 | ||
| 21723-21030 |
12R#,16R,18R#..RT10#,11# |
1 | ||
| 21724 - SPRING, THROTTLE ADJUSTING | ||||
| 21724-30010 |
16R,18R#..RT102,104,114,118 |
1 | ||
| 21724-30010 |
16R,18R..RT102,104,112,114,117,118 |
1 | ||
| 21726 - SPRING, 1ST IDLE ADJUSTING | ||||
| 21726-40010 |
12R,16R,18R#..RT10#,11# |
1 | ||
| 21726-40010 |
12R,16R,18R..RT10#,11# |
1 | ||
| 21726-40010 |
16R,18R#..RT102,104,114,118 |
1 | ||
| 21735 - SPRING, PUMP ARM | ||||
| 21735-22010 |
16R,18R..RT102,104,112,114,117,118 |
1 | ||
| 21735-22010 |
16R,18R#..RT102,104,114,118 |
1 | ||
| 21756 - SPRING, BACK(FOR THROTTLE SHAFT) | ||||
| 21756-34081 |
16R,18R#..RT102,104,114,118 WD=1.0,CW=20.25 |
1 | ||
| 21756-34240 |
16R,18R#..RT102,104,114,118 WD=1.1,CW=11.75 |
1 | ||
| 21756-34030 |
16R,18R..RT102,104,112,114,117,118 |
1 | ||
| 21756 - SPRING, BACK(FOR THROTTLE SHAFT) | ||||
| 21756-34081 |
16R,18R#..RT102,104,114,118 WD=1.0,CW=20.25 |
1 | ||
| 21756-34240 |
16R,18R#..RT102,104,114,118 WD=1.1,CW=11.75 |
1 | ||
| 21756-34030 |
16R,18R..RT102,104,112,114,117,118 |
1 | ||
| 21794 - RING, RETAINER, NO.1(FOR THROTTLE SHAFT) | ||||
| 21795-41010 |
16R,18R..RT102,104,112,114,117,118 1ST |
1 | ||
| 21794-40010 |
16R,18R#..RT102,104,114,118 2ND |
1 | ||
| 21794-40010 |
16R,18R..RT102,104,112,114,117,118 2ND |
1 | ||
| 21795-41010 |
16R,18R#..RT102,104,114,118 1ST |
1 | ||
| 21794 - RING, RETAINER, NO.1(FOR THROTTLE SHAFT) | ||||
| 21795-41010 |
16R,18R..RT102,104,112,114,117,118 1ST |
1 | ||
| 21794-40010 |
16R,18R#..RT102,104,114,118 2ND |
1 | ||
| 21794-40010 |
16R,18R..RT102,104,112,114,117,118 2ND |
1 | ||
| 21795-41010 |
16R,18R#..RT102,104,114,118 1ST |
1 | ||
| 21821 - SCREW, 2ND THROTTLE VALVE SET | ||||
| 21821-34031 |
12R#,16R,18R#..RT10#,11# |
2 | ||
| 21821-34031 |
12R,16R,18R..RT10#,11# |
2 | ||
| 21822 - SCREW, 1ST THROTTLE VALVE SET | ||||
| 21822-44101 |
12R,16R,18R..RT10#,11# |
2 | ||
| 21822-44101 |
12R#,16R,18R#..RT10#,11# |
2 | ||
| 21826 - SCREW, PUMP ARM SET | ||||
| 21826-31012 |
16R,18R#..RT102,104,114,118 |
1 | ||
| 21826-31012 |
16R,18R..RT102,104,112,114,117,118 |
1 | ||
| 21834 - SCREW, SET, NO.2(FOR CARBURETOR BODY SET) | ||||
| 21834-34030 |
16R,18R..RT102,104,112,114,117,118 |
1 | ||
| 21834-34080 |
16R,18R#..RT102,104,114,118 |
1 | ||
| 21852 - NUT, THROTTLE LEVER SET | ||||
| 21852-30010 |
12R,16R,18R..RT10#,11# |
3 | ||
| 21852-30010 |
12R#,16R,18R#..RT10#,11# |
3 | ||
| 21868 - SPRING, DIAPHRAGM RELIEF | ||||
| 21868-33080 |
12R#,16R,18R#..RT10#,11# |
1 | ||
| 21868-33080 |
12R,16R,18R..RT10#,11# |
1 | ||
| 21881 - WASHER, LOCK(FOR THROTTLE SHAFT) | ||||
| 21881-60010 |
12R,16R,18R..RT10#,11# |
3 | ||
| 21881-60010 |
12R#,16R,18R#..RT10#,11# |
3 | ||
| Common parts | ||||
| 90560-04343 | ||||
| 94512-00600 | ||||
| 94611-10400 | ||||
| 95381-01610 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
