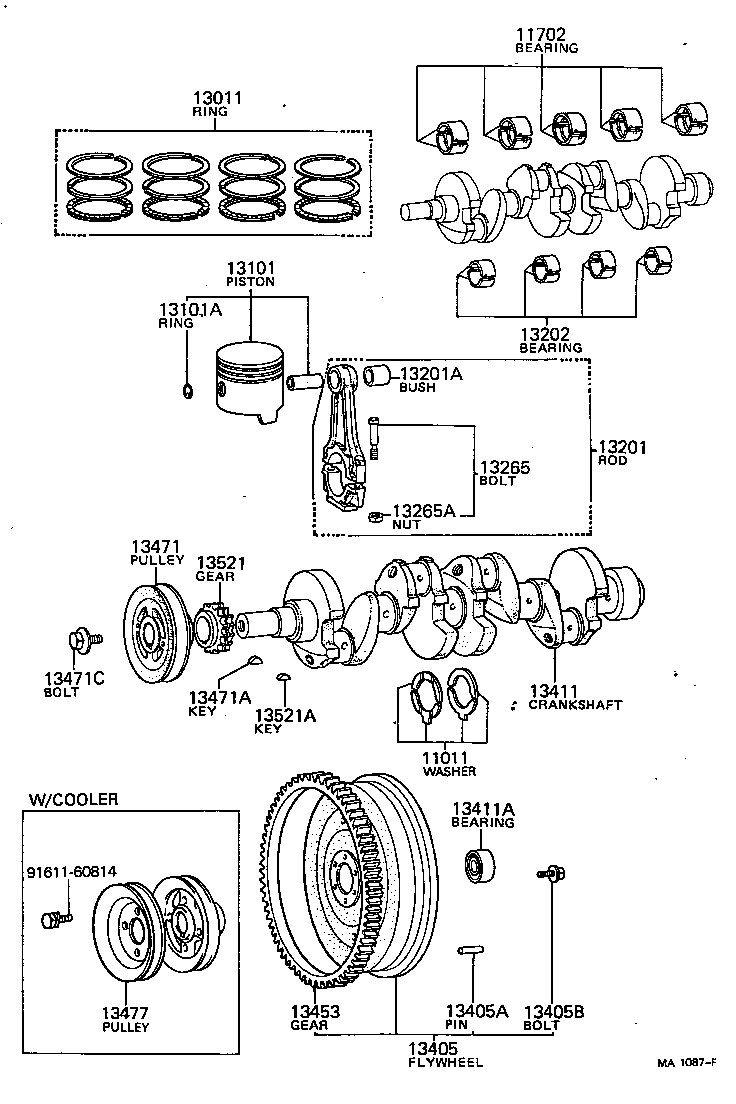

Toyota Corona RT104 CRANKSHAFT & PISTON

Part #	Description	Period	Qty
11702 - BEARING SET, CRANKSHAFT
11704-33011	16R,18R..RT102,104,112,114,117,118 U/S 0.25	08/1973 - 09/1975	1
11707-33011	16R,18R..RT102,104,112,114,117,118 U/S 1.00	08/1973 - 09/1975	1
11702-33011	16R,18R#..RT102,104,114,118 STD	09/1975 - 01/1977	1
11705-33011	16R,18R#..RT102,104,114,118 U/S 0.50	09/1975 - 01/1977	1
11702-33011	16R,18R..RT102,104,112,114,117,118 STD	08/1973 - 09/1975	1
11705-33011	16R,18R..RT102,104,112,114,117,118 U/S 0.50	08/1973 - 09/1975	1
11704-33011	16R,18R#..RT102,104,114,118 U/S 0.25	09/1975 - 01/1977	1
11706-33011	16R,18R..RT102,104,112,114,117,118 U/S 0.75	08/1973 - 09/1975	1
13011 - RING SET, PISTON
13011-34022	16R,18R..RT102,104,112,114,117,118 STD	08/1973 - 09/1975	1
13012-34022	16R,18R..RT102,104,112,114,117,118 O/S 0.25	08/1973 - 09/1975	1
13014-34022	16R,18R..RT102,104,112,114,117,118 O/S 0.75	08/1973 - 09/1975	1
13013-34022	16R,18R..RT102,104,112,114,117,118 O/S 0.50	08/1973 - 09/1975	1
13011-34022	16R,18R#..RT102,104,114,118 STD	09/1975 - 01/1977	1
13015-34022	16R,18R..RT102,104,112,114,117,118 O/S 1.00	08/1973 - 09/1975	1
13015-34022	16R,18R#..RT102,104,114,118 O/S 1.00	09/1975 - 01/1977	1
13013-34023	16R,18R#..RT102,104,114,118 O/S 0.50	01/1977 - 04/1977	1
13011-34023	16R,18R#..RT102,104,114,118 STD	01/1977 - 04/1977	1
13015-34023	16R,18R#..RT102,104,114,118 O/S 1.00	01/1977 - 04/1977	1
13013-34022	16R,18R#..RT102,104,114,118 O/S 0.50	09/1975 - 01/1977	1
13101 - PISTON SUB-ASSY, W/PIN
13102-34010	18R..RT104,114,118 O/S 0.25	08/1973 - 09/1975	4
13101-34010	18R..RT104,114,118 STD	08/1973 - 09/1975	4
13104-34010	18R..RT104,114,118 O/S 0.75	08/1973 - 09/1975	4
13105-34010	18R..RT104,114,118 0/S 1.00	08/1973 - 09/1975	4
13105-34010	16R,18R#..RT102,104,114,118 O/S 1.00	09/1975 - 05/1976	4
13104-34010	16R,18R#..RT102,104,114,118 O/S 0.75	09/1975 - 05/1976	4
13101-34010	16R,18R#..RT102,104,114,118 STD	09/1975 - 05/1976	4
13102-34010	16R,18R#..RT102,104,114,118 O/S 0.25	09/1975 - 05/1976	4
13103-34030	16R,18R#..RT102,104,114,118 O/S 0.50	05/1976 - 03/1977	4
13103-34010	16R,18R#..RT102,104,114,118 O/S 0.50	09/1975 - 05/1976	4
13105-34030	16R,18R#..RT102,104,114,118 O/S 1.00	05/1976 - 03/1977	4
13103-34010	18R..RT104,114,118 O/S 0.50	08/1973 - 09/1975	4
13101-34030	16R,18R#..RT102,104,114,118 STD	05/1976 - 03/1977	4
13101A - RING, HOLE SNAP(FOR PISTON PIN)
90521-25105	16R,18R..RT102,104,112,114,117,118	08/1973 - 09/1975	8
13201 - ROD SUB-ASSY, CONNECTING
13201-34012	18R..RT104,114,118	08/1973 - 09/1975	4
13201A - BUSH(FOR CONNECTING ROD SMALL END)
90999-73048	16R,18R..RT102,104,112,114,117,118	08/1973 - 09/1975	4
13202 - BEARING SET, CONNECTING ROD
13205-33011	16R,18R..RT102,104,112,114,117,118 U/S 0.50	08/1973 - 09/1975	1
13202-33011	16R,18R..RT102,104,112,114,117,118 STD	08/1973 - 09/1975	1
13204-33011	16R,18R..RT102,104,112,114,117,118 U/S 0.25	08/1973 - 09/1975	1
13206-33011	16R,18R..RT102,104,112,114,117,118 U/S 0.75	08/1973 - 09/1975	1
13207-33011	16R,18R..RT102,104,112,114,117,118 U/S 1.00	08/1973 - 09/1975	1
13265 - BOLT, CONNECTING ROD
13265-39025	16R,18R..RT102,104,112,114,117,118	08/1973 - 09/1975	8
13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT)
90170-10198	16R,18R..RT102,104,112,114,117,118	08/1973 - 09/1975	8
13411 - CRANKSHAFT
13411-34903	18R..RT104,114,118	08/1973 - 09/1975	1
13411-34903	18R#..RT104,114,118	09/1975 - 07/1978	1
13471 - PULLEY, CRANKSHAFT
13471-34012	16R,18R#..RT102,104,114,118	09/1975 - 01/1977	1
13471-34012	16R,18R..RT102,104,112,117,118..ARL,EUR,GEN	08/1973 - 04/1974	1
13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
90280-05010	12R,16R,18R..RT10#,11#	08/1973 - 11/1974	1
13471C - BOLT(FOR CRANKSHAFT PULLEY SET)
90105-14048	16R,18R#..RT102,104,114,118	09/1975 - 02/1977	1
90105-14048	16R,18R..RT102,104,112,114,117,118	08/1973 - 09/1975	1
13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING
13521-33010	16R,18R..RT102,104,112,114,117,118 N=18	08/1973 - 09/1975	1
13521A - KEY(FOR CRANKSHAFT TIMING GEAR)
90280-05010	12R,16R,18R..RT10#,11#	08/1973 - 11/1974	1
Common parts
91611-60814

RT104-HRF (1975)

(7308-7905)16R,18R#
