RT104-HDF (1975)

Toyota Corona

Production Sep 1975 - Aug 1978
Engine 18R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7308-7905)RT10#,116,117,118

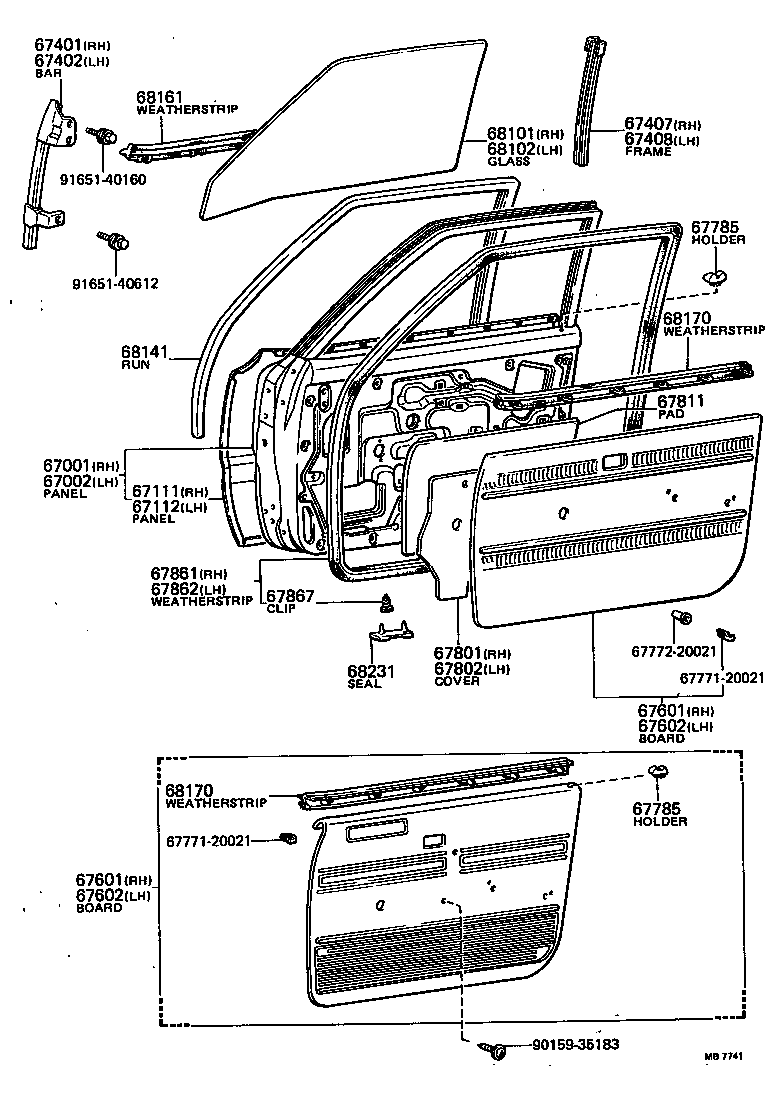

Click highlighted areas on diagram

diagram 67001 67002 67111 67112 67401 67402 67407 67408 67601 67601 67602 67602 6777120021 6777120021 6777220021 67785 67785 67801 67802 67811 67861 67862 67867 68101 68102 68141 68161 68170 68170 68231 9015935183 9165140160 9165140612
Part # Description Qty Price
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-20102

RT104..RHD

 1
67001-20100

RT10#,116,117,118..EUR,GEN,PHL,SA

 1
67001-20102

RT100,104..GEN,PHL

 1
67001-20100

RT100,104,116,118..EUR,GEN,PHL

 1
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-20111

RT10#,116,118

 1
67002-20110

RT10#,116,117,118..4D

 1
67002-20111

RT10#,116,118..EUR,GEN,PHL,SA

 1
67002-20112

RT100,104..GEN,PHL

 1
67111 - PANEL, FRONT DOOR, OUTER RH
67111-20070

RT10#,116,117,118

 1
67112 - PANEL, FRONT DOOR, OUTER LH
67112-20110

RT10#,116,117,118

 1
67401 - BAR SUB-ASSY, FRONT DOOR WINDOW, FRONT RH
67401-20060

RT10#,116,117,118..4D

 1
67402 - BAR SUB-ASSY, FRONT DOOR WINDOW, FRONT LH
67402-20050

RT10#,116,117,118..4D

 1
67407 - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67407-20050

RT10#,116,117,118..4D

 1
67408 - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67408-20040

RT10#,116,117,118..4D

 1
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-2036004

RT100,104..DLX

BLUE,BLUE,TRIM8#

 1
67610-2036003

RT100,104..DLX

GRAY,GRAY,TRIM1#

 1
67610-2036001

RT104..3FC..DLX;RT100,104..MTM..DLX..(GEN,SA)

BLACK,BLACK,TRIM2#

 1
67610-2041006

RT104..3FC..SA;RT102,104..DLX..(EUR,GEN)

OLIVE-BROWN,BROWN,TRIM4#

 1
67610-2036006

RT104..3FC..DLX;RT100,104..MTM..DLX..(GEN,SA)

OLIVE-BROWN,BROWN,TRIM4#

 1
67610-2041001

RT104..3FC..SA;RT102,104..DLX..(EUR,GEN)

BLACK,BLACK,TRIM2#

 1
67610-2041106

RT104..3FC..SA;RT104..DLX..(EUR,GEN)

OLIVE-BROWN,BROWN,TRIM4#

 1
67610-2041101

RT104..3FC..SA;RT104..DLX..(EUR,GEN)

BLACK,BLACK,TRIM2#

 1
67610-2041105

RT104..3FC..SA;RT104..DLX..(EUR,GEN)

BEIGE,BEIGE,TRIM4#

 1
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-2036004

RT100,104..DLX

BLUE,BLUE,TRIM8#

 1
67610-2036003

RT100,104..DLX

GRAY,GRAY,TRIM1#

 1
67610-2036001

RT104..3FC..DLX;RT100,104..MTM..DLX..(GEN,SA)

BLACK,BLACK,TRIM2#

 1
67610-2041006

RT104..3FC..SA;RT102,104..DLX..(EUR,GEN)

OLIVE-BROWN,BROWN,TRIM4#

 1
67610-2036006

RT104..3FC..DLX;RT100,104..MTM..DLX..(GEN,SA)

OLIVE-BROWN,BROWN,TRIM4#

 1
67610-2041001

RT104..3FC..SA;RT102,104..DLX..(EUR,GEN)

BLACK,BLACK,TRIM2#

 1
67610-2041106

RT104..3FC..SA;RT104..DLX..(EUR,GEN)

OLIVE-BROWN,BROWN,TRIM4#

 1
67610-2041101

RT104..3FC..SA;RT104..DLX..(EUR,GEN)

BLACK,BLACK,TRIM2#

 1
67610-2041105

RT104..3FC..SA;RT104..DLX..(EUR,GEN)

BEIGE,BEIGE,TRIM4#

 1
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-2034004

RT100,104..DLX

BLUE,BLUE,TRIM8#

 1
67620-2034001

RT104..3FC..DLX;RT100,104..MTM..DLX..(GEN,SA)

BLACK,BLACK,TRIM2#

 1
67620-2031001

RT104..3FC..SA;RT102,104..DLX..(EUR,GEN)

BLACK,BLACK,TRIM2#

 1
67620-2034006

RT104..3FC..DLX;RT100,104..MTM..DLX..(GEN,SA)

OLIVE-BROWN,BROWN,TRIM4#

 1
67620-2034003

RT100,104..DLX

GRAY,GRAY,TRIM1#

 1
67620-2031006

RT104..3FC..SA;RT102,104..DLX..(EUR,GEN)

OLIVE-BROWN,BROWN,TRIM4#

 1
67620-2031106

RT104..3FC..SA;RT104..DLX..(EUR,GEN)

OLIVE-BROWN,BROWN,TRIM4#

 1
67620-2031101

RT104..3FC..SA;RT104..DLX..(EUR,GEN)

BLACK,BLACK,TRIM2#

 1
67620-2031105

RT104..3FC..SA;RT104..DLX..(EUR,GEN)

BEIGE,BEIGE,TRIM4#

 1
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-2034004

RT100,104..DLX

BLUE,BLUE,TRIM8#

 1
67620-2034001

RT104..3FC..DLX;RT100,104..MTM..DLX..(GEN,SA)

BLACK,BLACK,TRIM2#

 1
67620-2031001

RT104..3FC..SA;RT102,104..DLX..(EUR,GEN)

BLACK,BLACK,TRIM2#

 1
67620-2034006

RT104..3FC..DLX;RT100,104..MTM..DLX..(GEN,SA)

OLIVE-BROWN,BROWN,TRIM4#

 1
67620-2034003

RT100,104..DLX

GRAY,GRAY,TRIM1#

 1
67620-2031006

RT104..3FC..SA;RT102,104..DLX..(EUR,GEN)

OLIVE-BROWN,BROWN,TRIM4#

 1
67620-2031106

RT104..3FC..SA;RT104..DLX..(EUR,GEN)

OLIVE-BROWN,BROWN,TRIM4#

 1
67620-2031101

RT104..3FC..SA;RT104..DLX..(EUR,GEN)

BLACK,BLACK,TRIM2#

 1
67620-2031105

RT104..3FC..SA;RT104..DLX..(EUR,GEN)

BEIGE,BEIGE,TRIM4#

 1
67785 - HOLDER, FRONT DOOR LOCKING BUTTON COLLAR
67785-22010

RT104..3FC..SA;RT102,104..DLX..(EUR,GEN)

FULL TRIM

 2
69751-20040

RT104..3FC..SA;RT104..DLX..(EUR,GEN)

FULL TRIM

 2
67785 - HOLDER, FRONT DOOR LOCKING BUTTON COLLAR
67785-22010

RT104..3FC..SA;RT102,104..DLX..(EUR,GEN)

FULL TRIM

 2
69751-20040

RT104..3FC..SA;RT104..DLX..(EUR,GEN)

FULL TRIM

 2
67801 - COVER SUB-ASSY, FRONT DOOR HOLE, NO.1 RH
67831-20110

RT10#,116,117,118..4D

 1
67802 - COVER SUB-ASSY, FRONT DOOR HOLE, NO.1 LH
67831-20110

RT10#,116,117,118..4D

 1
67811 - PAD, FRONT DOOR SILENCER
67811-20050

RT10#,116,117,118..4D

 2
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-20090

RT10#,116,117,118..4D

 1
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-20090

RT10#,116,117,118..4D

 1
67867 - CLIP, DOOR WEATHERSTRIP
67867-12020

RT10#,116,117,118

 40
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68111-20140

RT100,104..EUR,GEN,PHL,SA

TN.TP.T=4.0

 1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68112-20060

RT100,104..EUR,GEN,PHL,SA

TN.TP.T=4.0

 1
68141 - RUN, FRONT DOOR GLASS
68141-20030

RT10#,116,117,118..4D

 2
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68220-20020

RT104..3FC..SA;RT102,104..DLX..(EUR,GEN)

LH.

 1
68170-20060

RT104..3FC..SA;RT102,104..DLX..(EUR,GEN)

RH.

 1
68170-20061

RT104..3FC..SA;RT104..DLX..(EUR,GEN)

 1
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68220-20020

RT104..3FC..SA;RT102,104..DLX..(EUR,GEN)

LH.

 1
68170-20060

RT104..3FC..SA;RT102,104..DLX..(EUR,GEN)

RH.

 1
68170-20061

RT104..3FC..SA;RT104..DLX..(EUR,GEN)

 1
68231 - SEAL, FRONT DOOR DRAIN HOLE DUST
68231-30020

RT10#,11#

 4
Common parts
67771-20021
67772-20021
90159-35183
91651-40160
91651-40612
