RT104-HDF (1975)

Toyota Corona

Production Sep 1975 - Aug 1978
Engine 18R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7308-7905)

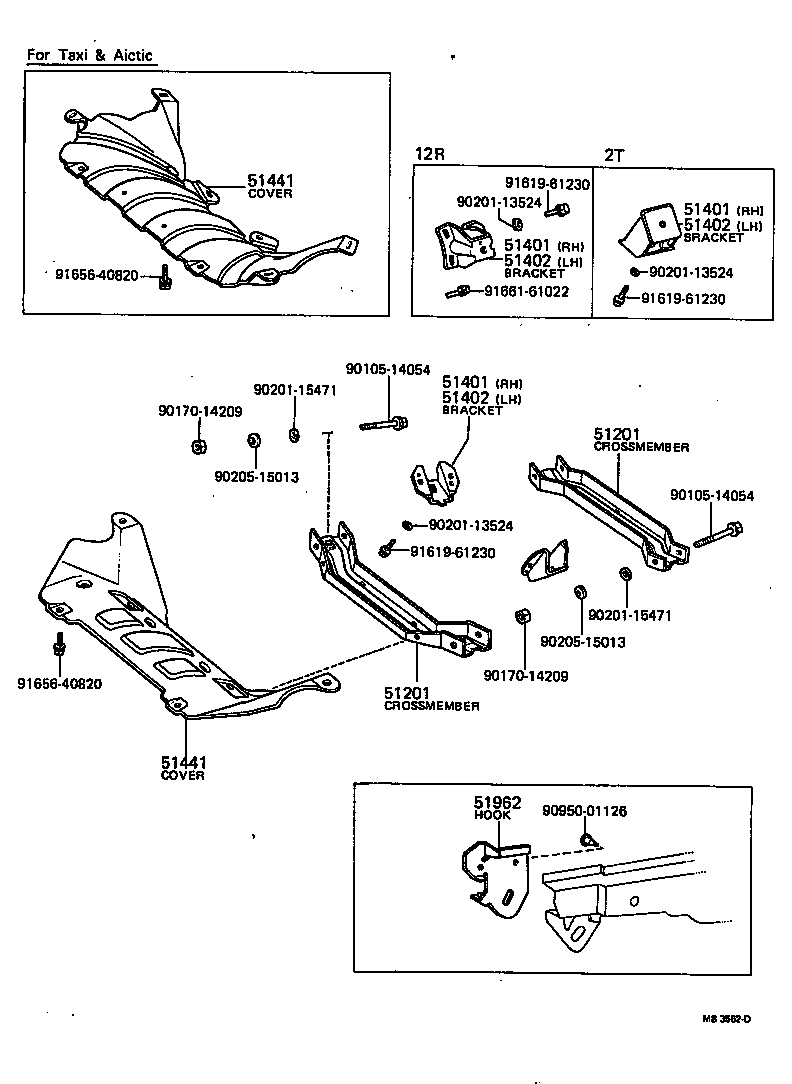

Click highlighted areas on diagram

diagram 51201 51201 51401 51401 51401 51402 51402 51402 51441 51441 51962 9010514054 9010514054 9017014209 9017014209 9020113524 9020113524 9020113524 9020115471 9020115471 9020515013 9020515013 9095001126 9161961230 9161961230 9161961230 9165640820 9165640820 9166161022
Part # Description Qty Price
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51222-20010

RT10#,11#

FOR FRONT

 1
51223-20010

RT10#,11#

FOR REAR

 1
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51222-20010

RT10#,11#

FOR FRONT

 1
51223-20010

RT10#,11#

FOR REAR

 1
51441 - COVER, ENGINE UNDER, NO.1
51441-20050

RT10#,11#

 1
51441 - COVER, ENGINE UNDER, NO.1
51441-20050

RT10#,11#

 1
51962 - HOOK, NO.2
51963-20030

RT10#,11#

RH.

 1
51964-20030

RT10#,11#

LH.

 1
Common parts
90105-14054
90170-14209
90201-13524
90201-15471
90205-15013
90950-01126
91619-61230
91656-40820
91661-61022
