RT102L-MDFW (1973)

Toyota Corona

Production Nov 1973 - Sep 1975
Engine 16R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7308-7509)RT102,104,112,117,118..LHD ; (7509-7905)LHD..GEN ; (7509-7905)LHD..EUG

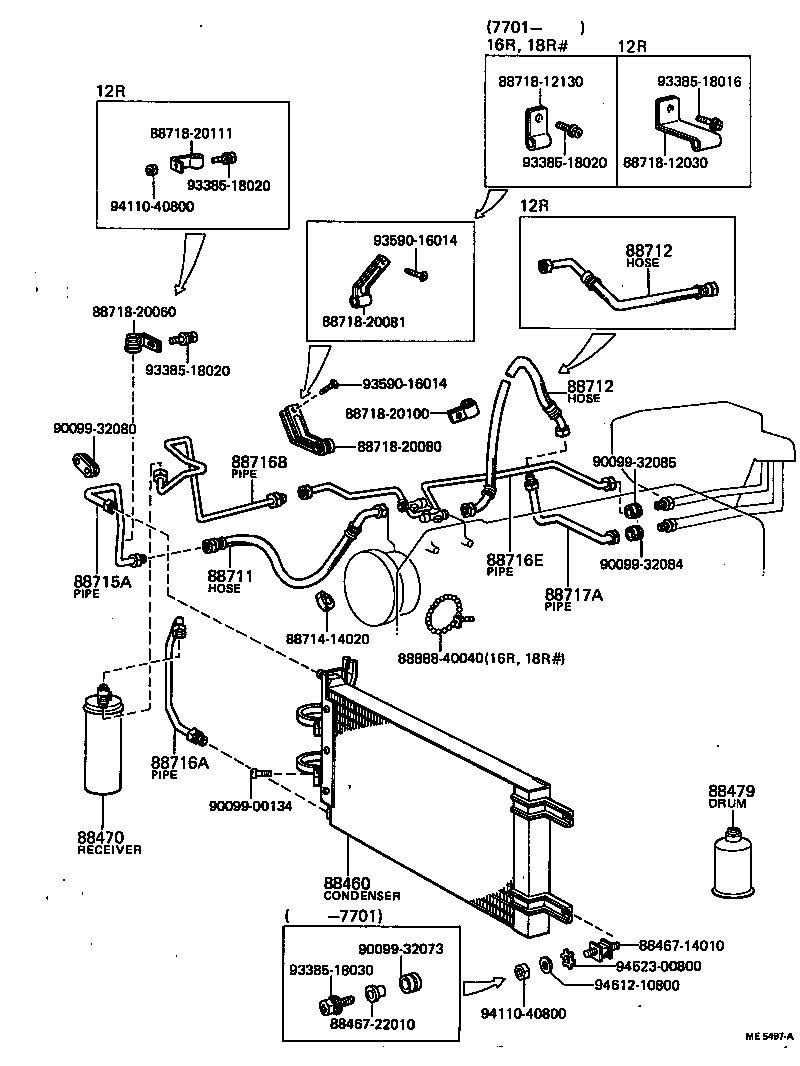

Click highlighted areas on diagram

diagram 88460 8846714010 8846722010 88470 88479 88711 88712 88712 8871414020 88715A 88716A 88716B 88716E 88717A 8871812030 8871812130 8871820060 8871820080 8871820081 8871820100 8871820111 8888840040 9009900134 9009932073 9009932080 9009932084 9009932085 9338518016 9338518020 9338518020 9338518020 9338518030 9359016014 9359016014 9411040800 9411040800 9452300800 9461210800
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-20060

RT10#,112,114,116,117,118..ARL,EUR,GEN,SA

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88470-20040

RT10#,112,114,116,117,118..ARL,EUR,GEN,SA

 1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
88434-30010

RT10#,112,114,116,117,118..ARL,EUR,GEN,SA

 2
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-20903

RT102,104,112,114,117,118

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-20110

RT102,104,112,117,118..LHD

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-20110

RT102,104,112,117,118..LHD

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-20030

RT10#,112,114,116,117,118

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-20220

RT10#,112,114,116,117,118..ARL,EUR,GEN,SA

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-20180

RT10#,112,116,117,118..LHD

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-20190

RT10#,112,116,117,118..LHD

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-20090

RT10#,112,114,116,117,118..LHD

 1
Common parts
88467-14010
88467-22010
88714-14020
88718-12030
88718-12130
88718-20060
88718-20080
88718-20081
88718-20100
88718-20111
88888-40040
90099-00134
90099-32073
90099-32080
90099-32084
90099-32085
93385-18016
93385-18020
93385-18030
93590-16014
94110-40800
94523-00800
94612-10800
