RT102L-MDFW (1973)
Toyota Corona
Production
Nov 1973
-
Sep 1975
Engine
16R
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7308-7808)5F

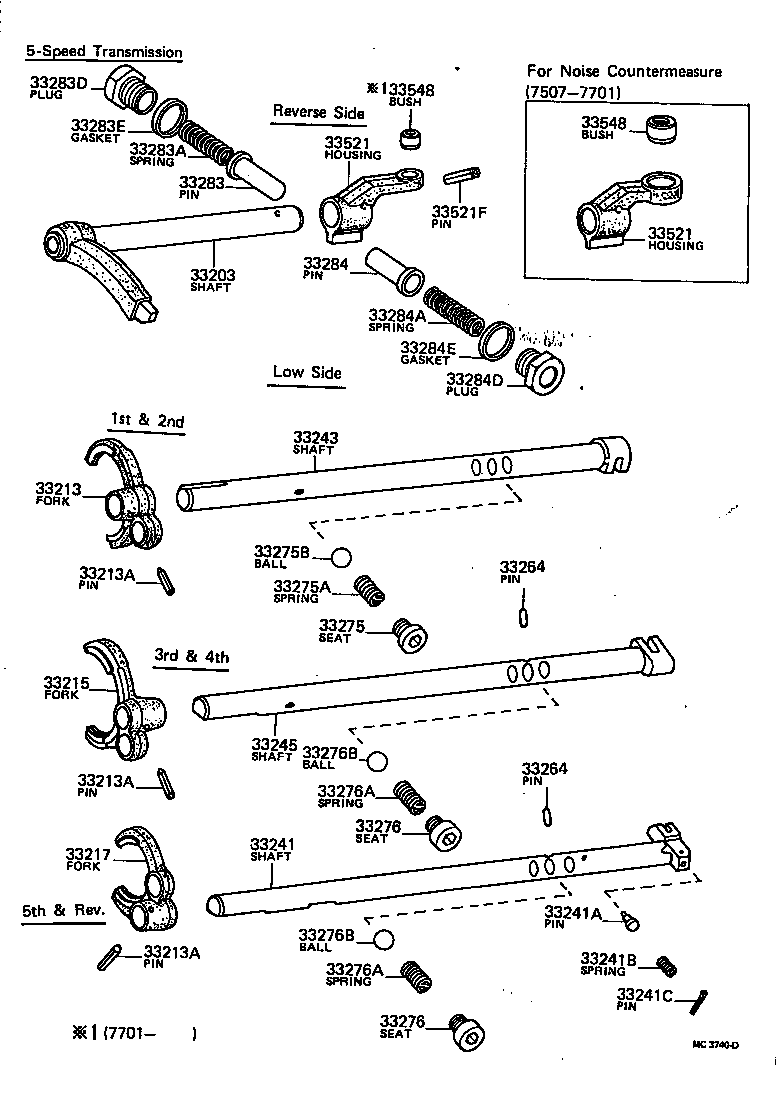

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33203 - SHAFT SUB-ASSY, SHIFT LEVER, NO.1 | ||||
| 33203-20091 |
RT102..5F |
1 | ||
| 33203-20090 |
RT102..5F |
1 | ||
| 33213 - FORK, 1ST & 2ND SHIFT | ||||
| 33212-31010 |
RT10#,11#..4F,5F |
1 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05001 |
RT10#,11#..MTM |
3 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05001 |
RT10#,11#..MTM |
3 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05001 |
RT10#,11#..MTM |
3 | ||
| 33215 - FORK, 3RD & 4TH SHIFT | ||||
| 33213-31010 |
RT10#,11#..4F,5F |
1 | ||
| 33217 - FORK, 5TH & REVERSE SHIFT | ||||
| 33214-20010 |
RT102..5F |
1 | ||
| 33241 - SHAFT, REVERSE SHIFT FORK | ||||
| 33244-20010 |
RT102..5F |
1 | ||
| 33241A - PIN, REVERSE SHAFT RESTRICT | ||||
| 33284-22010 |
RT102,104..5F |
1 | ||
| 33241B - SPRING, COMPRESSION(FOR REVERSE SHAFT RESTRICT PIN) | ||||
| 90501-14692 |
RT102..5F |
1 | ||
| 33241C - PIN, COTTER(FOR REVERSE SHAFT RESTRICT PIN) | ||||
| 95381-03020 |
RT102,104..5F |
1 | ||
| 33243 - SHAFT, 1ST & 2ND SHIFT FORK | ||||
| 33242-20040 |
RT102..5F |
1 | ||
| 33245 - SHAFT, 3RD & 4TH SHIFT FORK | ||||
| 33243-20030 |
RT102..5F |
1 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 33264-31010 |
RT10#,11#..4F,5F |
2 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 33264-31010 |
RT10#,11#..4F,5F |
2 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 90341-10065 |
RT10#,11#..4F,5F L=7.5,OD=15 |
1 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14597 |
RT10#,11#..4F,5F |
1 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-08009 |
RT10#,11#..4F,5F |
1 | ||
| 33276 - SEAT, SHIFT DETENT BALL SPRING, NO.2 | ||||
| 90341-10064 |
RT10#,11#..4F,5F |
2 | ||
| 33276 - SEAT, SHIFT DETENT BALL SPRING, NO.2 | ||||
| 90341-10064 |
RT10#,11#..4F,5F |
2 | ||
| 33276A - SPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL) | ||||
| 90501-14597 |
RT10#,11#..4F,5F |
2 | ||
| 33276A - SPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL) | ||||
| 90501-14597 |
RT10#,11#..4F,5F |
2 | ||
| 33276B - BALL, SHIFT DETENT, NO.2 | ||||
| 90360-08009 |
RT10#,11#..4F,5F |
2 | ||
| 33276B - BALL, SHIFT DETENT, NO.2 | ||||
| 90360-08009 |
RT10#,11#..4F,5F |
2 | ||
| 33283 - PIN, REVERSE RESTRICT, NO.1 | ||||
| 33283-22010 |
RT102,104..5F |
1 | ||
| 33283A - SPRING, COMPRESSION (FOR REVERSE RESTRICT PIN) | ||||
| 90501-14746 |
RT102..5F |
1 | ||
| 33283D - PLUG (FOR REVERSE RESTRICT PIN) | ||||
| 90341-20086 |
RT102,104..5F |
1 | ||
| 33283E - GASKET (FOR REVERSE RESTRICT PIN) | ||||
| 90430-21224 |
RT102,104..5F |
1 | ||
| 33284 - PIN, LOW RESTRICT | ||||
| 33283-22010 |
RT102,104..5F |
1 | ||
| 33284A - SPRING, COMPRESSION (FOR LOW RESTRICT PIN) | ||||
| 90501-14746 |
RT102..5F |
1 | ||
| 33284D - PLUG (FOR LOW RESTRICT PIN) | ||||
| 90341-20086 |
RT102,104..5F |
1 | ||
| 33284E - GASKET (FOR LOW RESTRICT PIN) | ||||
| 90430-21224 |
RT102,104..5F |
1 | ||
| 33521 - HOUSING, SHIFT LEVER | ||||
| 33521-20130 |
RT102,104..5F |
1 | ||
| 33521 - HOUSING, SHIFT LEVER | ||||
| 33521-20130 |
RT102,104..5F |
1 | ||
| 33521F - PIN OR BOLT (FOR SHIFT LEVER HOUSING) | ||||
| 90254-05016 |
RT10#,11#..4F,5F |
1 | ||
