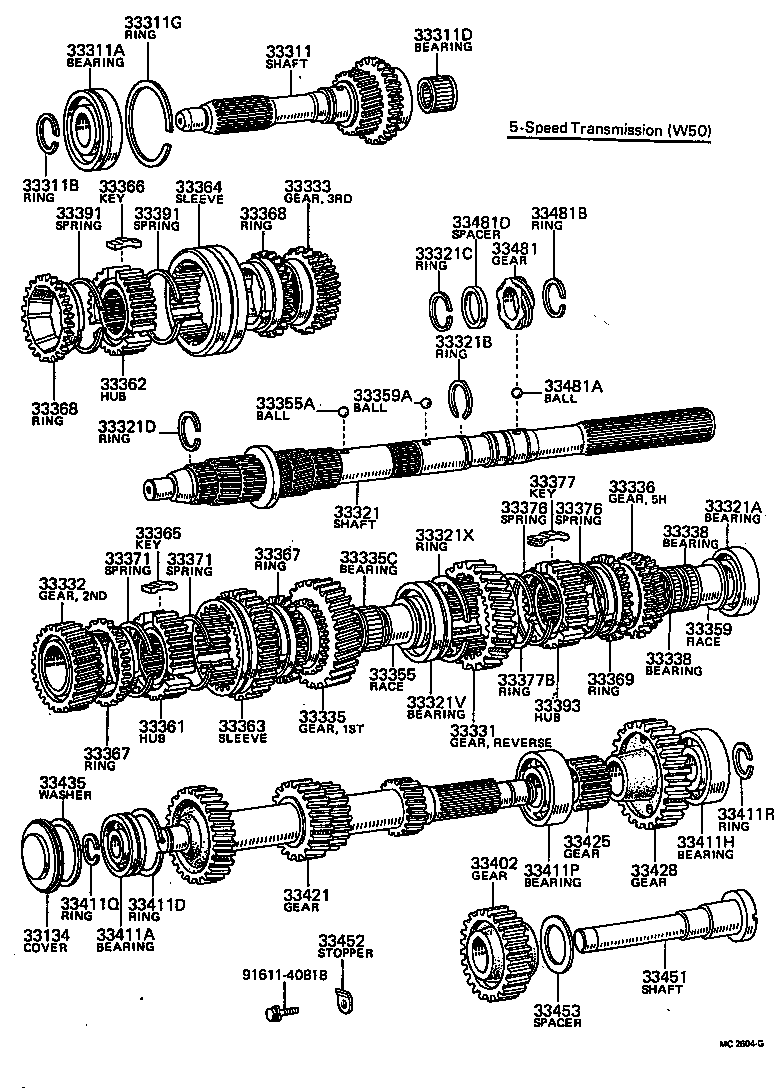

RT102L-MDFW (1973)
Toyota Corona
(7308-7808)5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33134 - COVER, TRANSMISSION COUNTERSHAFT | ||||
| 33406-31010 |
RT10#,11#..4F,5F |
1 | ||
| 33311 - SHAFT, INPUT | ||||
| 33301-20020 |
RT102,104..5F N=20 |
1 | ||
| 33311A - BEARING (FOR INPUT SHAFT FRONT) | ||||
| 90363-32060 |
RT10#,11#..4F,5F |
1 | ||
| 33311B - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90520-30219 |
RT10#,11#..4F,5F T=2.30,MARK 5,T=2.30-2.35 |
1 | ||
| 90520-30218 |
RT10#,11#..4F,5F T=2.25,MARK 4,T=2.25-2.30 |
1 | ||
| 90520-30216 |
RT10#,11#..4F,5F T=2.15,MARK 2,T=2.15-2.20 |
1 | ||
| 90520-30217 |
RT10#,11#..4F,5F T=2.20,MARK 3,T=2.20-2.25 |
1 | ||
| 90520-30214 |
RT10#,11#..4F,5F T=2.05,MARK 0,T=2.05-2.10 |
1 | ||
| 90520-30215 |
RT10#,11#..4F,5F T=2.10,MARK 1,T=2.10-2.15 |
1 | ||
| 33311D - BEARING, INPUT SHAFT | ||||
| 90364-19043 |
RT10#,11#..4F,5F |
1 | ||
| 33311G - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90520-71221 |
RT10#,11#..4F,5F |
1 | ||
| 33321 - SHAFT, OUTPUT | ||||
| 33321-20070 |
RT102,104..5F |
1 | ||
| 33321A - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 97104-06228 |
RT102,104..5F |
1 | ||
| 33321B - RING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING) | ||||
| 90520-25270 |
RT102,104..5F T=2.43-2.48,MARK 10,T=2.43-2.48 |
1 | ||
| 90520-25280 |
RT102,104..5F T=2.07-2.12 |
1 | ||
| 90520-25273 |
RT102,104..5F T=2.61-2.66,MARK 13,T=2.61-2.66 |
1 | ||
| 90520-25271 |
RT102,104..5F T=2.49-2.54,MARK 11,T=2.49-2.54 |
1 | ||
| 90520-25283 |
RT102,104..5F T=2.25-2.30 |
1 | ||
| 90520-25282 |
RT102,104..5F T=2.19-2.24 |
1 | ||
| 90520-25277 |
RT102,104..5F T=1.89-1.94 |
1 | ||
| 90520-25281 |
RT102,104..5F T=2.13-2.18 |
1 | ||
| 90520-25278 |
RT102,104..5F T=1.95-2.00 |
1 | ||
| 90520-25284 |
RT102,104..5F T=2.31-2.36,MARK 8,T=2.31-2.36 |
1 | ||
| 90520-25279 |
RT102,104..5F T=2.01-2.06 |
1 | ||
| 90520-25285 |
RT102,104..5F T=2.37-2.42,MARK 9,T=2.37-2.42 |
1 | ||
| 90520-25272 |
RT102,104..5F T=2.55-2.60,MARK 12,T=2.55-2.60 |
1 | ||
| 33321C - RING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING) | ||||
| 90520-26179 |
RT102,104..5F T=1.50,OD=31.3,T=1.43-1.53 |
1 | ||
| 33321D - RING, SHAFT SNAP (FOR CLUTCH HUB SET) | ||||
| 90520-30217 |
RT10#,11#..4F,5F T=2.20,MARK 3,T=2.20-2.25 |
1 | ||
| 90520-30214 |
RT10#,11#..4F,5F T=2.05,MARK 0,T=2.05-2.10 |
1 | ||
| 90520-30238 |
RT10#,11#..4F,5F T=2.00-2.05 |
1 | ||
| 90520-30215 |
RT10#,11#..4F,5F T=2.10,MARK 1,T=2.10-2.15 |
1 | ||
| 90520-30216 |
RT10#,11#..4F,5F T=2.15,MARK 2,T=2.15-2.20 |
1 | ||
| 90520-30218 |
RT10#,11#..4F,5F T=2.25,MARK 4,T=2.25-2.30 |
1 | ||
| 33321V - BEARING (FOR OUTPUT SHAFT CENTER) | ||||
| 90363-32060 |
RT102,104..5F |
1 | ||
| 33321X - RING, SHAFT SNAP (FOR OUTPUT SHAFT CENTER BEARING) | ||||
| 90520-71221 |
RT102,104..5F T=1.65,ID=71.1 |
1 | ||
| 33331 - GEAR, REVERSE | ||||
| 33331-20030 |
RT102,104..5F N=39 |
1 | ||
| 33332 - GEAR, 2ND | ||||
| 33033-20030 |
RT102,104..5F N=31 |
1 | ||
| 33333 - GEAR, 3RD | ||||
| 33034-20020 |
RT102,104..5F N=25 |
1 | ||
| 33335 - GEAR, 1ST | ||||
| 33032-31010 |
RT10#,11#..4F,5F N=34 |
1 | ||
| 33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR) | ||||
| 90364-43042 |
RT10#,11#..4F,5F |
1 | ||
| 33336 - GEAR, 5TH | ||||
| 33036-20010 |
RT102,104..5F N=20 |
1 | ||
| 33338 - BUSH OR BEARING, 5TH GEAR | ||||
| 90364-35062 |
RT102,104..5F |
2 | ||
| 33338 - BUSH OR BEARING, 5TH GEAR | ||||
| 90364-35062 |
RT102,104..5F |
2 | ||
| 33355 - RACE, 1ST GEAR BEARING INNER | ||||
| 33355-31010 |
RT10#,11#..4F,5F |
1 | ||
| 33355A - KEY OR BALL, 1ST GEAR BEARING INNER RACE LOCK | ||||
| 90360-06004 |
RT10#,11#..4F,5F |
1 | ||
| 33359 - RACE, 5TH GEAR BEARING INNER | ||||
| 33338-14020 |
RT102,104..5F |
1 | ||
| 33359A - BALL, 5TH GEAR BEARING INNER RACE LOCK | ||||
| 90360-06004 |
RT102,104..5F |
1 | ||
| 33361 - HUB, TRANSMISSION CLUTCH, NO.1 | ||||
| 33361-31011 |
RT10#,11#..4F,5F |
1 | ||
| 33362 - HUB, TRANSMISSION CLUTCH, NO.2 | ||||
| 33362-31011 |
RT10#,11#..4F,5F |
1 | ||
| 33363 - SLEEVE, TRANSMISSION HUB, NO.1 | ||||
| 33331-31010 |
RT102..5F |
1 | ||
| 33364 - SLEEVE, TRANSMISSION HUB, NO.2 | ||||
| 33364-20011 |
RT10#,11#..MTM |
1 | ||
| 33365 - KEY, SYNCHROMESH SHIFTING, NO.1 | ||||
| 33365-31010 |
RT10#,11#..4F,5F |
3 | ||
| 33366 - KEY, SYNCHROMESH SHIFTING, NO.2 | ||||
| 33366-20010 |
RT10#,11#..MTM |
3 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33368-20012 |
RT10#,11#..MTM |
2 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33368-20012 |
RT10#,11#..MTM |
2 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-20012 |
RT10#,11#..MTM |
2 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-20012 |
RT10#,11#..MTM |
2 | ||
| 33369 - RING, SYNCHRONIZER, NO.3 | ||||
| 33367-14010 |
RT102,104..5F |
1 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-20010 |
RT10#,11#..MTM |
2 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-20010 |
RT10#,11#..MTM |
2 | ||
| 33376 - SPRING, SYNCHROMESH SHIFTING KEY (FOR NO.3 CLUTCH HUB) | ||||
| 33371-14010 |
RT102,104..5F |
2 | ||
| 33376 - SPRING, SYNCHROMESH SHIFTING KEY (FOR NO.3 CLUTCH HUB) | ||||
| 33371-14010 |
RT102,104..5F |
2 | ||
| 33377 - KEY, SYNCHROMESH SHIFTING (FOR NO.3 CLUTCH HUB) | ||||
| 33394-20010 |
RT102,104..5F |
3 | ||
| 33377B - RING, SNAP (FOR SYNCHROMESH SHIFTING KEY) | ||||
| 90521-63147 |
RT102,104..5F |
1 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33371-20010 |
RT10#,11#..MTM |
2 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33371-20010 |
RT10#,11#..MTM |
2 | ||
| 33393 - HUB, TRANSMISSION CLUTCH, NO.3 | ||||
| 33393-20010 |
RT102,104..5F |
1 | ||
| 33402 - GEAR SUB-ASSY, REVERSE IDLER | ||||
| 33402-20030 |
RT102,104..5F N=31 |
1 | ||
| 33411A - BEARING OR ROLLER(FOR COUNTER GEAR FRONT) | ||||
| 97183-06205 |
RT10#,11#..4F,5F |
1 | ||
| 33411D - RING, COUNTER GEAR FRONT BEARING SNAP, NO.1 | ||||
| 90520-49222 |
RT10#,11#..4F,5F T=1.07,OD=55.6 |
1 | ||
| 33411H - BEARING OR ROLLER(FOR COUNTER GEAR REAR) | ||||
| 90363-20075 |
RT102,104..5F |
1 | ||
| 33411P - BEARING, COUNTER SHAFT CENTER | ||||
| 90365-28015 |
RT102,104..5F |
1 | ||
| 33411Q - RING, COUNTER GEAR FRONT BEARING SNAP, NO.2 | ||||
| 90520-23223 |
RT10#,11#..4F,5F |
1 | ||
| 33411R - RING, SNAP, COUNTER GEAR REAR BEARING | ||||
| 90520-18266 |
RT102,104..5F T=1.60-1.65,T=1.60-1.65 |
1 | ||
| 90520-18275 |
RT102,104..5F T=1.40-1.45 |
1 | ||
| 90520-18264 |
RT102,104..5F T=1.93-2.05 |
1 | ||
| 90520-18265 |
RT102,104..5F T=1.80-1.85 |
1 | ||
| 33421 - GEAR, COUNTER | ||||
| 33421-20050 |
RT102,104..5F N=29,26,22,15 |
1 | ||
| 33425 - GEAR, COUNTERSHAFT REVERSE | ||||
| 33425-20020 |
RT102,104..5F N=14 |
1 | ||
| 33428 - GEAR, COUNTERSHAFT 5TH | ||||
| 33428-20020 |
RT102,104..5F N=34 |
1 | ||
| 33435 - WASHER, COUNTER GEAR CASE SIDE THRUST | ||||
| 90560-38332 |
RT10#,11#..4F,5F T=2.10-2.20 |
1 | ||
| 90560-38333 |
RT10#,11#..4F,5F T=2.25-2.35 |
1 | ||
| 90560-38331 |
RT10#,11#..4F,5F T=1.95-2.05 |
1 | ||
| 90560-38334 |
RT10#,11#..4F,5F T=2.40-2.50 |
1 | ||
| 33451 - SHAFT, REVERSE IDLER GEAR | ||||
| 33451-14020 |
RT102,104..5F |
1 | ||
| 33452 - STOPPER, REVERSE IDLER GEAR SHAFT | ||||
| 33452-14010 |
RT102,104..5F |
1 | ||
| 33453 - SPACER, REVERSE IDLER GEAR SHAFT | ||||
| 33453-14010 |
RT102,104..5F |
1 | ||
| 33481 - GEAR, SPEEDOMETER DRIVE (MTM) | ||||
| 33481-22010 |
RT102,117..MTM..EUG N=6,MARK 6X18-20,N=6 |
1 | ||
| 33481A - KEY OR BALL, SPEEDOMETER DRIVE GEAR (MTM) | ||||
| 90360-06004 |
RT10#,11#..MTM |
1 | ||
| 33481B - RING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR) | ||||
| 90520-26179 |
RT10#,11#..MTM T=1.50,OD=31.3 |
2 | ||
| 33481D - SPACER (FOR SPEEDOMETER DRIVE GEAR) | ||||
| 90560-28339 |
RT102,104..5F |
1 | ||
| Common parts | ||||
| 91611-40818 | ||||
