RT102L-KDF (1973)
Toyota Corona
Production
Aug 1973
-
Sep 1975
Engine
16R
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7308-7905)

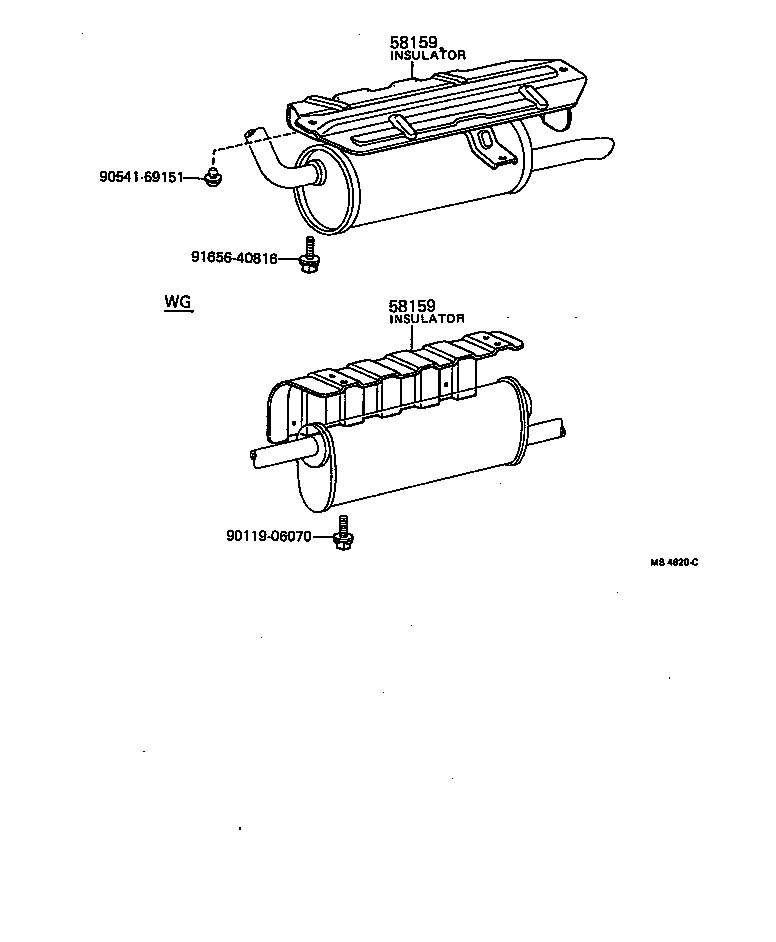

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58159 - INSULATOR, MAIN MAFFLAR HEAT | ||||
| 58031-20010 |
RT10#,110,112,114 |
1 | ||
| 58159 - INSULATOR, MAIN MAFFLAR HEAT | ||||
| 58031-20010 |
RT10#,110,112,114 |
1 | ||
| Common parts | ||||
| 90119-06070 | ||||
| 90541-69151 | ||||
| 91656-40816 | ||||
