RT102L-HDF (1973)

Toyota Corona

Production Aug 1973 - Sep 1975
Engine 16R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7308-7905)4D

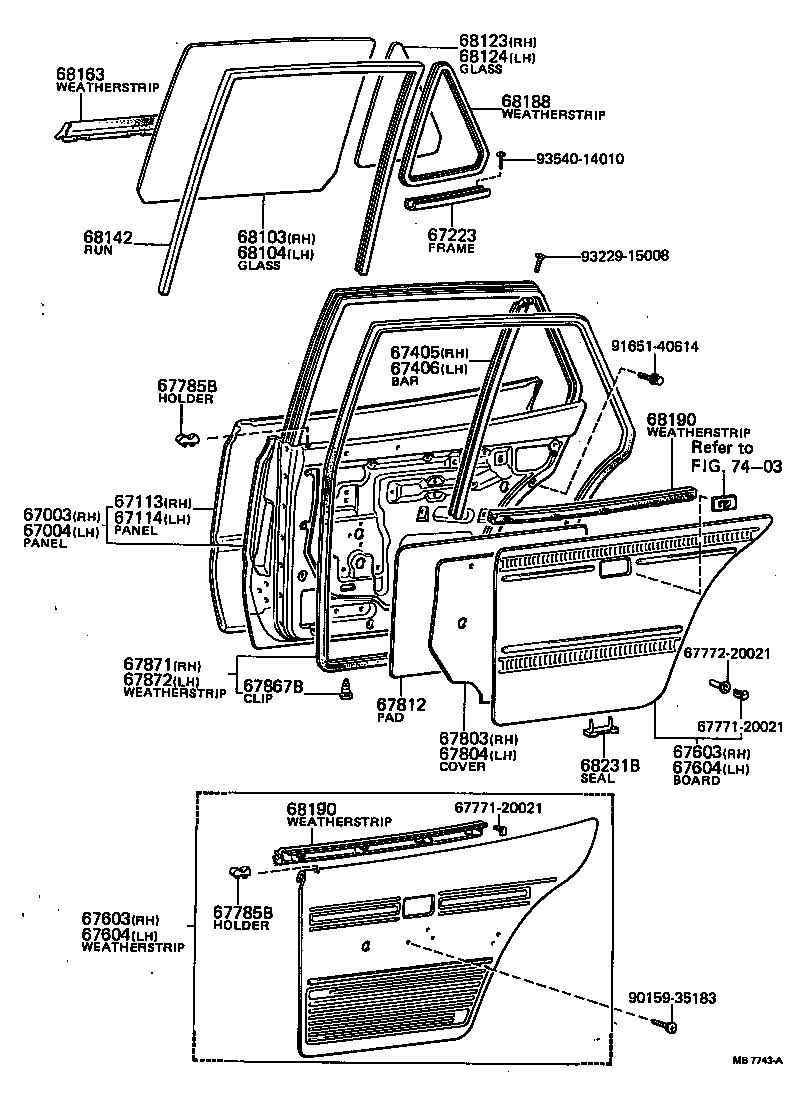

Click highlighted areas on diagram

diagram 67003 67004 67113 67114 67223 67405 67406 67603 67603 67604 67604 6777120021 6777120021 6777220021 67785B 67785B 67803 67804 67812 67867B 67871 67872 68103 68104 68123 68124 68142 68163 68188 68190 68190 68231B 7403 9015935183 9165140614 9322915008 9354014010
Part # Description Qty Price
67003 - PANEL SUB-ASSY, REAR DOOR, RH
67003-20080

RT10#..4D

 1
67004 - PANEL SUB-ASSY, REAR DOOR, LH
67004-20080

RT10#..4D

 1
67113 - PANEL, REAR DOOR, OUTER RH
67113-20050

RT10#,116,117,118

 1
67114 - PANEL, REAR DOOR, OUTER LH
67114-20050

RT10#,116,117,118

 1
67223 - FRAME, REAR DOOR QUARTER WINDOW, LOWER
67223-20030

RT10#,116,117,118..4D

 2
67405 - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67405-20040

RT10#..4D

 1
67406 - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
67406-20040

RT10#..4D

 1
67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH
67630-2021006

RT104..3FC..SA;RT102,104..DLX..(EUR,GEN)

OLIVE-BROWN,BROWN,TRIM4#

 1
67630-2021004

RT102..DLX

BLUE,BLUE,TRIM8#

 1
67630-2021001

RT104..3FC..SA;RT102,104..DLX..(EUR,GEN)

BLACK,BLACK,TRIM2#

 1
67630-2021003

RT102..DLX

GRAY,GRAY,TRIM1#

 1
67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH
67630-2021006

RT104..3FC..SA;RT102,104..DLX..(EUR,GEN)

OLIVE-BROWN,BROWN,TRIM4#

 1
67630-2021004

RT102..DLX

BLUE,BLUE,TRIM8#

 1
67630-2021001

RT104..3FC..SA;RT102,104..DLX..(EUR,GEN)

BLACK,BLACK,TRIM2#

 1
67630-2021003

RT102..DLX

GRAY,GRAY,TRIM1#

 1
67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH
67640-2021004

RT102..DLX

BLUE,BLUE,TRIM8#

 1
67640-2021006

RT104..3FC..SA;RT102,104..DLX..(EUR,GEN)

OLIVE-BROWN,BROWN,TRIM4#

 1
67640-2021003

RT102..DLX

GRAY,GRAY,TRIM1#

 1
67640-2021001

RT104..3FC..SA;RT102,104..DLX..(EUR,GEN)

BLACK,BLACK,TRIM2#

 1
67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH
67640-2021004

RT102..DLX

BLUE,BLUE,TRIM8#

 1
67640-2021006

RT104..3FC..SA;RT102,104..DLX..(EUR,GEN)

OLIVE-BROWN,BROWN,TRIM4#

 1
67640-2021003

RT102..DLX

GRAY,GRAY,TRIM1#

 1
67640-2021001

RT104..3FC..SA;RT102,104..DLX..(EUR,GEN)

BLACK,BLACK,TRIM2#

 1
67785B - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR)
67785-22010

RT104..3FC..SA;RT102,104..DLX..(EUR,GEN)

FULL TRIM

 2
67785B - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR)
67785-22010

RT104..3FC..SA;RT102,104..DLX..(EUR,GEN)

FULL TRIM

 2
67803 - COVER SUB-ASSY, REAR DOOR SERVICE HOLE, RH
67841-20070

RT10#,116,117,118..4D

 1
67804 - COVER SUB-ASSY, REAR DOOR SERVICE HOLE, LH
67841-20070

RT10#,116,117,118..4D

 1
67812 - PAD, REAR DOOR SILENCER
67812-20050

RT10#,116,117,118..4D

 2
67867B - CLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)
67867-12020

RT10#,116,117,118..4D

 44
67871 - WEATHERSTRIP, REAR DOOR, RH
67871-20070

RT10#,116,117,118..4D

 1
67872 - WEATHERSTRIP, REAR DOOR, LH
67872-20070

RT10#,116,117,118..4D

 1
68103 - GLASS SUB-ASSY, REAR DOOR, RH
68113-20120

RT102,104..LHD;RT102..RHD..STD..GEN

TN.TP.T=4.0

 1
68104 - GLASS SUB-ASSY, REAR DOOR, LH
68114-20040

RT102,104..LHD;RT102..RHD..STD..GEN

TN.TP.T=4.0

 1
68123 - GLASS, REAR DOOR WINDOW, RH
68123-20160

RT102,104..LHD;RT102..RHD..STD..GEN

TN.TP.T=4.0

 1
68124 - GLASS, REAR DOOR WINDOW, LH
68124-20080

RT102,104..LHD;RT102..RHD..STD..GEN

TN.TP.T=4.0

 1
68142 - RUN, REAR DOOR GLASS
68142-20030

RT10#,116,117,118..4D

 2
68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68188-20040

RT10#..4D

RH.

 1
68189-20040

RT10#..4D

LH.

 1
68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER
68190-20070

RT104..3FC..SA;RT102,104..DLX..(EUR,GEN)

RH.

 1
68240-20040

RT104..3FC..SA;RT102,104..DLX..(EUR,GEN)

LH.

 1
68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER
68190-20070

RT104..3FC..SA;RT102,104..DLX..(EUR,GEN)

RH.

 1
68240-20040

RT104..3FC..SA;RT102,104..DLX..(EUR,GEN)

LH.

 1
68231B - SEAL, REAR DOOR DRAIN HOLE DUST
68231-30020

RT10#,116,117,118..4D

 4
Common parts
67771-20021
67772-20021
90159-35183
91651-40614
93229-15008
93540-14010
Linked diagrams
7403
