RT102L-HDF (1973)

Toyota Corona

Production Aug 1973 - Sep 1975
Engine 16R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7308-7905)RT10#,116,117,118

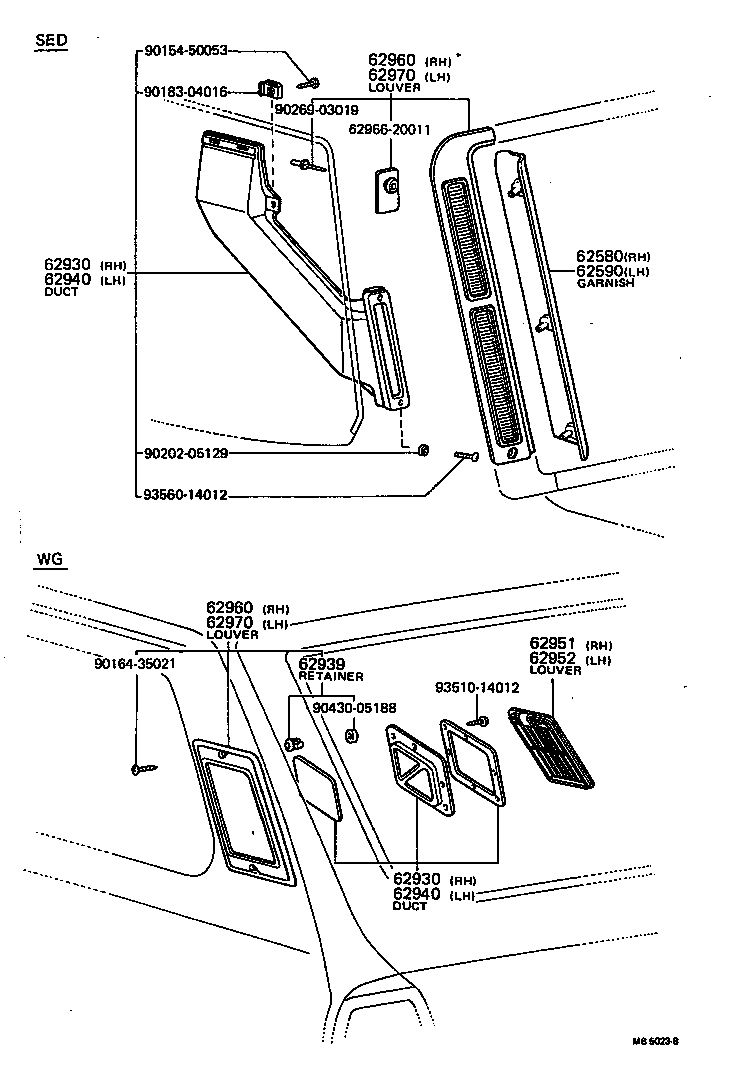

Click highlighted areas on diagram

diagram 62580 62590 62930 62930 62939 62940 62940 62951 62952 62960 62960 6296620011 62970 62970 9015450053 9016435021 9018304016 9020205129 9026903019 9043005188 9351014012 9356014012
Part # Description Qty Price
62930 - DUCT ASSY, ROOF SIDE VENT, RH
62930-29015

RT10#

 1
62930 - DUCT ASSY, ROOF SIDE VENT, RH
62930-29015

RT10#

 1
62940 - DUCT ASSY, ROOF SIDE VENT, LH
62940-29015

RT10#

 1
62940 - DUCT ASSY, ROOF SIDE VENT, LH
62940-29015

RT10#

 1
62960 - LOUVER ASSY, ROOF SIDE VENT, RH
62951-29085

RT10#

 1
62960 - LOUVER ASSY, ROOF SIDE VENT, RH
62951-29085

RT10#

 1
62970 - LOUVER ASSY, ROOF SIDE VENT, LH
62952-29085

RT10#

 1
62970 - LOUVER ASSY, ROOF SIDE VENT, LH
62952-29085

RT10#

 1
Common parts
62966-20011
90154-50053
90164-35021
90183-04016
90202-05129
90269-03019
90430-05188
93510-14012
93560-14012
