RT102-KRF (1973)
Toyota Corona
Production
Aug 1973
-
Sep 1975
Engine
16R
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7308-7701)RT10#

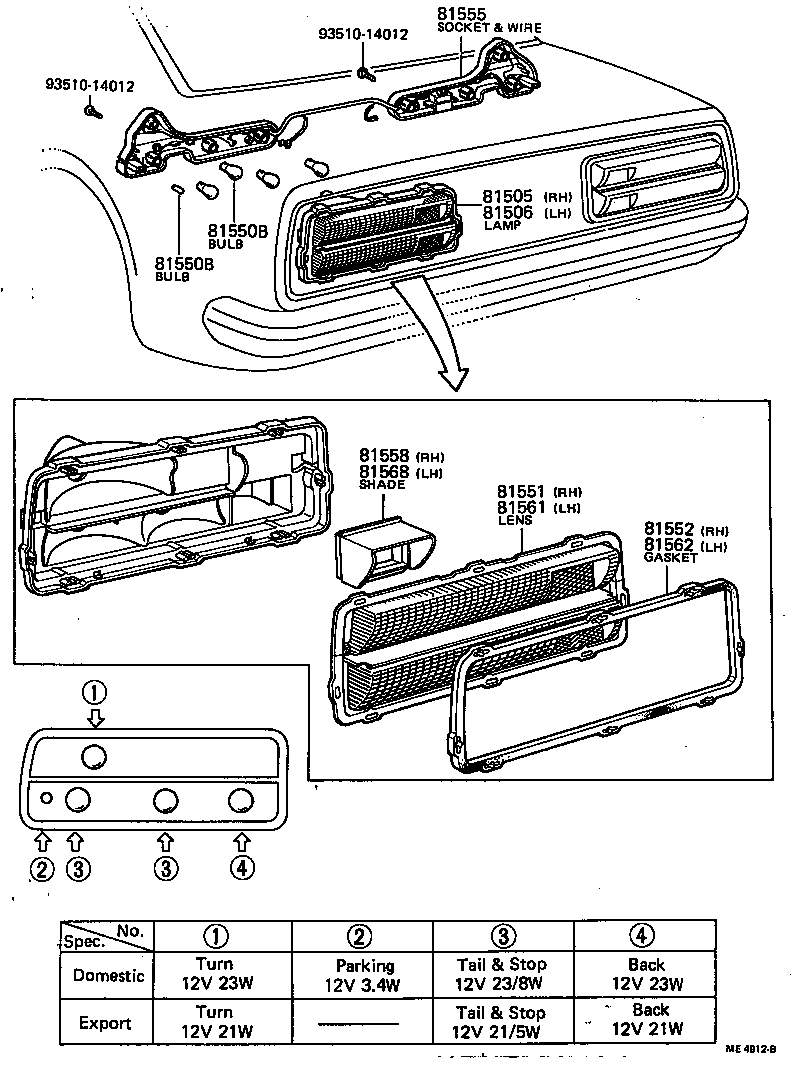

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81505 - LAMP SUB-ASSY, REAR COMBINATION, RH | ||||
| 04815-20130 |
RT10#..STD AMBER-RED-CLEAR,KOITO |
1 | ||
| 81506 - LAMP SUB-ASSY, REAR COMBINATION, LH | ||||
| 04816-20130 |
RT10#..STD AMBER-RED-CLEAR,KOITO |
1 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-21210 |
RT10#,11# 12V 21/5W,12V 21/5W |
4 | ||
| 99132-11210 |
RT10#,11# 12V 21W,12V 21W |
4 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-21210 |
RT10#,11# 12V 21/5W,12V 21/5W |
4 | ||
| 99132-11210 |
RT10#,11# 12V 21W,12V 21W |
4 | ||
| 81551 - LENS, REAR COMBINATION LAMP, RH | ||||
| 81551-20310 |
RT10#..STD AMBER-RED-CLEAR,KOITO |
1 | ||
| 81552 - GASKET, REAR COMBINATION LAMP LENS, RH | ||||
| 81552-20230 |
RT10# KOITO |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-20240 |
RT10# KOITO |
1 | ||
| 81558 - SHADE, REAR COMBINATION LAMP, NO.1 RH | ||||
| 81557-20230 |
RT10# |
1 | ||
| 81561 - LENS, REAR COMBINATION LAMP, LH | ||||
| 81561-20290 |
RT10#..STD AMBER-RED-CLEAR,KOITO |
1 | ||
| 81562 - GASKET, REAR COMBINATION LAMP LENS, LH | ||||
| 81562-20220 |
RT10# KOITO |
1 | ||
| 81568 - SHADE, REAR COMBINATION LAMP, NO.1 LH | ||||
| 81567-20220 |
RT10# |
1 | ||
| Common parts | ||||
| 93510-14012 | ||||
