RT102-KDF (1973)

Toyota Corona

Production Aug 1973 - Sep 1975
Engine 16R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7308-7905)16R,18R#

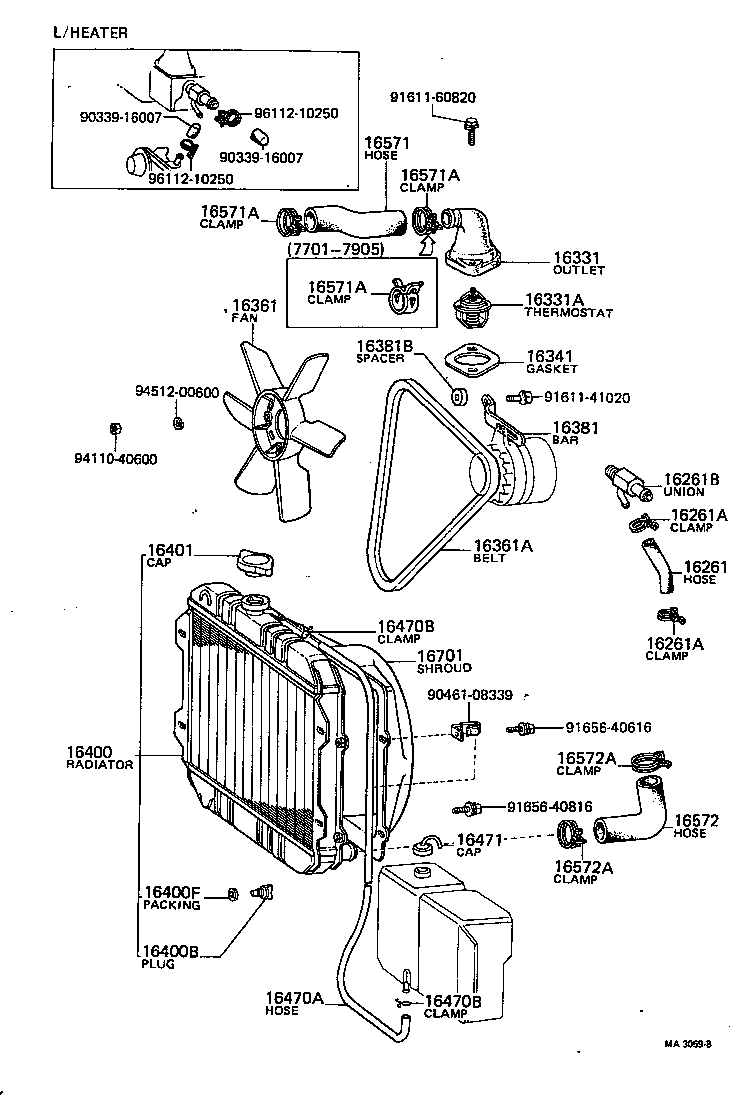

Click highlighted areas on diagram

diagram 16261 16261A 16261A 16261B 16331 16331A 16341 16361 16361A 16381 16381B 16400 16400B 16400F 16401 16470A 16470B 16470B 16471 16571 16571A 16571A 16571A 16572 16572A 16572A 16701 9033916007 9033916007 9161141020 9161160820 9165640616 9165640816 9411040600 9451200600 9611210250 9611210250 9846108339
Part # Description Qty Price
16261 - HOSE, WATER BY-PASS
90910-05081

16R,18R..RT102,104,112,114,117,118

 1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
96112-10160

16R,18R..RT102,104,112,114,117,118

 2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
96112-10160

16R,18R..RT102,104,112,114,117,118

 2
16261B - UNION(FOR WATER BY-PASS HOSE)
90404-17291

16R,18R..RT102,104,112,114,117,118

 1
16331 - OUTLET, WATER
16331-36010

16R,18R..RT102,104,112,114,117,118

 1
16331-36020

16R..RT102,112,117..EUR,GEN

CAST IRON BODY

 1
16331A - THERMOSTAT
90916-03037

12R,16R,18R..RT10#,11#

WAX 82-95 KUZEH

 1
90916-03036

16R,18R..RT102,104,112,114,117,118

WAX 88-100 FUJI-THOMSON ARCTIC

 1
90916-03033

16R,18R..RT102,104,112,114,117,118

WAX 82-95 FUJI-THOMSON

 1
16341 - GASKET, WATER OUTLET
16341-49010

12R,16R,18R..RT10#,11#

 1
16361 - FAN
16361-41022

16R..RT102,112,117..EUR,GEN

6 BLADES OD=380

 1
16361-33020

16R,18R..RT102,104,112,114,117,118

6 BLADES OD=360

 1
16361A - BELT, V(FOR FAN & ALTERNATOR)
99521-10843

16R,18R..RT102,104,112,114,117,118

FOR 12V 45A ALTERNATOR

 1
99521-10860

16R,18R..RT102,104,112,114,117,118

FOR 12V 55A ALTERNATOR

 1
16381 - BAR, FAN BELT ADJUSTING
16381-33010

16R,18R..RT102,104,112,114,117,118

FOR 12V 45A ALTERNATOR

 1
16381-36010

16R,18R..RT102,104,112,114,117,118

FOR 12V 55A ALTERNATOR

 1
16400 - RADIATOR ASSY
16400-36010

16R,18R..RT102,104,112,114,117,118..MTM

 1
16400B - PLUG, RADIATOR DRAIN COCK
90910-09054

12R,16R,18R..RT10#,11#

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
96710-01007

12R,16R,18R..RT10#,11#

 1
16401 - CAP SUB-ASSY, RADIATOR
16401-36010

12R#,16R,18R#..RT10#,11#

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90445-12521

12R#,16R,18R#..RT10#,11#

 1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

12R,16R,18R..RT10#,11#

 2
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

12R,16R,18R..RT10#,11#

 2
16471 - CAP SUB-ASSY, RESERVE TANK
85332-20030

12R#,16R,18R#..RT10#,11#

 1
16571 - HOSE, RADIATOR, INLET
16571-36010

16R,18R..RT102,104,112,114,117,118

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90460-47036

16R,18R..RT102,104,112,114,117,118

ID=47

 2
96111-10450

16R,18R..RT102,104,112,114,117,118

ID=45

 2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90460-47036

16R,18R..RT102,104,112,114,117,118

ID=47

 2
96111-10450

16R,18R..RT102,104,112,114,117,118

ID=45

 2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90460-47036

16R,18R..RT102,104,112,114,117,118

ID=47

 2
96111-10450

16R,18R..RT102,104,112,114,117,118

ID=45

 2
16572 - HOSE, RADIATOR, OUTLET
16572-36020

16R,18R..RT102,104,112,114,117,118

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
96111-10450

16R,18R..RT102,104,112,114,117,118

ID=45

 1
90460-49062

16R,18R..RT102,104,112,114,117,118

ID=49

 1
96111-10480

16R,18R..RT102,104,112,114,117,118

ID=48

 1
90460-47036

12R,16R..RT100,102,112,116,117

ID=47

 2
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
96111-10450

16R,18R..RT102,104,112,114,117,118

ID=45

 1
90460-49062

16R,18R..RT102,104,112,114,117,118

ID=49

 1
96111-10480

16R,18R..RT102,104,112,114,117,118

ID=48

 1
90460-47036

12R,16R..RT100,102,112,116,117

ID=47

 2
16701 - SHROUD SUB-ASSY, FAN
16711-36020

16R,18R..RT102,104,112,114,117,118

 1
Common parts
90339-16007
91611-41020
91611-60820
91656-40616
91656-40816
94110-40600
94512-00600
96112-10250
98461-08339
