RT100L-KDFM (1975)

Toyota Corona

Production Nov 1975 - Jan 1977
Engine 12RM
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7308-7701)

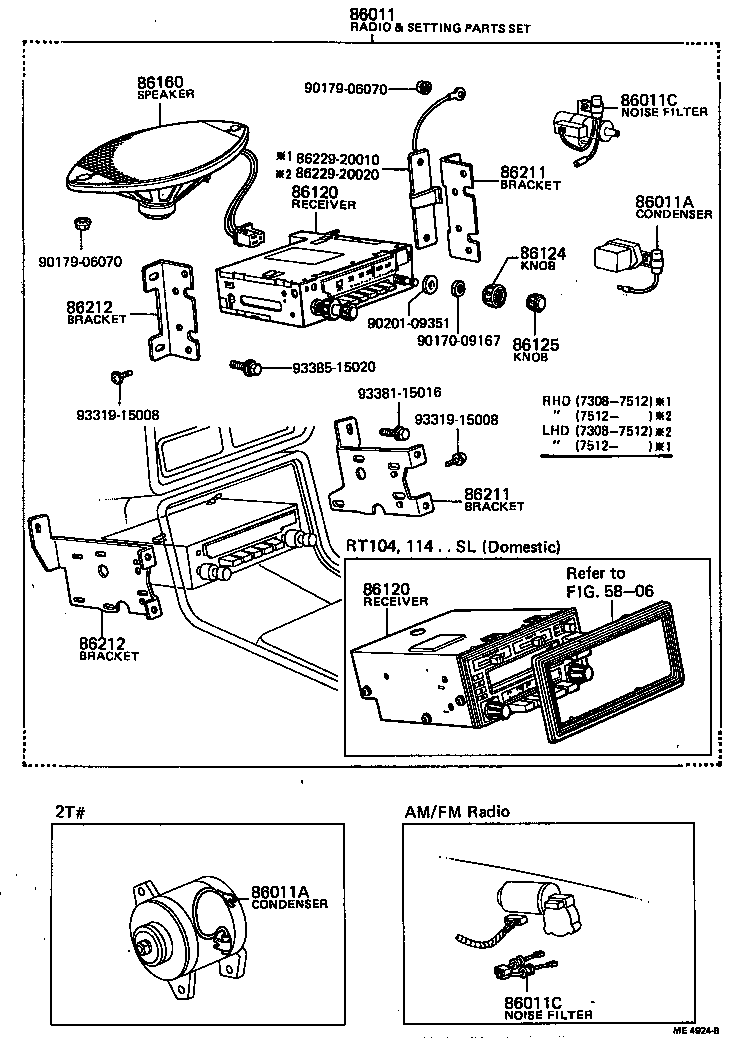

Click highlighted areas on diagram

diagram 5806 86011 86011A 86011A 86011C 86011C 86120 86120 86124 86125 86160 86211 86211 86212 86212 8622920010 8622920020 9017009167 9017906070 9017906070 9020109351 9331915008 9331915008 9338115016 9338515020
Part # Description Qty Price
86011 - RADIO & SETTING PARTS SET
86011-29055

RT10#,110,112,116,117,118..LHD

AM,5-BUTTON

 1
86011-29065

RT10#,112,116,117,118..LHD

AM/FM,5-BUTTON

 1
86011-20220

RT10#,112,116,117,118..LHD

WEST GERMANY

 1
86011A - CONDENSER, RADIO SETTING
90980-04011

RT10#,116,117,118..4D

PLUG CONNECTOR

 1
86011A - CONDENSER, RADIO SETTING
90980-04011

RT10#,116,117,118..4D

PLUG CONNECTOR

 1
86011C - FILTER, NOISE
90980-05010

RT10#,116,117..4D

;U; & PLUG CONNECTOR

 1
90980-05020

RT10#,116

PLUG CONNECTOR

 1
86011C - FILTER, NOISE
90980-05010

RT10#,116,117..4D

;U; & PLUG CONNECTOR

 1
90980-05020

RT10#,116

PLUG CONNECTOR

 1
86120 - RECEIVER ASSY, RADIO
86120-20180

RT10#,112,116,117,118..LHD

WEST GERMANY

 1
86120-20130

RT10#,116,117..4D

AM,5-BUTTON

 1
86120 - RECEIVER ASSY, RADIO
86120-20180

RT10#,112,116,117,118..LHD

WEST GERMANY

 1
86120-20130

RT10#,116,117..4D

AM,5-BUTTON

 1
86124 - KNOB, RADIO RECEIVER CONTROL
86124-20040

RT10#,116,117..4D

 2
86125 - KNOB, RADIO RECEIVER SWITCH
86125-20040

RT10#,116,117..4D

 2
86160 - SPEAKER ASSY, FRONT NO.1
86160-20050

RT10#,116,117..4D

 1
86211 - BRACKET, RADIO, NO.1
86211-20050

RT10#,112,114,116,117,118..LHD

 1
86211 - BRACKET, RADIO, NO.1
86211-20050

RT10#,112,114,116,117,118..LHD

 1
86212 - BRACKET, RADIO, NO.2
86212-20040

RT10#,112,114,116,117,118..LHD

 1
86212 - BRACKET, RADIO, NO.2
86212-20040

RT10#,112,114,116,117,118..LHD

 1
Common parts
86229-20010
86229-20020
90170-09167
90179-06070
90201-09351
93319-15008
93381-15016
93385-15020
Linked diagrams
5806
