RT100-YRF (1973)
Toyota Corona
Production
Aug 1973
-
Aug 1978
Engine
12R
Transmission
3H MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7308-7808)12R#

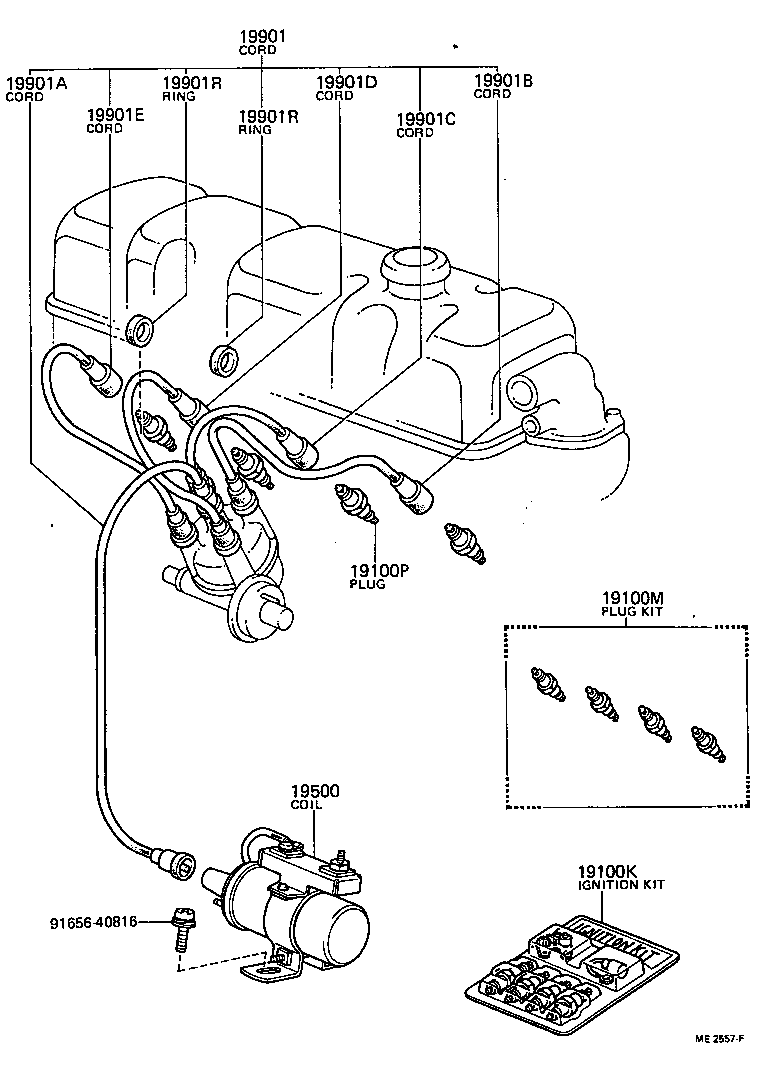

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100K - IGNITION KIT | ||||
| 04193-31040 |
12R..RT100,110,116 |
1 | ||
| 19100M - PLUG KIT, SPARK | ||||
| 04195-34010 |
12R#..RT100,110,116 W16EP |
1 | ||
| 19100P - PLUG, SPARK | ||||
| 90919-01041 |
12R..RT100,110,116 W16EX |
4 | ||
| 90919-01027 |
12R#..RT100,110,116 W16EP OR W16EX-U,W16EP |
4 | ||
| 19500 - COIL ASSY, IGNITION | ||||
| 90919-02067 |
12R#..RT100,110,116 |
1 | ||
| 90919-02085 |
12R#..RT100,116 |
1 | ||
| 90919-02053 |
12R..RT100,110,116 |
1 | ||
| 19901 - CORD SET, COIL & SPARK, W/RESISTIVE | ||||
| 90919-21015 |
12R..RT100,110,116 |
1 | ||
| 90919-21107 |
12R#..RT100,110,116 |
1 | ||
| 19901A - CORD, COIL RESISTIVE | ||||
| 99231-10360 |
12R..RT100,110,116 |
1 | ||
| 90919-13044 |
12R#..RT100,110,116 |
1 | ||
| 90919-13042 |
12R..RT100,110,116 |
1 | ||
| 19901B - CORD, SPARK PLUG RESISTIVE, NO.1 | ||||
| 90919-12082 |
12R#..RT100,110,116 |
1 | ||
| 19901C - CORD, SPARK PLUG RESISTIVE, NO.2 | ||||
| 90919-12145 |
12R#..RT100,110,116 |
1 | ||
| 99221-10240 |
12R..RT100,110,116 |
1 | ||
| 19901D - CORD, SPARK PLUG RESISTIVE, NO.3 | ||||
| 99221-10240 |
12R..RT100,110,116 |
1 | ||
| 90919-12145 |
12R#..RT100,110,116 |
1 | ||
| 19901E - CORD, SPARK PLUG RESISTIVE, NO.4 | ||||
| 90919-12146 |
12R..RT100,110,116 |
1 | ||
| 99221-10290 |
12R,16R,18R..RT10#,11# |
1 | ||
| 19901R - RING, RUBBER SPARK PLUG RESISTIVE CORD | ||||
| 90202-11067 |
12R,16R,18R..RT10#,11# |
2 | ||
| 19901R - RING, RUBBER SPARK PLUG RESISTIVE CORD | ||||
| 90202-11067 |
12R,16R,18R..RT10#,11# |
2 | ||
| Common parts | ||||
| 91656-40816 | ||||
