RT100-YDF (1973)

Toyota Corona

Production Aug 1973 - Aug 1978
Engine 12R
Transmission 3H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7308-7808)12R#

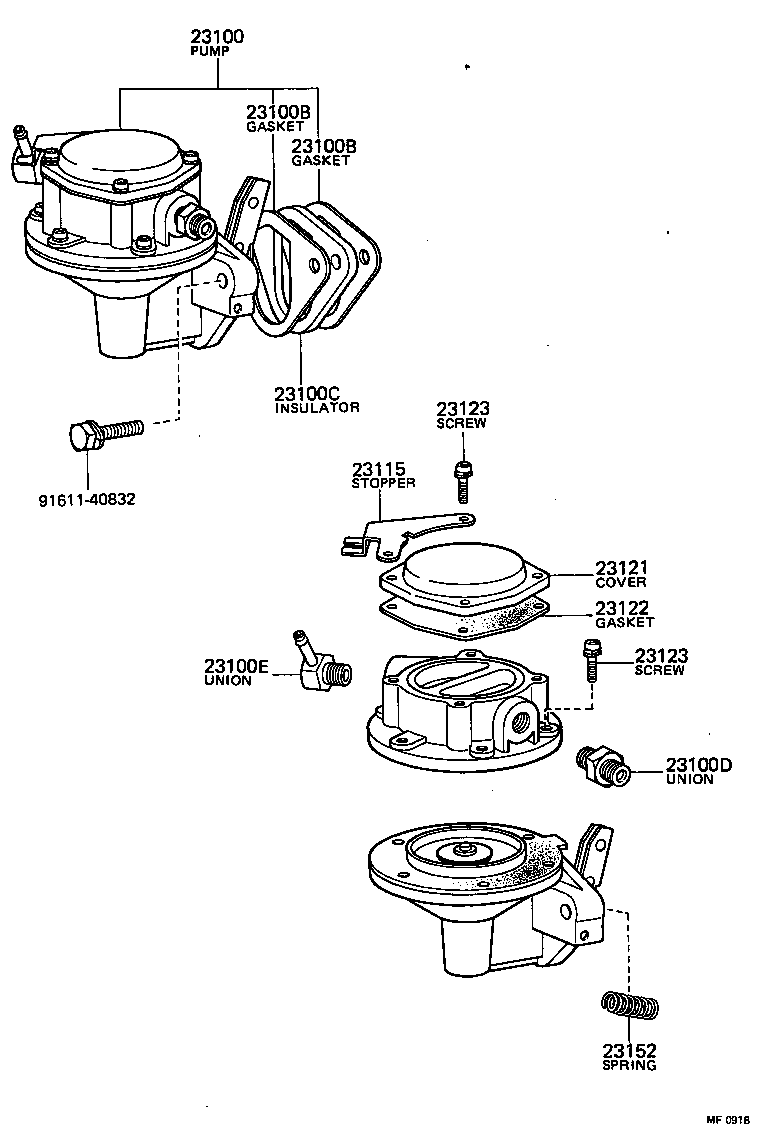

Click highlighted areas on diagram

diagram 23100 23100B 23100B 23100C 23100D 23100E 23115 23121 23122 23123 23123 23152 9161140832
Part # Description Qty Price
23100 - PUMP ASSY, FUEL
23100-39095

12R#..RT100,110,116

 1
23100B - GASKET, FUEL PUMP
90923-05005

12R,16R,18R..RT10#,11#

 2
23100B - GASKET, FUEL PUMP
90923-05005

12R,16R,18R..RT10#,11#

 2
23100C - INSULATOR, FUEL PUMP
90923-06001

12R,16R,18R..RT10#,11#

 1
23100D - UNION, NIPPLE(FOR FUEL OUTLET)
90404-13105

12R,16R,18R..RT10#,11#

 1
90404-13105

12R#..RT100,110,116

 1
90404-13105

12R,16R,18R#..RT10#,11#

 1
23100E - UNION, NIPPLE(FOR FUEL INLET)
23116-31040

12R#..RT100,110,116

 1
23115 - STOPPER, UNION NIPPLE
23115-31040

12R#..RT100,110,116

 1
23121 - COVER, FUEL PUMP
23121-34020

12R#..RT100,110,116

 1
23122 - GASKET, FUEL PUMP COVER
23122-34020

12R#..RT100,110,116

 1
23123 - SCREW, COVER SET, NO.1
23123-33011

12R#..RT100,110,116

FOR COVER SET

 4
93319-15014

12R#..RT100,110,116

FOR BODY SET

 6
23123 - SCREW, COVER SET, NO.1
23123-33011

12R#..RT100,110,116

FOR COVER SET

 4
93319-15014

12R#..RT100,110,116

FOR BODY SET

 6
23152 - SPRING, ROCKER ARM
23152-30020

12R#..RT100,110,116

 1
Common parts
91611-40832
