RT100-KRF (1973)

Toyota Corona

Production Aug 1973 - Aug 1978
Engine 12R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7308-7905)RT10#,110,112,114

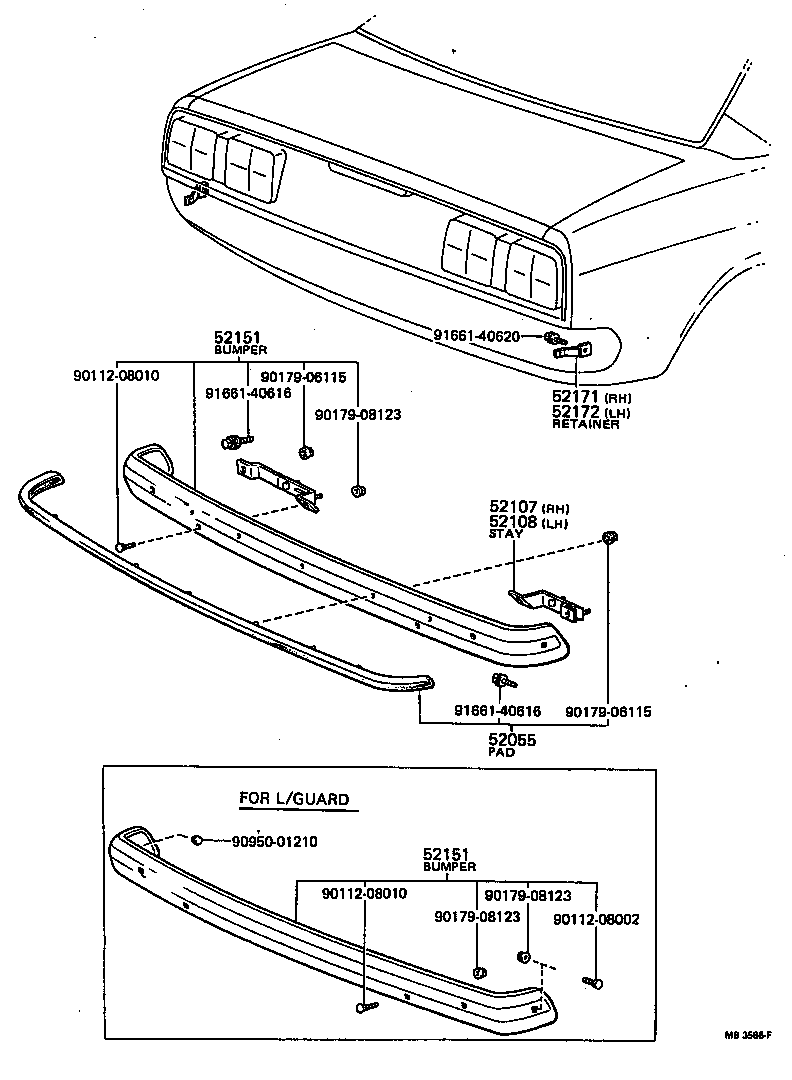

Click highlighted areas on diagram

diagram 52055 52107 52108 52151 52151 52171 52172 9011208002 9011208010 9011208010 9017906115 9017906115 9017908123 9017908123 9017908123 9095001210 9166140616 9166140616 9166140620
Part # Description Qty Price
52107 - STAY SUB-ASSY, REAR BUMPER, RH
52181-20050

RT10#,110,114

 1
52181-20060

RT10#

 1
52108 - STAY SUB-ASSY, REAR BUMPER, LH
52182-20060

RT10#

 1
52182-20050

RT10#,110,114

 1
52151 - BUMPER ASSY, REAR
52151-29175

RT10#,110,112,114..ARL,GEN,PHL,SA

 1
52151 - BUMPER ASSY, REAR
52151-29175

RT10#,110,112,114..ARL,GEN,PHL,SA

 1
52171 - RETAINER, REAR BUMPER SIDE, RH
52185-20020

RT10#,110,112,114

 1
52171-20050

RT10#,112,114

 1
52172 - RETAINER, REAR BUMPER SIDE, LH
52186-20010

RT10#,110,112,114

 1
52171-20050

RT10#,112,114

 1
Common parts
90112-08002
90112-08010
90179-06115
90179-08123
90950-01210
91661-40616
91661-40620
