RT100-KDF (1973)
Toyota Corona

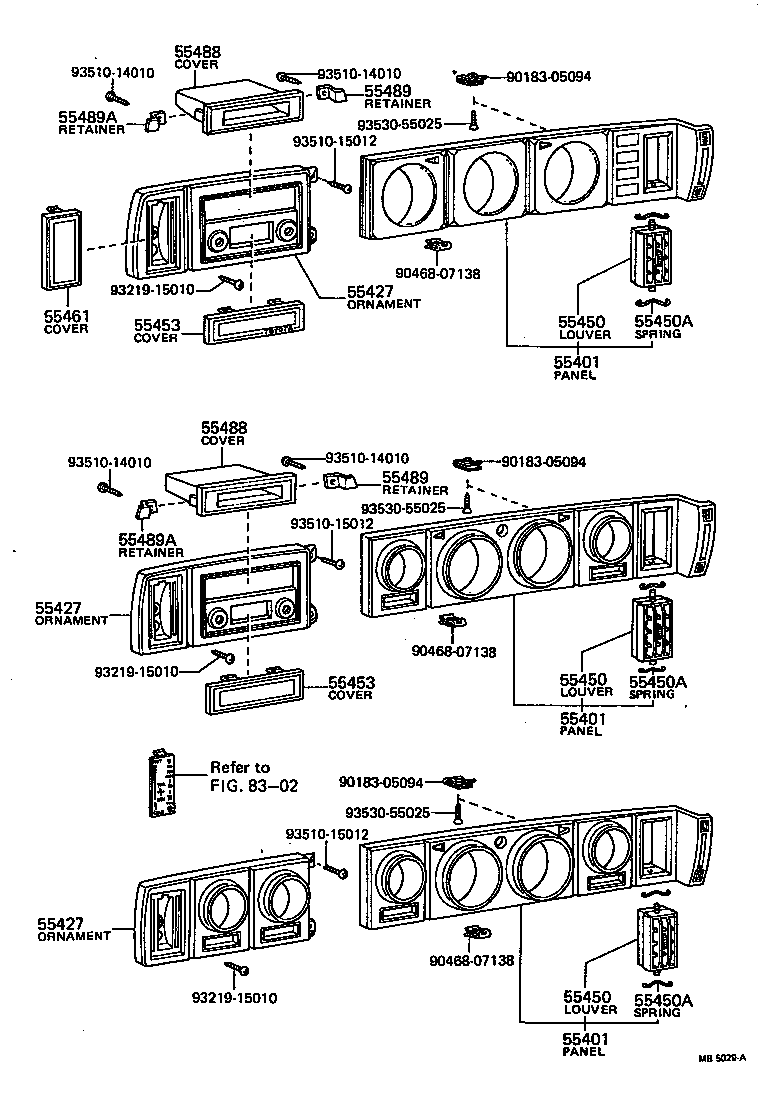

(7308-7701)RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55401 - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55040-20081 |
RT104..RHD..(3FC,5F);RT100,102,116,118..RHD;RT104..RHD..4F..(ARL,EUR,GEN) |
1 | ||
| 55040-20081 |
RT104..RHD..(3FC,5F);RT100,102,114,116,118..RHD;RT104..RHD..4F..(ARL,EUR,GEN) |
1 | ||
| 55040-20080 |
RT104..ARL;RT104..3FC..SA;RT100,102,112,116,117,118..RHD |
1 | ||
| 55040-20081 |
RT104..RHD..(3FC,5F);RT100,102,114,116,118..RHD;RT104..RHD..4F..(ARL,EUR,GEN) |
1 | ||
| 55401 - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55040-20081 |
RT104..RHD..(3FC,5F);RT100,102,116,118..RHD;RT104..RHD..4F..(ARL,EUR,GEN) |
1 | ||
| 55040-20081 |
RT104..RHD..(3FC,5F);RT100,102,114,116,118..RHD;RT104..RHD..4F..(ARL,EUR,GEN) |
1 | ||
| 55040-20080 |
RT104..ARL;RT104..3FC..SA;RT100,102,112,116,117,118..RHD |
1 | ||
| 55040-20081 |
RT104..RHD..(3FC,5F);RT100,102,114,116,118..RHD;RT104..RHD..4F..(ARL,EUR,GEN) |
1 | ||
| 55401 - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55040-20081 |
RT104..RHD..(3FC,5F);RT100,102,116,118..RHD;RT104..RHD..4F..(ARL,EUR,GEN) |
1 | ||
| 55040-20081 |
RT104..RHD..(3FC,5F);RT100,102,114,116,118..RHD;RT104..RHD..4F..(ARL,EUR,GEN) |
1 | ||
| 55040-20080 |
RT104..ARL;RT104..3FC..SA;RT100,102,112,116,117,118..RHD |
1 | ||
| 55040-20081 |
RT104..RHD..(3FC,5F);RT100,102,114,116,118..RHD;RT104..RHD..4F..(ARL,EUR,GEN) |
1 | ||
| 55427 - ORNAMENT, INSTRUMENT PANEL, CENTER | ||||
| 55416-20060 |
RT104..ARL;RT104..3FC..SA;RT100,102,112,114,116,117,118..RHD |
1 | ||
| 55416-20060 |
RT104..RHD..(3FC,5F);RT100,102,116,118..RHD;RT104..RHD..4F..(ARL,EUR,GEN) |
1 | ||
| 55427 - ORNAMENT, INSTRUMENT PANEL, CENTER | ||||
| 55416-20060 |
RT104..ARL;RT104..3FC..SA;RT100,102,112,114,116,117,118..RHD |
1 | ||
| 55416-20060 |
RT104..RHD..(3FC,5F);RT100,102,116,118..RHD;RT104..RHD..4F..(ARL,EUR,GEN) |
1 | ||
| 55427 - ORNAMENT, INSTRUMENT PANEL, CENTER | ||||
| 55416-20060 |
RT104..ARL;RT104..3FC..SA;RT100,102,112,114,116,117,118..RHD |
1 | ||
| 55416-20060 |
RT104..RHD..(3FC,5F);RT100,102,116,118..RHD;RT104..RHD..4F..(ARL,EUR,GEN) |
1 | ||
| 55450 - LOUVER ASSY, SIDE VENTILATOR, RH | ||||
| 55065-20010 |
RT10#,112,114,116,117,118..RHD |
1 | ||
| 55065-20020 |
RT10#,114,116,118..RHD |
1 | ||
| 55450 - LOUVER ASSY, SIDE VENTILATOR, RH | ||||
| 55065-20010 |
RT10#,112,114,116,117,118..RHD |
1 | ||
| 55065-20020 |
RT10#,114,116,118..RHD |
1 | ||
| 55450 - LOUVER ASSY, SIDE VENTILATOR, RH | ||||
| 55065-20010 |
RT10#,112,114,116,117,118..RHD |
1 | ||
| 55065-20020 |
RT10#,114,116,118..RHD |
1 | ||
| 55450A - SPRING, SIDE VENTILATOR LOUVER | ||||
| 55426-20020 |
RT10#,11# |
4 | ||
| 55450A - SPRING, SIDE VENTILATOR LOUVER | ||||
| 55426-20020 |
RT10#,11# |
4 | ||
| 55450A - SPRING, SIDE VENTILATOR LOUVER | ||||
| 55426-20020 |
RT10#,11# |
4 | ||
| 55453 - COVER, RADIO TUNER OPENING | ||||
| 55463-20041 |
RT10#,11# |
1 | ||
| 55463-20040 |
RT10#,11# |
1 | ||
| 55463-20041 |
RT114..GEN;RT10#,116,118;RT114..3FC..SA |
1 | ||
| 55453 - COVER, RADIO TUNER OPENING | ||||
| 55463-20041 |
RT10#,11# |
1 | ||
| 55463-20040 |
RT10#,11# |
1 | ||
| 55463-20041 |
RT114..GEN;RT10#,116,118;RT114..3FC..SA |
1 | ||
| 55461 - COVER, HEATER CONTROL HOLE | ||||
| 55949-20011 |
RT10#,11# |
1 | ||
| 55949-20010 |
RT10#,11# |
1 | ||
| 55488 - COVER, STEREO OPENING | ||||
| 55462-20071 |
RT10#,11# |
1 | ||
| 55462-20070 |
RT10#,11# |
1 | ||
| 55488 - COVER, STEREO OPENING | ||||
| 55462-20071 |
RT10#,11# |
1 | ||
| 55462-20070 |
RT10#,11# |
1 | ||
| 55489 - RETAINER, STEREO OPENING COVER, NO.1 | ||||
| 55475-20040 |
RT10#,11# |
1 | ||
| 55489 - RETAINER, STEREO OPENING COVER, NO.1 | ||||
| 55475-20040 |
RT10#,11# |
1 | ||
| 55489A - RETAINER, STEREO OPENING COVER, NO.2 | ||||
| 55394-20010 |
RT10#,11# |
1 | ||
| 55489A - RETAINER, STEREO OPENING COVER, NO.2 | ||||
| 55394-20010 |
RT10#,11# |
1 | ||
| Common parts | ||||
| 90183-05094 | ||||
| 90468-07138 | ||||
| 93219-15010 | ||||
| 93510-14010 | ||||
| 93510-15012 | ||||
| 93530-55025 | ||||
| Linked diagrams | ||||
| 8302 | ||||

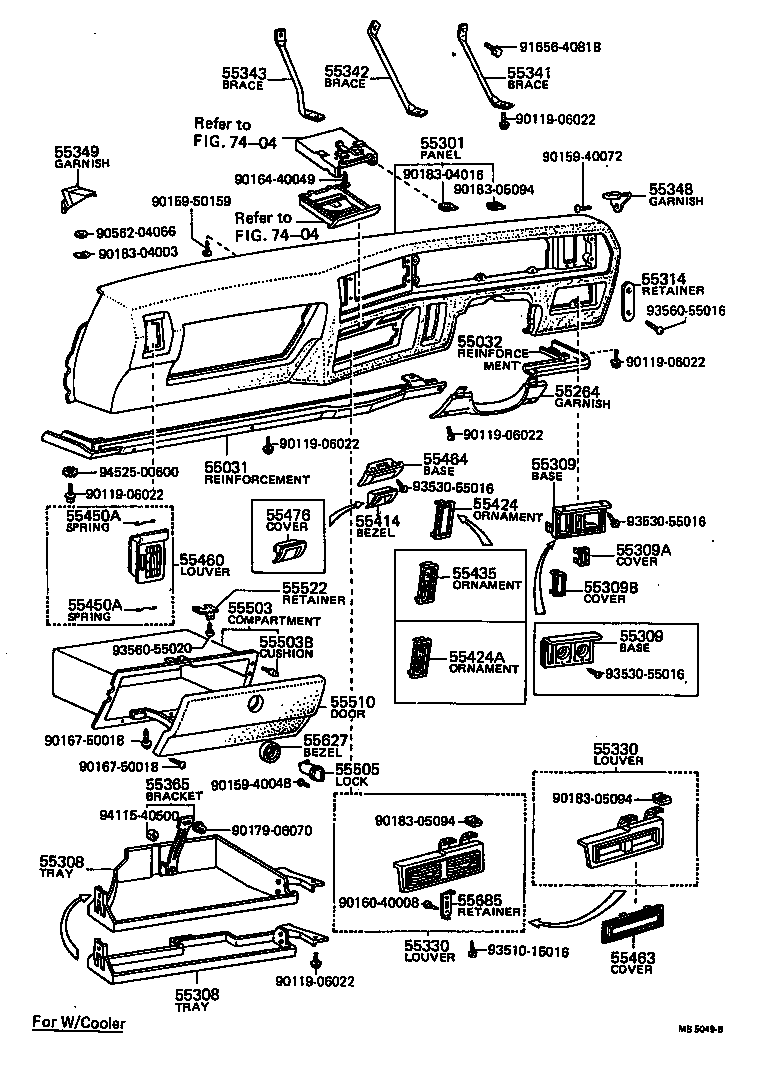

(7308-7701)RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55031 - REINFORCEMENT, INSTRUMENT PANEL, NO.1 | ||||
| 55032-20010 |
RT10#,112,114,116,117,118..RHD |
1 | ||
| 55032 - REINFORCEMENT, INSTRUMENT PANEL, NO.2 | ||||
| 55339-20040 |
RT10#,112,114,116,117,118..RHD |
1 | ||
| 55264 - GARNISH, STEERING COLUMN | ||||
| 55264-2001003 |
RT10#,112,114,116,117,118..RHD GRAY,GRAY,TRIM1# |
1 | ||
| 55264-2001001 |
RT10#,112,114,116,117,118..RHD BLACK,BLACK,TRIM1#,2#,8# |
1 | ||
| 55264-2001006 |
RT10#,112,114,116,117,118..RHD OLIVE-BROWN,BROWN,TRIM4# |
1 | ||
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55301-2014003 |
RT10#,112,114,116,117,118..RHD GRAY,GRAY,TRIM1# |
1 | ||
| 55301-2014006 |
RT10#,112,114,116,117,118..RHD OLIVE-BROWN,BROWN,TRIM4# |
1 | ||
| 55301-2014001 |
RT10#,112,114,116,117,118..RHD BLACK,BLACK,TRIM1#,2#,8# |
1 | ||
| 55308 - TRAY SUB-ASSY, INSTRUMENT PANEL UNDER | ||||
| 55308-20090 |
RT10#,112,114..RHD..DLX FOR W/COOLER |
1 | ||
| 55308-20070 |
RT10#,112,114..RHD..DLX |
1 | ||
| 55308 - TRAY SUB-ASSY, INSTRUMENT PANEL UNDER | ||||
| 55308-20090 |
RT10#,112,114..RHD..DLX FOR W/COOLER |
1 | ||
| 55308-20070 |
RT10#,112,114..RHD..DLX |
1 | ||
| 55309 - BASE SUB-ASSY, SWITCH | ||||
| 55309-20031 |
RT10#,11# |
1 | ||
| 55309-20030 |
RT10#,11# |
1 | ||
| 55309 - BASE SUB-ASSY, SWITCH | ||||
| 55309-20031 |
RT10#,11# |
1 | ||
| 55309-20030 |
RT10#,11# |
1 | ||
| 55309A - COVER, BASE SWITCH HOLE, NO.1 | ||||
| 55384-20011 |
RT10#,11# |
1 | ||
| 55384-20010 |
RT10#,11# |
1 | ||
| 55384-2001101 |
RT118..EUG;RT10#,114,116;RT118..ARL,GEN BLACK,BLACK,TRIM2# |
1 | ||
| 55384-2001105 |
RT118..EUG;RT10#,114,116;RT118..ARL,GEN BEIGE,BEIGE,TRIM4# |
1 | ||
| 55309B - COVER, BASE SWITCH HOLE, NO.2 | ||||
| 55385-20010 |
RT10#,11# |
1 | ||
| 55385-20011 |
RT10#,11# |
1 | ||
| 55314 - RETAINER, INSTRUMENT PANEL SIDE | ||||
| 55341-20020 |
RT10#,11# |
2 | ||
| 55330 - LOUVER ASSY, CENTER VENTILATOR | ||||
| 55460-2003003 |
RT10#,112,114,116,117,118..RHD FOR W/HEATER,GRAY,GRAY,TRIM1# |
1 | ||
| 55460-2003001 |
RT10#,112,114,116,117,118..RHD FOR W/HEATER,BLACK,BLACK,TRIM1#,2#,8# |
1 | ||
| 55460-2003101 |
RT10#,114,116,118..RHD FOR W/HEATER,BLACK,BLACK,TRIM1#,2#,8# |
1 | ||
| 55460-2005101 |
RT100,104,116,118..RHD FOR L/HEATER,BLACK,BLACK,TRIM1#,2# |
1 | ||
| 55460-2003106 |
RT10#,114,116,118..RHD FOR W/HEATER,OLIVE-BROWN,BROWN,TRIM4# |
1 | ||
| 55460-2005103 |
RT100,104,116,118..RHD FOR L/HEATER,GRAY,GRAY,TRIM1# |
1 | ||
| 55460-2005105 |
RT100,104,116,118..RHD FOR L/HEATER,BEIGE,BEIGE,TRIM4# |
1 | ||
| 55460-2003006 |
RT10#,112,114,116,117,118..RHD FOR W/HEATER,OLIVE-BROWN,BROWN,TRIM4# |
1 | ||
| 55330 - LOUVER ASSY, CENTER VENTILATOR | ||||
| 55460-2003003 |
RT10#,112,114,116,117,118..RHD FOR W/HEATER,GRAY,GRAY,TRIM1# |
1 | ||
| 55460-2003001 |
RT10#,112,114,116,117,118..RHD FOR W/HEATER,BLACK,BLACK,TRIM1#,2#,8# |
1 | ||
| 55460-2003101 |
RT10#,114,116,118..RHD FOR W/HEATER,BLACK,BLACK,TRIM1#,2#,8# |
1 | ||
| 55460-2005101 |
RT100,104,116,118..RHD FOR L/HEATER,BLACK,BLACK,TRIM1#,2# |
1 | ||
| 55460-2003106 |
RT10#,114,116,118..RHD FOR W/HEATER,OLIVE-BROWN,BROWN,TRIM4# |
1 | ||
| 55460-2005103 |
RT100,104,116,118..RHD FOR L/HEATER,GRAY,GRAY,TRIM1# |
1 | ||
| 55460-2005105 |
RT100,104,116,118..RHD FOR L/HEATER,BEIGE,BEIGE,TRIM4# |
1 | ||
| 55460-2003006 |
RT10#,112,114,116,117,118..RHD FOR W/HEATER,OLIVE-BROWN,BROWN,TRIM4# |
1 | ||
| 55341 - BRACE, INSTRUMENT PANEL, NO.1 | ||||
| 55727-20020 |
RT10#,112,114,116,117,118..RHD |
1 | ||
| 55342 - BRACE, INSTRUMENT PANEL, NO.2 | ||||
| 55728-20010 |
RT10#,112,114,116,117,118..RHD |
1 | ||
| 55343 - BRACE, INSTRUMENT PANEL, NO.3 | ||||
| 55729-20010 |
RT10#,11# |
1 | ||
| 55348 - GARNISH, INSTRUMENT PANEL SIDE, RH | ||||
| 55348-2002006 |
RT10#,112,114,116,117,118..RHD OLIVE-BROWN,BROWN,TRIM4# |
1 | ||
| 55348-2002001 |
RT10#,112,114,116,117,118..RHD BLACK,BLACK,TRIM1#,2#,8# |
1 | ||
| 55349 - GARNISH, INSTRUMENT PANEL SIDE, LH | ||||
| 55349-2002006 |
RT10#,112,114,116,117,118..RHD OLIVE-BROWN,BROWN,TRIM4# |
1 | ||
| 55349-2002001 |
RT10#,112,114,116,117,118..RHD BLACK,BLACK,TRIM1#,2#,8# |
1 | ||
| 55365 - BRACKET, INSTRUMENT PANEL UNDER TRAY | ||||
| 55365-20050 |
RT10#,110,112,114..DLX |
1 | ||
| 55414 - BEZEL, CIGAR LIGHTER HOLE | ||||
| 55414-20040 |
RT10#,11# |
1 | ||
| 55424 - ORNAMENT, CHOKE CONTROL | ||||
| 55429-20020 |
RT10#,110,112,116,117,118..EUR,GEN,PHL |
1 | ||
| 55429-2002001 |
RT100,104,11#..EUR,GEN,PHL BLACK,BLACK,TRIM2# |
1 | ||
| 55429-2002006 |
RT100,104,11#..EUR,GEN,PHL BROWN,BROWN,TRIM4# |
1 | ||
| 55424A - ORNAMENT, CHOKE CONTROL | ||||
| 55424-20040 |
RT100,110,116 |
1 | ||
| 55450A - SPRING, SIDE VENTILATOR LOUVER | ||||
| 55426-20020 |
RT10#,11# |
4 | ||
| 55450A - SPRING, SIDE VENTILATOR LOUVER | ||||
| 55426-20020 |
RT10#,11# |
4 | ||
| 55460 - LOUVER ASSY, SIDE VENTILATOR, LH | ||||
| 55445-20901 |
RT10#,11#..RHD |
1 | ||
| 55450-20122 |
RT10#,114,116,118..RHD |
1 | ||
| 55450-20121 |
RT10#,112,114,116,117,118..RHD |
1 | ||
| 55463 - COVER, CENTER VENTILATOR | ||||
| 55471-20040 |
RT100,104,116,118..RHD |
1 | ||
| 55464 - BASE, CIGARETTE LIGHTER | ||||
| 55474-2002003 |
RT10#,112,114,116,117,118..RHD GRAY,GRAY,TRIM1# |
1 | ||
| 55474-2002006 |
RT10#,112,114,116,117,118..RHD OLIVE-BROWN,BROWN,TRIM4# |
1 | ||
| 55474-2002001 |
RT10#,112,114,116,117,118..RHD BLACK,BLACK,TRIM1#,2#,8# |
1 | ||
| 55503 - COMPARTMENT SUB-ASSY, GLOVE | ||||
| 55531-20120 |
RT10#,112,114..RHD..DLX FOR W/LAMP HOLE |
1 | ||
| 55503B - CUSHION(FOR GLOVE COMPARTMENT) | ||||
| 90541-04142 |
RT10#,11# |
2 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55510-2027003 |
RT10#,112,114,116,117,118..RHD GRAY,GRAY,TRIM1# |
1 | ||
| 55510-2027001 |
RT10#,112,114,116,117,118..RHD BLACK,BLACK,TRIM1#,2#,8# |
1 | ||
| 55510-2027006 |
RT10#,112,114,116,117,118..RHD OLIVE-BROWN,BROWN,TRIM4# |
1 | ||
| 55522 - RETAINER, GLOVE COMPARTMENT MALE | ||||
| 55521-20050 |
RT10#,11# |
1 | ||
| 55627 - BEZEL, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55627-30011 |
RT10#,11# |
1 | ||
| 55685 - RETAINER,AIR GUIDE BLADE CASE, CENTER NO.1 | ||||
| 55697-20010 |
RT10#,11# |
1 | ||
| Common parts | ||||
| 90119-06022 | ||||
| 90159-40048 | ||||
| 90159-40072 | ||||
| 90159-50159 | ||||
| 90160-40008 | ||||
| 90164-40049 | ||||
| 90167-50018 | ||||
| 90179-06070 | ||||
| 90183-04003 | ||||
| 90183-04016 | ||||
| 90183-05094 | ||||
| 90562-04066 | ||||
| 91656-40818 | ||||
| 93510-15016 | ||||
| 93530-55016 | ||||
| 93560-55016 | ||||
| 93560-55020 | ||||
| 94115-40500 | ||||
| 94525-00600 | ||||
| Linked diagrams | ||||
| 7404 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
