Toyota Corona CT220 BRAKE TUBE & CLAMP

Manufacturers Home
Toyota
GR
CORONA
CT220L-AEMNX (1997)
4708 - BRAKE TUBE & CLAMP

CT220L-AEMNX (1997)

Toyota Corona

Production Oct 1997 - Jul 2000

Engine 2CT

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

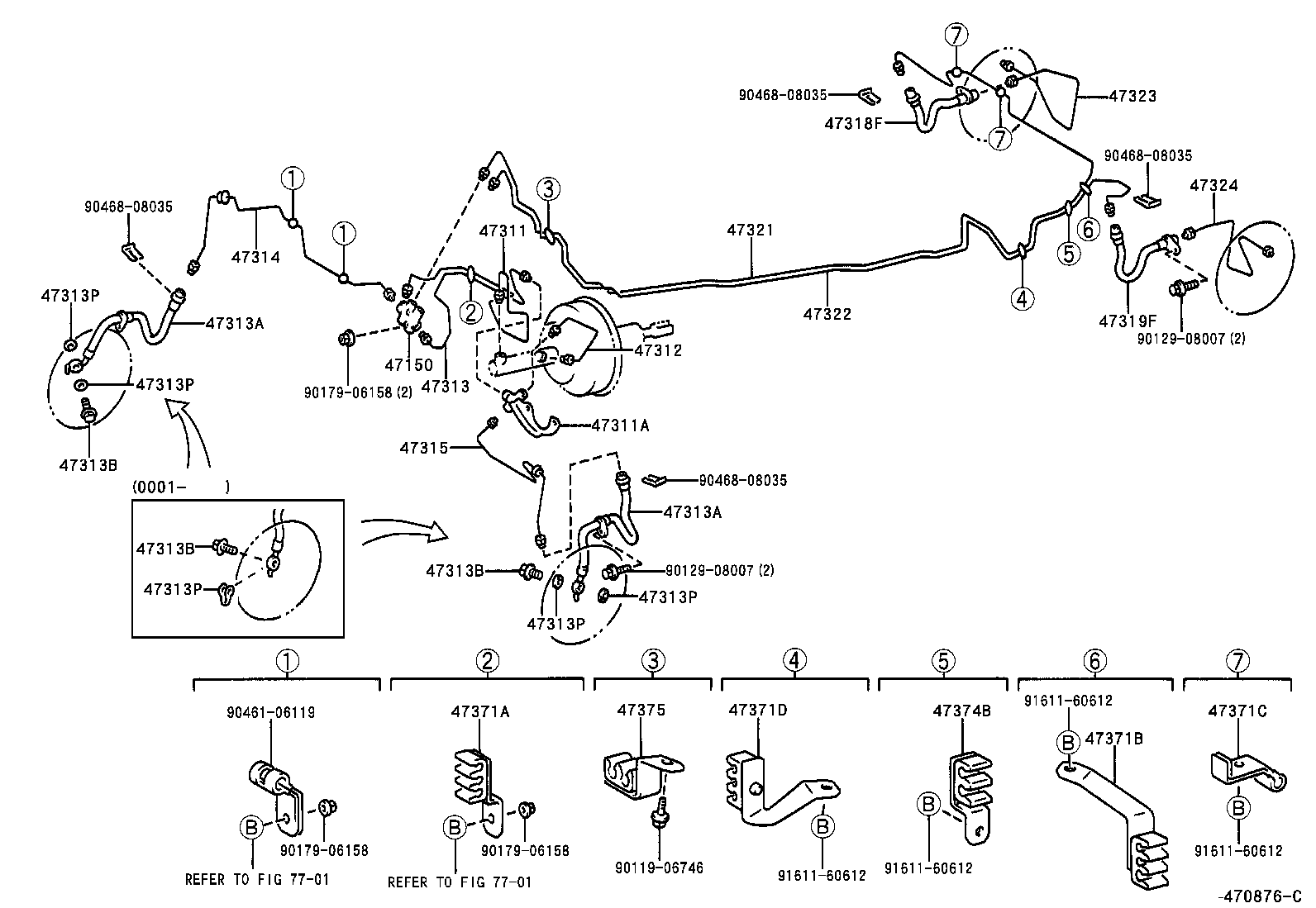

ILLUST NO. 1 OF 3(9710- )LHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
47150 - VALVE ASSY, PROPORTIONING
47150-33060	CT220 W(ABS), S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3	05/1999 - 07/2000	1
47150-33020	CT220 W(ABS), D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3	01/1999 - 05/1999	1
47150-12080	AT220,CT220,ST220 D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3	10/1997 - 05/1999	1
47150-20450	AT220,CT220,ST220 S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3	05/1999 - 12/2999	1
47311 - TUBE, FRONT BRAKE, NO.1
47311-05130	CT220,ST220..LHD W(ABS), D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3	01/1999 - 05/1999	1
47311-05151	AT220,CT220,ST220..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3	05/1999 - 12/2999	1
47311-05191	CT220,ST220..LHD W(ABS), S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3	05/1999 - 12/2999	1
47311-05150	AT220,CT220,ST220..LHD D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3	10/1997 - 05/1999	1
47311A - WAY(FOR FRONT BRAKE TUBE)
47391-05060	AT220,CT220,ST220..LHD	10/1997 - 07/2000	1
47391-05080	CT220,ST220..LHD W(ABS)	01/1999 - 07/2000	1
47312 - TUBE, FRONT BRAKE, NO.2
47311-05170	CT220,ST220..LHD W(ABS), D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3	01/1999 - 05/1999	1
47311-05160	AT220,CT220,ST220..LHD D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3	10/1997 - 05/1999	1
47311-05330	AT220,CT220,ST220..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3	05/1999 - 12/2999	1
47311-05340	CT220,ST220..LHD W(ABS), S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3	05/1999 - 12/2999	1
47313 - TUBE, FRONT BRAKE, NO.3
47313-05120	CT220,ST220..LHD W(ABS), D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3	01/1999 - 05/1999	1
47313-05140	AT220,CT220,ST220..LHD D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3	10/1997 - 05/1999	1
47313-05141	AT220,CT220,ST220..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3	05/1999 - 12/2999	1
47313-05151	CT220,ST220..LHD W(ABS), S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3	05/1999 - 12/2999	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90080-94060	AT220,CT220,ST220 D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3,RH	10/1997 - 05/1999	1
90080-94A61	AT220,CT220,ST220 S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3,LH	05/1999 - 12/2999	1
90080-94061	AT220,CT220,ST220 D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3,LH	10/1997 - 05/1999	1
90080-94A60	AT220,CT220,ST220 S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3,RH	05/1999 - 12/2999	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90080-94060	AT220,CT220,ST220 D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3,RH	10/1997 - 05/1999	1
90080-94A61	AT220,CT220,ST220 S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3,LH	05/1999 - 12/2999	1
90080-94061	AT220,CT220,ST220 D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3,LH	10/1997 - 05/1999	1
90080-94A60	AT220,CT220,ST220 S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3,RH	05/1999 - 12/2999	1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058	AT220,CT220,ST220	01/2000 - 12/2999	2
90401-10015	AT220,CT220,ST220	10/1997 - 01/2000	2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058	AT220,CT220,ST220	01/2000 - 12/2999	2
90401-10015	AT220,CT220,ST220	10/1997 - 01/2000	2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058	AT220,CT220,ST220	01/2000 - 12/2999	2
90401-10015	AT220,CT220,ST220	10/1997 - 01/2000	2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020	AT220,CT220,ST220	01/2000 - 12/2999	2
47389-30010	AT220,CT220,ST220	10/1997 - 01/2000	4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020	AT220,CT220,ST220	01/2000 - 12/2999	2
47389-30010	AT220,CT220,ST220	10/1997 - 01/2000	4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020	AT220,CT220,ST220	01/2000 - 12/2999	2
47389-30010	AT220,CT220,ST220	10/1997 - 01/2000	4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020	AT220,CT220,ST220	01/2000 - 12/2999	2
47389-30010	AT220,CT220,ST220	10/1997 - 01/2000	4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020	AT220,CT220,ST220	01/2000 - 12/2999	2
47389-30010	AT220,CT220,ST220	10/1997 - 01/2000	4
47314 - TUBE, FRONT BRAKE, NO.4
47314-05081	CT220,ST220..LHD W(ABS), S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3	05/1999 - 12/2999	1
47314-05080	CT220,ST220..LHD W(ABS), D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3	01/1999 - 05/1999	1
47314-05070	AT220,CT220,ST220..LHD D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3	10/1997 - 05/1999	1
47314-05071	AT220,CT220,ST220..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3	05/1999 - 12/2999	1
47315 - TUBE, FRONT BRAKE, NO.5
47315-05120	AT220,CT220,ST220..LHD D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3	10/1997 - 05/1999	1
47315-05121	AT220,CT220,ST220..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3	05/1999 - 12/2999	1
47315-05100	CT220,ST220..LHD W(ABS), D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3	01/1999 - 05/1999	1
47315-05131	CT220,ST220..LHD W(ABS), S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3	05/1999 - 07/2000	1
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90080-94065	AT220,CT220,ST220 D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3	10/1997 - 05/1999	1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90080-94066	AT220,CT220,ST220 D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3	10/1997 - 05/1999	1
47321 - TUBE, REAR BRAKE, NO.1
47321-05050	AT220,CT220,ST220 D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3	10/1997 - 05/1999	1
47322 - TUBE, REAR BRAKE, NO.2
47322-05050	AT220,CT220,ST220 D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3	10/1997 - 05/1999	1
47323 - TUBE, REAR BRAKE, NO.3
47323-05021	AT220,CT220,ST220 S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3	05/1999 - 12/2999	1
47323-05020	AT220,CT220,ST220 D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3	10/1997 - 05/1999	1
47324 - TUBE, REAR BRAKE, NO.4
47324-05021	AT220,CT220,ST220 S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3	05/1999 - 12/2999	1
47324-05020	AT220,CT220,ST220 D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3	10/1997 - 05/1999	1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-20610	AT220,CT220,ST220..LHD	10/1997 - 12/2999	1
47371B - CLAMP, BRAKE TUBE, NO.6
47371-20640	AT220,CT220,ST220	10/1997 - 12/2999	1
47371C - CLAMP, BRAKE TUBE, NO.7
90949-01806	AT220,CT220,ST220	10/1997 - 12/2999	2
47371D - CLAMP, BRAKE TUBE, NO.8
47371-20730	AT220,CT220,ST220	10/1997 - 12/2999	1
47374B - CLAMP, BRAKE TUBE, NO.4
47371-20500	AT220,CT220,ST220	10/1997 - 12/2999	1
47375 - CLAMP, BRAKE TUBE, NO.5
47371-20600	AT220,CT220,ST220	10/1997 - 12/2999	1
Common parts
90119-06746
90129-08007
90179-06158
90461-06119
90468-08035
91611-60612
Linked diagrams
7701

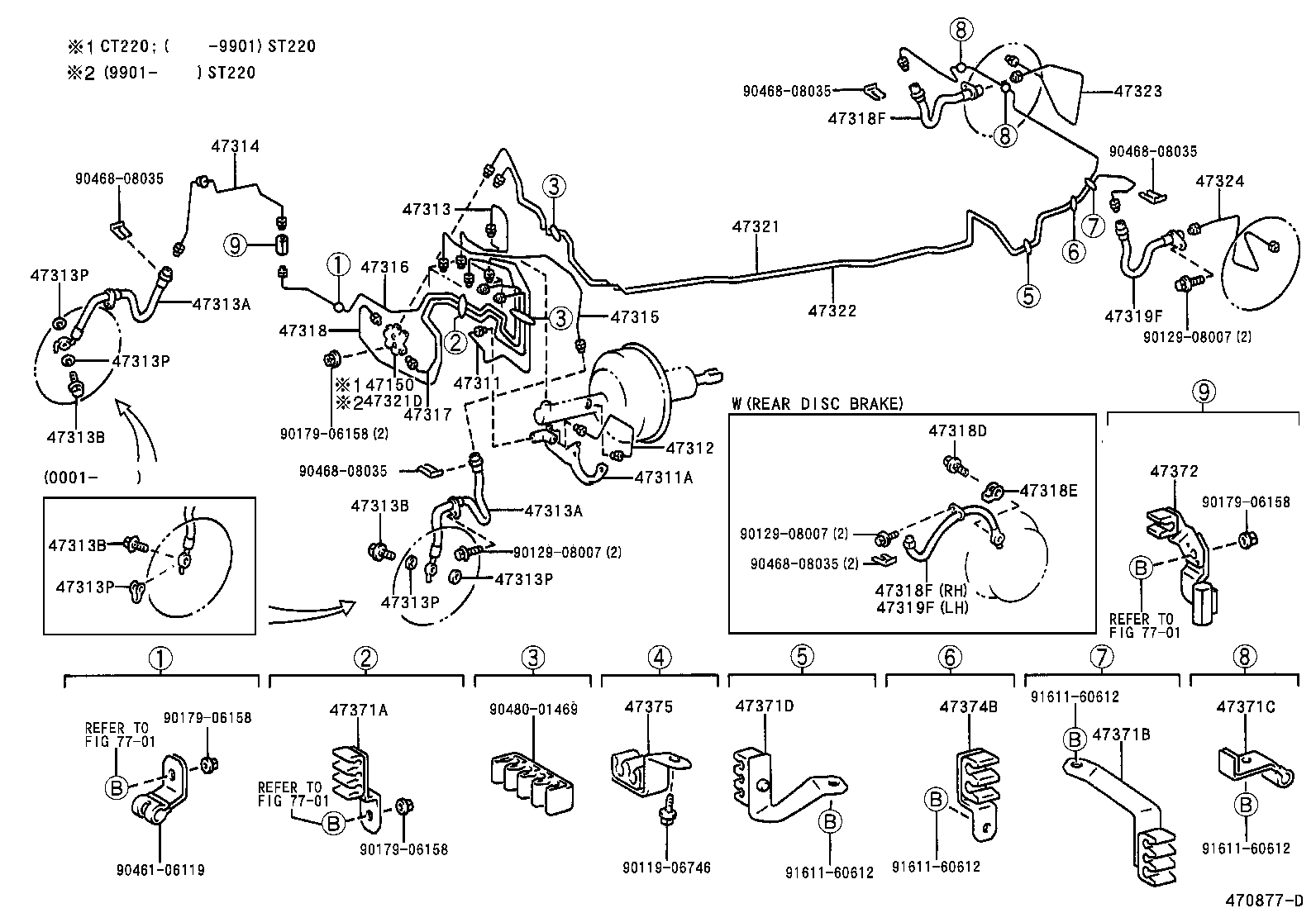

ILLUST NO. 1 OF 3(9710- )CT220,ST220..LHD

Click highlighted areas on diagram

W(ABS)

Part #	Description	Period	Qty
47150 - VALVE ASSY, PROPORTIONING
47150-33060	CT220 W(ABS), S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3	05/1999 - 07/2000	1
47150-33020	CT220 W(ABS), D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3	01/1999 - 05/1999	1
47150-12080	AT220,CT220,ST220 D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3	10/1997 - 05/1999	1
47150-20450	AT220,CT220,ST220 S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3	05/1999 - 12/2999	1
47311 - TUBE, FRONT BRAKE, NO.1
47311-05130	CT220,ST220..LHD W(ABS), D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3	01/1999 - 05/1999	1
47311-05151	AT220,CT220,ST220..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3	05/1999 - 12/2999	1
47311-05191	CT220,ST220..LHD W(ABS), S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3	05/1999 - 12/2999	1
47311-05150	AT220,CT220,ST220..LHD D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3	10/1997 - 05/1999	1
47311A - WAY(FOR FRONT BRAKE TUBE)
47391-05060	AT220,CT220,ST220..LHD	10/1997 - 07/2000	1
47391-05080	CT220,ST220..LHD W(ABS)	01/1999 - 07/2000	1
47312 - TUBE, FRONT BRAKE, NO.2
47311-05170	CT220,ST220..LHD W(ABS), D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3	01/1999 - 05/1999	1
47311-05160	AT220,CT220,ST220..LHD D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3	10/1997 - 05/1999	1
47311-05330	AT220,CT220,ST220..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3	05/1999 - 12/2999	1
47311-05340	CT220,ST220..LHD W(ABS), S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3	05/1999 - 12/2999	1
47313 - TUBE, FRONT BRAKE, NO.3
47313-05120	CT220,ST220..LHD W(ABS), D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3	01/1999 - 05/1999	1
47313-05140	AT220,CT220,ST220..LHD D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3	10/1997 - 05/1999	1
47313-05141	AT220,CT220,ST220..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3	05/1999 - 12/2999	1
47313-05151	CT220,ST220..LHD W(ABS), S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3	05/1999 - 12/2999	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90080-94060	AT220,CT220,ST220 D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3,RH	10/1997 - 05/1999	1
90080-94A61	AT220,CT220,ST220 S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3,LH	05/1999 - 12/2999	1
90080-94061	AT220,CT220,ST220 D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3,LH	10/1997 - 05/1999	1
90080-94A60	AT220,CT220,ST220 S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3,RH	05/1999 - 12/2999	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90080-94060	AT220,CT220,ST220 D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3,RH	10/1997 - 05/1999	1
90080-94A61	AT220,CT220,ST220 S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3,LH	05/1999 - 12/2999	1
90080-94061	AT220,CT220,ST220 D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3,LH	10/1997 - 05/1999	1
90080-94A60	AT220,CT220,ST220 S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3,RH	05/1999 - 12/2999	1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058	AT220,CT220,ST220	01/2000 - 12/2999	2
90401-10015	AT220,CT220,ST220	10/1997 - 01/2000	2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058	AT220,CT220,ST220	01/2000 - 12/2999	2
90401-10015	AT220,CT220,ST220	10/1997 - 01/2000	2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058	AT220,CT220,ST220	01/2000 - 12/2999	2
90401-10015	AT220,CT220,ST220	10/1997 - 01/2000	2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020	AT220,CT220,ST220	01/2000 - 12/2999	2
47389-30010	AT220,CT220,ST220	10/1997 - 01/2000	4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020	AT220,CT220,ST220	01/2000 - 12/2999	2
47389-30010	AT220,CT220,ST220	10/1997 - 01/2000	4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020	AT220,CT220,ST220	01/2000 - 12/2999	2
47389-30010	AT220,CT220,ST220	10/1997 - 01/2000	4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020	AT220,CT220,ST220	01/2000 - 12/2999	2
47389-30010	AT220,CT220,ST220	10/1997 - 01/2000	4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020	AT220,CT220,ST220	01/2000 - 12/2999	2
47389-30010	AT220,CT220,ST220	10/1997 - 01/2000	4
47314 - TUBE, FRONT BRAKE, NO.4
47314-05081	CT220,ST220..LHD W(ABS), S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3	05/1999 - 12/2999	1
47314-05080	CT220,ST220..LHD W(ABS), D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3	01/1999 - 05/1999	1
47314-05070	AT220,CT220,ST220..LHD D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3	10/1997 - 05/1999	1
47314-05071	AT220,CT220,ST220..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3	05/1999 - 12/2999	1
47315 - TUBE, FRONT BRAKE, NO.5
47315-05120	AT220,CT220,ST220..LHD D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3	10/1997 - 05/1999	1
47315-05121	AT220,CT220,ST220..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3	05/1999 - 12/2999	1
47315-05100	CT220,ST220..LHD W(ABS), D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3	01/1999 - 05/1999	1
47315-05131	CT220,ST220..LHD W(ABS), S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3	05/1999 - 07/2000	1
47316 - TUBE, FRONT BRAKE, NO.6
47316-05060	CT220,ST220..LHD D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3	01/1999 - 05/1999	1
47316-05071	CT220,ST220..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3	05/1999 - 12/2999	1
47317 - TUBE, FRONT BRAKE, NO.7
47317-05070	CT220,ST220..LHD D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3	01/1999 - 05/1999	1
47317-05081	CT220,ST220..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3	05/1999 - 12/2999	1
47318 - TUBE, FRONT BRAKE, NO.8
47318-05070	CT220,ST220..LHD D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3	01/1999 - 05/1999	1
47318-05081	CT220,ST220..LHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3	05/1999 - 12/2999	1
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90080-94065	AT220,CT220,ST220 D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3	10/1997 - 05/1999	1
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90080-94065	AT220,CT220,ST220 D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3	10/1997 - 05/1999	1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90080-94066	AT220,CT220,ST220 D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3	10/1997 - 05/1999	1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90080-94066	AT220,CT220,ST220 D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3	10/1997 - 05/1999	1
47321 - TUBE, REAR BRAKE, NO.1
47321-05050	AT220,CT220,ST220 D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3	10/1997 - 05/1999	1
47322 - TUBE, REAR BRAKE, NO.2
47322-05050	AT220,CT220,ST220 D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3	10/1997 - 05/1999	1
47323 - TUBE, REAR BRAKE, NO.3
47323-05021	AT220,CT220,ST220 S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3	05/1999 - 12/2999	1
47323-05020	AT220,CT220,ST220 D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3	10/1997 - 05/1999	1
47324 - TUBE, REAR BRAKE, NO.4
47324-05021	AT220,CT220,ST220 S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3	05/1999 - 12/2999	1
47324-05020	AT220,CT220,ST220 D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3	10/1997 - 05/1999	1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-20610	AT220,CT220,ST220..LHD	10/1997 - 12/2999	1
47371B - CLAMP, BRAKE TUBE, NO.6
47371-20640	AT220,CT220,ST220	10/1997 - 12/2999	1
47371C - CLAMP, BRAKE TUBE, NO.7
90949-01806	AT220,CT220,ST220	10/1997 - 12/2999	2
47371D - CLAMP, BRAKE TUBE, NO.8
47371-20730	AT220,CT220,ST220	10/1997 - 12/2999	1
47372 - CLAMP, BRAKE TUBE, NO.2
47371-20391	CT220,ST220..LHD	05/1999 - 12/2999	1
47371-20390	CT220,ST220..LHD	01/1999 - 05/1999	1
47374B - CLAMP, BRAKE TUBE, NO.4
47371-20500	AT220,CT220,ST220	10/1997 - 12/2999	1
47375 - CLAMP, BRAKE TUBE, NO.5
47371-20600	AT220,CT220,ST220	10/1997 - 12/2999	1
Common parts
90119-06746
90129-08007
90179-06158
90461-06119
90468-08035
90480-01469
91611-60612
Linked diagrams
7701

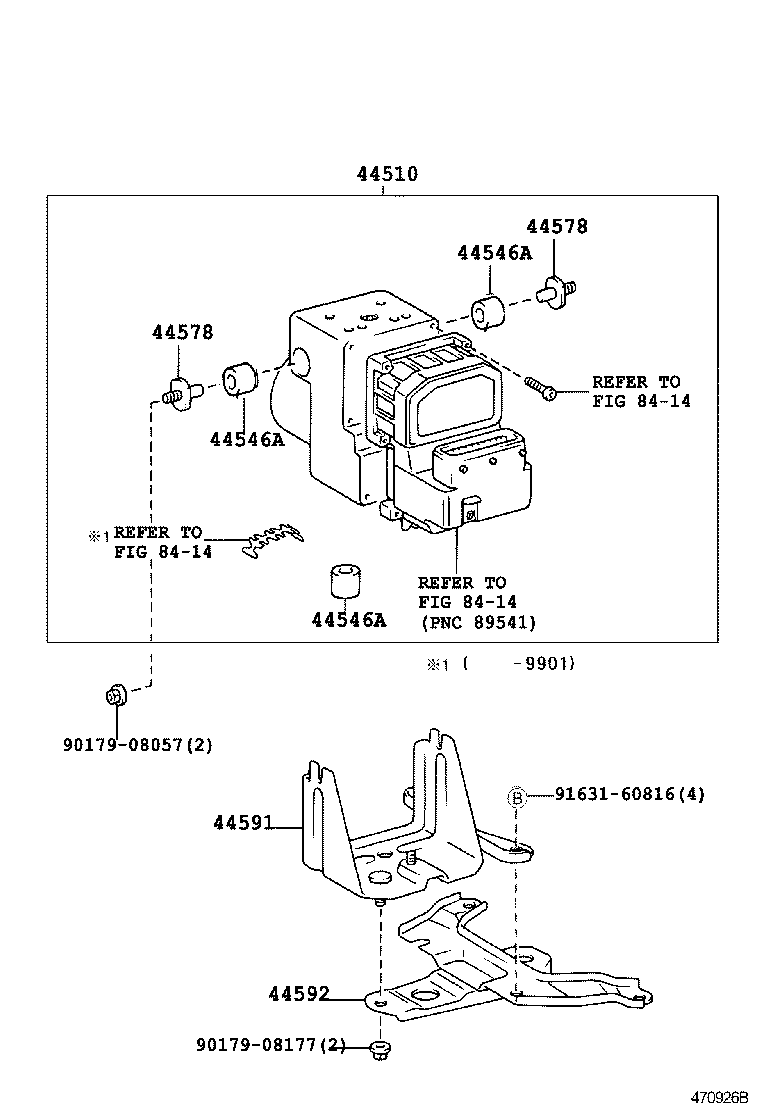

ILLUST NO. 2 OF 3(9710- )CT220,ST220..LHD

Click highlighted areas on diagram

W(ABS)

Part #	Description	Period	Qty
44510 - ACTUATOR ASSY, BRAKE
44050-05010	CT220,ST220..LHD	01/1999 - 07/2000	1
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-05020	CT220,ST220..LHD	01/1999 - 12/2999	3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-05020	CT220,ST220..LHD	01/1999 - 12/2999	3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-05020	CT220,ST220..LHD	01/1999 - 12/2999	3
44578 - BOLT, BRAKE ACTUATOR CUSHION
44578-05020	CT220,ST220..LHD	01/1999 - 12/2999	2
44578 - BOLT, BRAKE ACTUATOR CUSHION
44578-05020	CT220,ST220..LHD	01/1999 - 12/2999	2
44591 - BRACKET, BRAKE ACTUATOR, NO.1
44591-05020	CT220,ST220..LHD	01/1999 - 05/1999	1
44591-05030	CT220,ST220..LHD	05/1999 - 12/2999	1
44592 - BRACKET, BRAKE ACTUATOR, NO.2
44592-05020	CT220,ST220..LHD	01/1999 - 05/1999	1
44592-05030	CT220,ST220..LHD	05/1999 - 12/2999	1
Common parts
90179-08057
90179-08177
91631-60816
Linked diagrams
8414

ILLUST NO. 3 OF 3(9710- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price

CT220L-AEMNX (1997)

ILLUST NO. 1 OF 3(9710- )LHD

ILLUST NO. 1 OF 3(9710- )CT220,ST220..LHD

ILLUST NO. 2 OF 3(9710- )CT220,ST220..LHD

ILLUST NO. 3 OF 3(9710- )

Part Price Details
