CT220L-AEMNX (1997)

Toyota Corona

Production Oct 1997 - Jul 2000
Engine 2CT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9710- )LHD

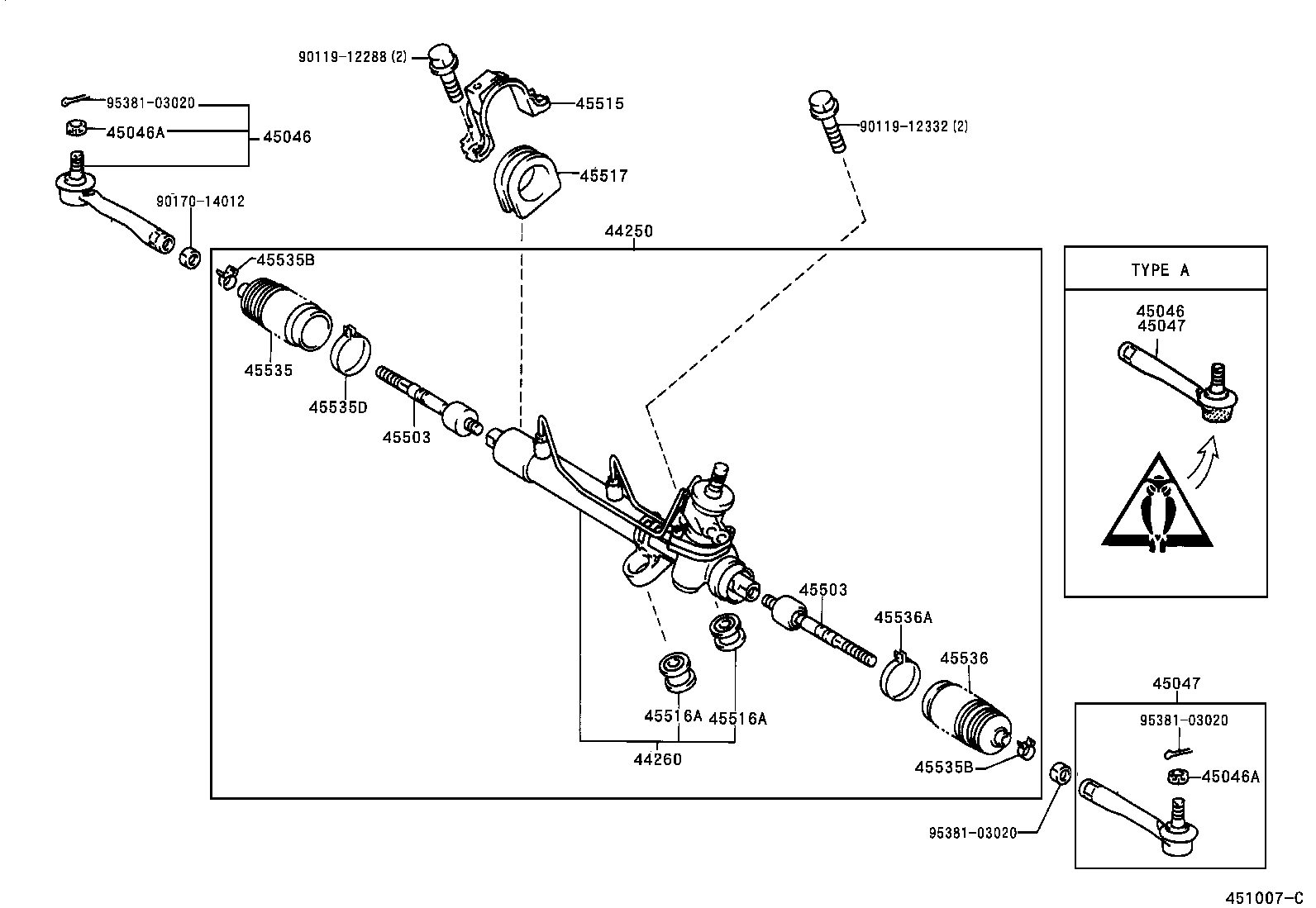

Click highlighted areas on diagram

diagram 44250 44260 45046 45046 45046A 45046A 45047 45047 45503 45503 45515 45516A 45516A 45517 45535 45535B 45535B 45535D 45536 45536A 9011912288 9011912332 9017014012 9538103020 9538103020 9538103020
Part # Description Qty Price
44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION)
44250-05060

AT220,CT220,ST220..LHD

 1
44260 - CYLINDER ASSY, POWER STEERING POWER
44260-05060

AT220,CT220,ST220..LHD

 1
45046 - END SUB-ASSY, TIE ROD, RH
45046-29365

AT220,CT220,ST220

 1
45046 - END SUB-ASSY, TIE ROD, RH
45046-29365

AT220,CT220,ST220

 1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

AT220,CT220,ST220

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

AT220,CT220,ST220

 2
45047 - END SUB-ASSY, TIE ROD, LH
45047-29125

AT220,CT220,ST220

 1
45047 - END SUB-ASSY, TIE ROD, LH
45047-29125

AT220,CT220,ST220

 1
45503 - END SUB-ASSY, STEERING RACK
45503-05020

AT220,CT220,ST220

 2
45503 - END SUB-ASSY, STEERING RACK
45503-05020

AT220,CT220,ST220

 2
45515 - BRACKET, STEERING RACK HOUSING, NO.2
45515-20270

CT220

 1
45516A - BUSH, STEERING RACK HOUSING, NO.1
45516-05020

AT220,CT220,ST220

 2
45516A - BUSH, STEERING RACK HOUSING, NO.1
45516-05020

AT220,CT220,ST220

 2
45517 - GROMMET, STEERING RACK HOUSING, NO.2
45517-05030

AT220,CT220,ST220

 1
45535 - BOOT, STEERING RACK, NO.1
45535-05020

AT220,CT220,ST220

 1
45535B - CLIP(FOR STEERING RACK BOOT)
90080-46222

AT220,CT220,ST220

 2
45535B - CLIP(FOR STEERING RACK BOOT)
90080-46222

AT220,CT220,ST220

 2
45535D - CLAMP(FOR STEERING RACK BOOT NO.1)
90080-46228

AT220,CT220,ST220

 1
45536 - BOOT, STEERING RACK, NO.2
45535-05020

AT220,CT220,ST220

 1
45536A - CLAMP(FOR STEERING RACK BOOT NO.2)
90080-46228

AT220,CT220,ST220

 1
Common parts
90119-12288
90119-12332
90170-14012
95381-03020
