CT220L-AEMNX (1997)

Toyota Corona

Production Oct 1997 - Jul 2000
Engine 2CT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9710-0007)2CT

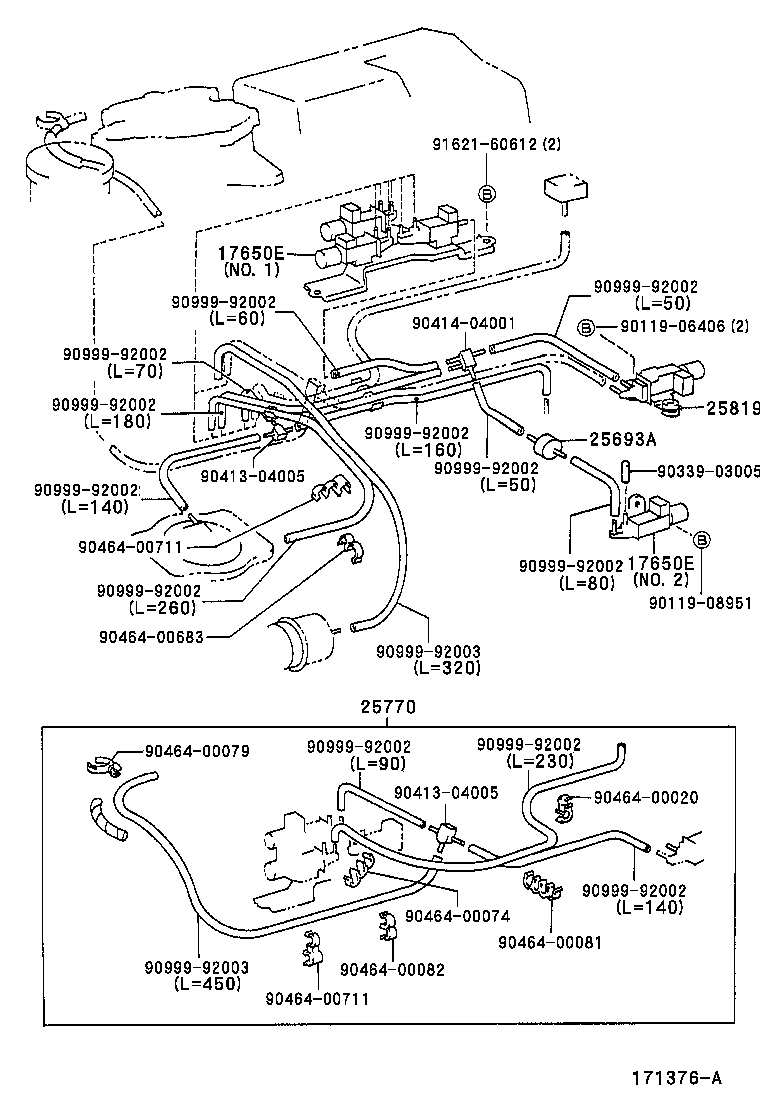

Click highlighted areas on diagram

diagram 17650E 17650E 25693A 25770 25819 9011906406 9011908951 9033903005 9041304005 9041304005 9041404001 9046400020 9046400074 9046400079 9046400081 9046400082 9046400683 9046400711 9046400711 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992003 9099992003 9162160612
Part # Description Qty Price
17650E - VALVE, VACUUM SWITCHING
25860-64130

2CT..CT220

NO.1

 1
25860-64150

2CT..CT220

NO.2

 1
17650E - VALVE, VACUUM SWITCHING
25860-64130

2CT..CT220

NO.1

 1
25860-64150

2CT..CT220

NO.2

 1
25693A - DAMPER, EGR VACUUM MODULATOR
25693-64010

2CT..CT220

 1
25770 - HOSE ASSY, VACUUM TRANSMITTING, NO.2
25770-64080

2CT..CT220

 1
25819 - VALVE ASSY, VACUUM REGULATING
25819-64070

2CT..CT220

 1
Common parts
90119-06406
90119-08951
90339-03005
90413-04005
90414-04001
90464-00020
90464-00074
90464-00079
90464-00081
90464-00082
90464-00683
90464-00711
90999-92002
90999-92003
91621-60612
