CT220L-AEMNX (1997)
Toyota Corona
ILLUST NO. 2 OF 2(9710-0007)2CT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-0B030 |
2CT..CT220 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 90080-34010 |
2CT..CT220 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 90080-30024 |
2CT..CT220 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-72090 |
2CT..CT220 |
1 | ||
| 16403F - CORE SUB-ASSY, RADIATOR | ||||
| 16403-0B030 |
2CT..CT220 |
1 | ||
| 16441 - TANK, RADIATOR, UPPER | ||||
| 16441-0B030 |
2CT..CT220 |
1 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16462-62050 |
2CT..CT220 |
1 | ||
| 16461 - TANK, RADIATOR, LOWER | ||||
| 16461-0B020 |
2CT..CT220 |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16462-62050 |
2CT..CT220 |
1 | ||

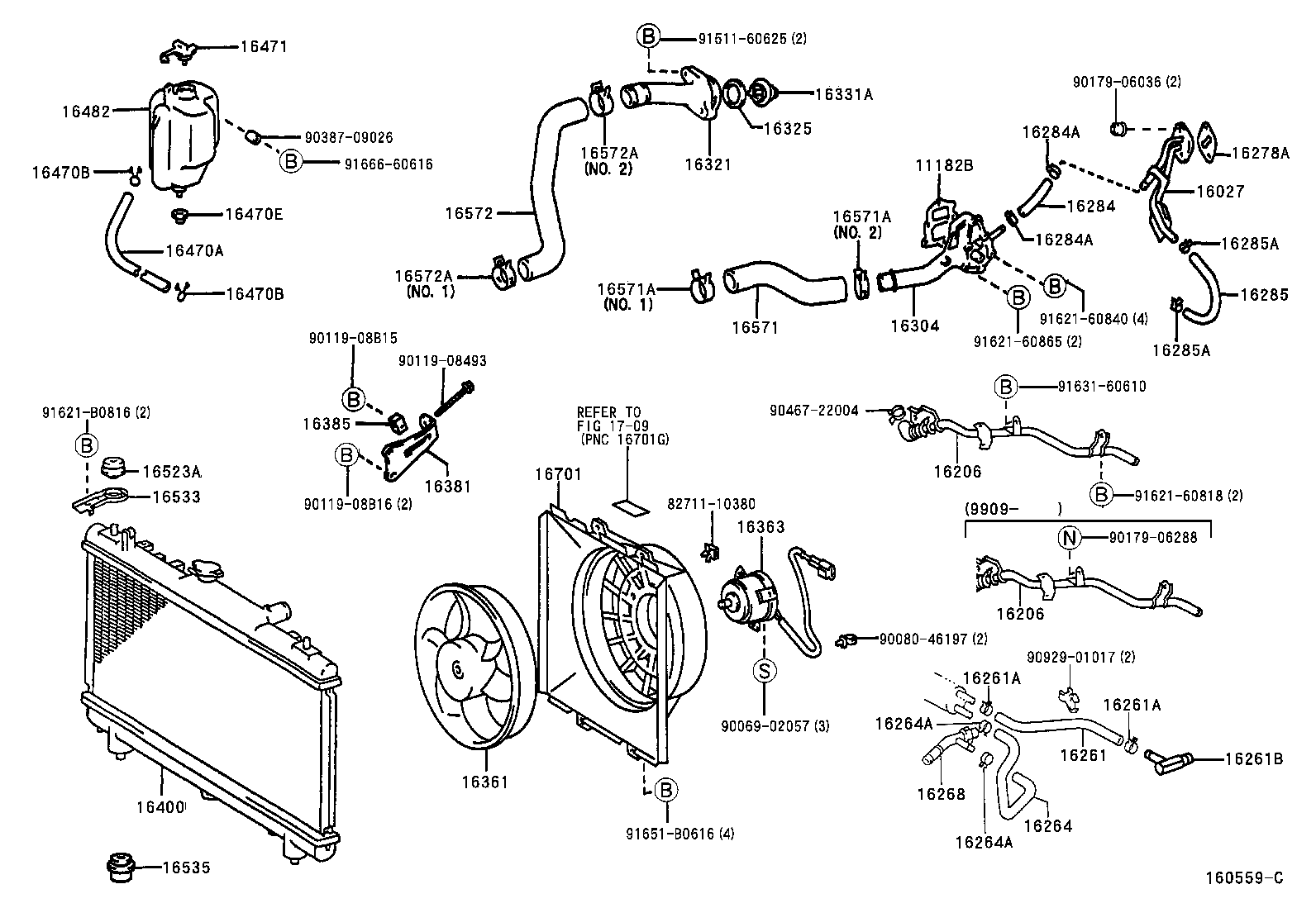

ILLUST NO. 1 OF 2(9710-0007)2CT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11182B - GASKET, CYLINDER HEAD REAR PLATE | ||||
| 11182-64021 |
2CT..CT220 |
1 | ||
| 16027 - PIPE SUB-ASSY, TURBO WATER, NO.1 | ||||
| 16027-64071 |
2CT..CT220 |
1 | ||
| 16206 - PIPE SUB-ASSY, WATER BY-PASS | ||||
| 16206-64010 |
2CT..CT220 |
1 | ||
| 16206 - PIPE SUB-ASSY, WATER BY-PASS | ||||
| 16206-64010 |
2CT..CT220 |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-64110 |
2CT..CT220 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
2CT..CT220 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
2CT..CT220 |
2 | ||
| 16261B - UNION(FOR WATER BY-PASS HOSE) | ||||
| 90404-53075 |
2CT..CT220 |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-64110 |
2CT..CT220 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15022 |
2CT..CT220 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15022 |
2CT..CT220 |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-64061 |
2CT..CT220 |
1 | ||
| 16278A - GASKET, WATER BY-PASS | ||||
| 16347-42020 |
2CT..CT220 |
1 | ||
| 16284 - HOSE, TURBO WATER, NO.1 | ||||
| 16284-64061 |
2CT..CT220 |
1 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 90467-13128 |
2CT..CT220 |
2 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 90467-13128 |
2CT..CT220 |
2 | ||
| 16285 - HOSE, TURBO WATER, NO.2 | ||||
| 99556-10200 |
2CT..CT220 *H,L=180 |
1 | ||
| 16285A - CLIP(FOR TURBO WATER HOSE NO.2) | ||||
| 90467-13128 |
2CT..CT220 |
2 | ||
| 16285A - CLIP(FOR TURBO WATER HOSE NO.2) | ||||
| 90467-13128 |
2CT..CT220 |
2 | ||
| 16304 - OUTLET SUB-ASSY, WATER | ||||
| 16304-64010 |
2CT..CT220 |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-64020 |
2CT..CT220 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-63011 |
2CT..CT220 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03046 |
2CT..CT220 *WAX 82-95 |
1 | ||
| 16361 - FAN | ||||
| 16361-0B010 |
2CT..CT220 |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-0B010 |
2CT..CT220 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-64151 |
2CT..CT220 |
1 | ||
| 16385 - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-64011 |
2CT..CT220 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-0B030 |
2CT..CT220 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16472-02070 |
2CT..CT220 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90466-11001 |
2CT..CT220 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90466-11001 |
2CT..CT220 |
1 | ||
| 16470E - GROMMET, RADIATOR RESERVE TANK HOSE | ||||
| 90080-48049 |
2CT..CT220 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-02070 |
2CT..CT220 |
1 | ||
| 16482 - TANK SUB-ASSY, RADIATOR RESERVE | ||||
| 16482-02070 |
2CT..CT220 |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-27010 |
2CT..CT220 |
2 | ||
| 16523-74010 |
2CT..CT220 |
2 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16533-64180 |
2CT..CT220 |
2 | ||
| 16533-27010 |
2CT..CT220 |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-64120 |
2CT..CT220 |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-0B010 |
2CT..CT220 |
1 | ||
| 16571-64350 |
2CT..CT220 |
1 | ||
| 16571-64260 |
2CT..CT220 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37002 |
2CT..CT220 NO.2 |
1 | ||
| 90467-34004 |
2CT..CT220 NO.1 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37002 |
2CT..CT220 NO.2 |
1 | ||
| 90467-34004 |
2CT..CT220 NO.1 |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-0B020 |
2CT..CT220 |
1 | ||
| 16572-64270 |
2CT..CT220 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-34004 |
2CT..CT220 NO.1 |
1 | ||
| 90467-37002 |
2CT..CT220 NO.2 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-34004 |
2CT..CT220 NO.1 |
1 | ||
| 90467-37002 |
2CT..CT220 NO.2 |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-0B010 |
2CT..CT220 |
1 | ||
| Common parts | ||||
| 82711-10380 | ||||
| 90069-02057 | ||||
| 90080-46197 | ||||
| 90119-08493 | ||||
| 90119-08B15 | ||||
| 90119-08B16 | ||||
| 90179-06036 | ||||
| 90179-06288 | ||||
| 90387-09026 | ||||
| 90467-22004 | ||||
| 90929-01017 | ||||
| 91511-60625 | ||||
| 91621-60818 | ||||
| 91621-60840 | ||||
| 91621-60865 | ||||
| 91621-B0816 | ||||
| 91631-60610 | ||||
| 91651-B0616 | ||||
| 91666-60616 | ||||
| Linked diagrams | ||||
| 1709 | ||||
