AT220R-AEMNK (1997)

Toyota Corona

Production Oct 1997 - Jul 2000
Engine 4AFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9710-0007)AT220..RHD

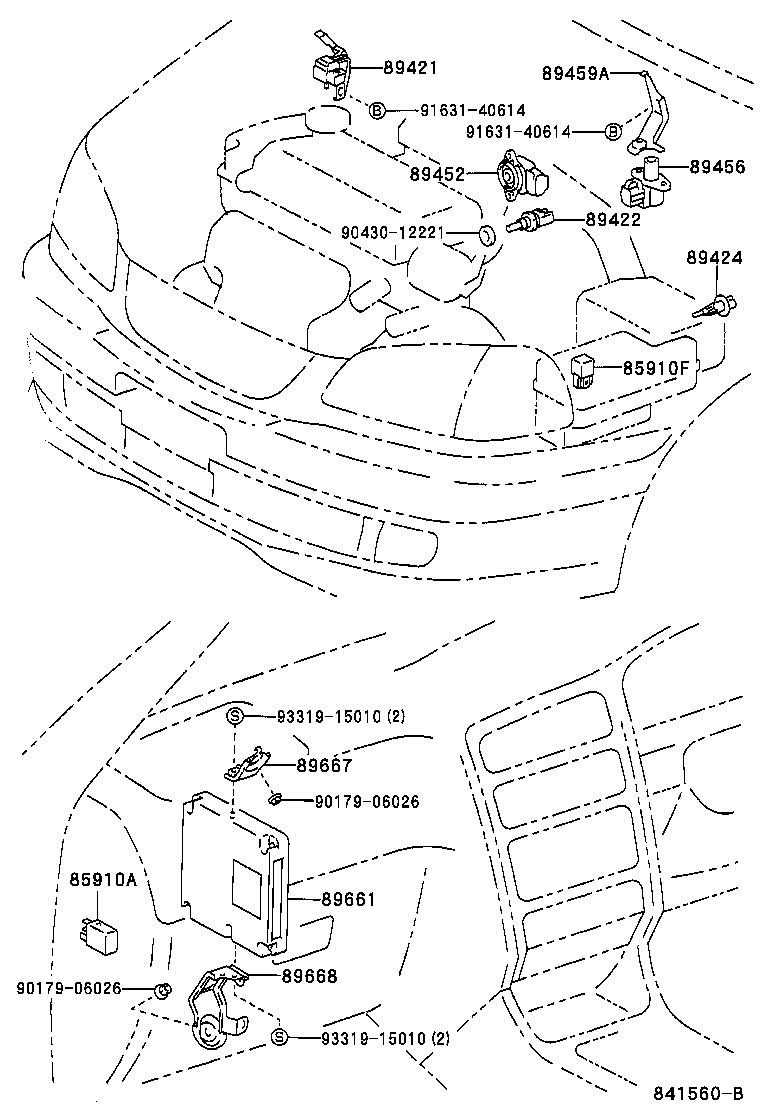

Click highlighted areas on diagram

diagram 85910A 85910F 89421 89422 89424 89452 89456 89459A 89661 89667 89668 9017906026 9017906026 9043012221 9163140614 9163140614 9331915010 9331915010
Part # Description Qty Price
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
90080-87013

AT220,ST220

 1
85910F - RELAY, COMPUTER (FOR EFI)
90080-87013

AT220,ST220

 1
89421 - SENSOR ASSY, VACUUM (FOR E.F.I.)
89420-20250

AT220,ST220

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-35010

AT220,ST220

 1
89424 - SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)
89424-12010

AT220,ST220

 1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-33030

AT220..RHD

 1
89456 - RESISTOR, VARIABLE
89456-30010

AT220,ST220

 1
89459A - BRACKET, VARIABLE RESISTOR
89459-20030

AT220,ST220

 1
89661 - COMPUTER, ENGINE CONTROL
89661-2D670

AT220..MTM

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-05010

AT220,ST220

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-05010

AT220,ST220..RHD

 1
Common parts
90179-06026
90430-12221
91631-40614
93319-15010
