AT220R-AEMNK (1997)

Toyota Corona

Production Oct 1997 - Jul 2000
Engine 4AFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9710-0007)4AFE ; (9710- )3SFE

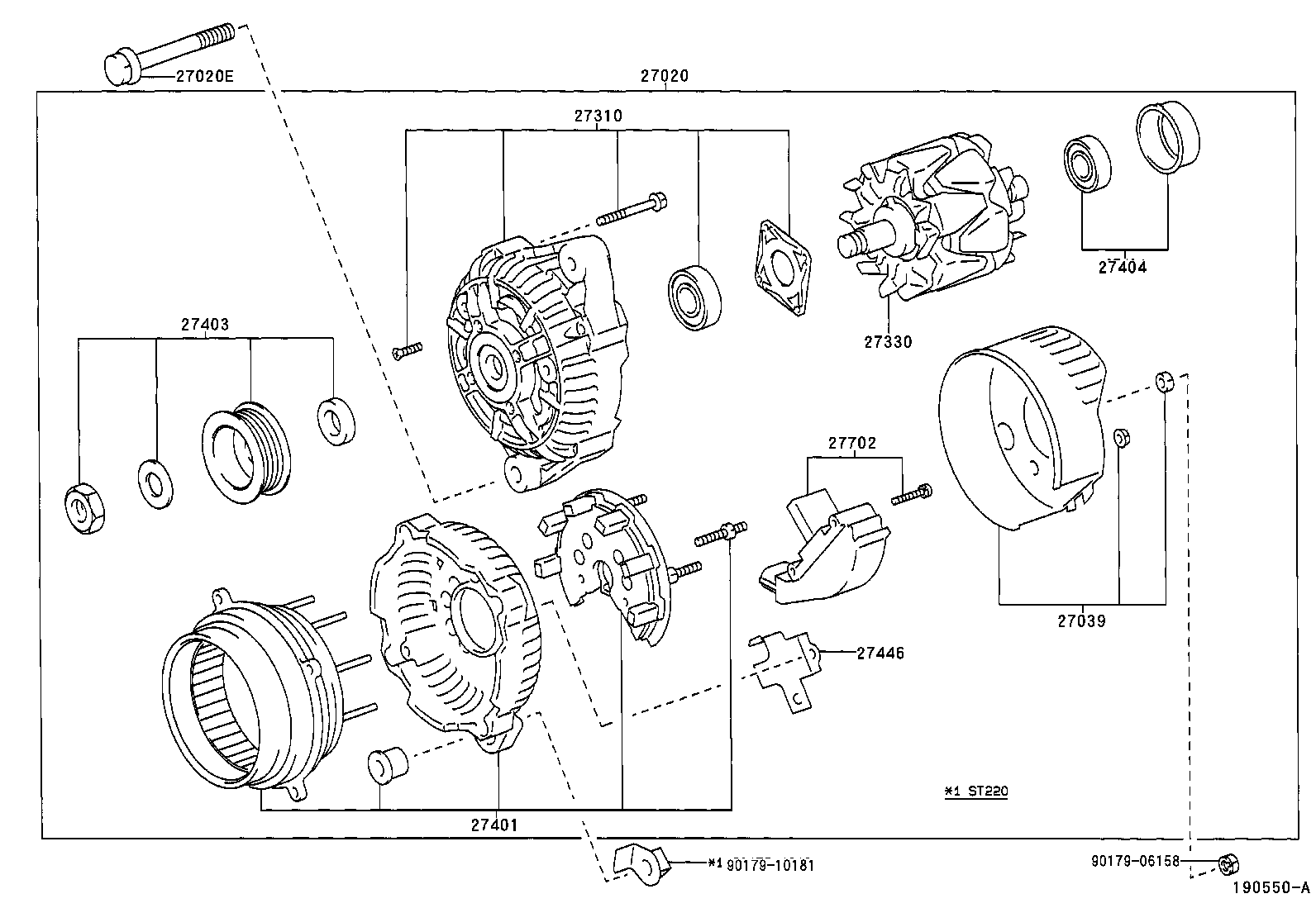

Click highlighted areas on diagram

12V 70A

diagram 27020 27020E 27039 27310 27330 27401 27403 27404 27446 27702 9017906158 9017910181
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-02100

4AFE..AT220

12V 70A

 1
27020E - BOLT(FOR ALTERNATOR)
90105-10336

4AFE..AT220

 1
27039 - COVER, ALTERNATOR REAR END
27039-02100

4AFE,3SFE..AT220,ST220

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-02100

4AFE..AT220

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-02020

4AFE,3SFE..AT220,ST220

 1
27401 - STATOR SUB-ASSY ALTERNATOR W/RECTIFIER
27401-02010

4AFE..AT220

 1
27403 - PULLEY SET, ALTERNATOR
27403-02010

4AFE..AT220

 1
27404 - BEARING SET, ALTERNATOR
27404-02020

4AFE,3SFE..AT220,ST220

 1
27446 - CLIP, ALTERNATOR CORD
27446-02090

4AFE..AT220

 1
27702 - REGULATOR SUB-ASSY GENERATOR W/BRUSH
27702-02020

4AFE..AT220

 1
Common parts
90179-06158
90179-10181
