AT220R-AEMNK (1997)

Toyota Corona

Production Oct 1997 - Jul 2000
Engine 4AFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9710-0007)4AFE

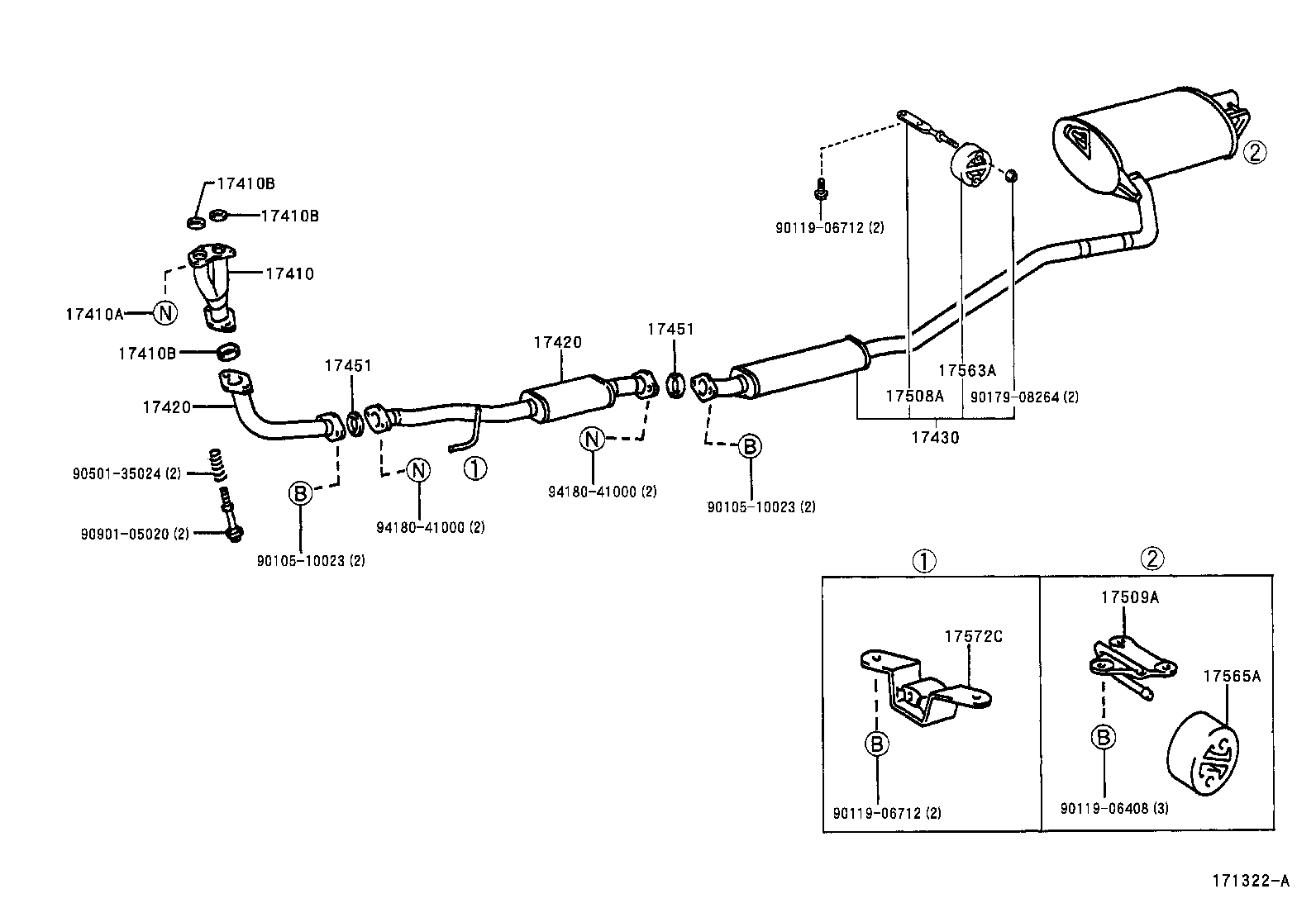

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17410B 17410B 17420 17420 17430 17451 17451 17508A 17509A 17563A 17565A 17572C 9010510023 9010510023 9011906408 9011906712 9011906712 9017908264 9050135024 9090105020 9418041000 9418041000
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-02350

4AFE..AT220

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

4AFE,3SFE..AT220,ST220

 3
17410B - GASKET, EXHAUST PIPE
17451-02030

4AFE,3SFE..AT220,ST220

REAR

 1
90917-06064

4AFE..AT220

FRONT

 2
17410B - GASKET, EXHAUST PIPE
17451-02030

4AFE,3SFE..AT220,ST220

REAR

 1
90917-06064

4AFE..AT220

FRONT

 2
17410B - GASKET, EXHAUST PIPE
17451-02030

4AFE,3SFE..AT220,ST220

REAR

 1
90917-06064

4AFE..AT220

FRONT

 2
17420 - PIPE ASSY, EXHAUST, CENTER
17420-02140

4AFE..AT220

FRONT

 1
17420-02120

4AFE,3SFE..AT220,ST220

REAR

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-02140

4AFE..AT220

FRONT

 1
17420-02120

4AFE,3SFE..AT220,ST220

REAR

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-02180

4AFE,3SFE..AT220,ST220

 1
17430-02181

4AFE,3SFE..AT220,ST220

 1
17451 - GASKET, EXHAUST PIPE
90917-06046

4AFE,3SFE..AT220,ST220

 2
17451 - GASKET, EXHAUST PIPE
90917-06046

4AFE,3SFE..AT220,ST220

 2
17508A - BRACKET SUB-ASSY, EXHAUST PIPE NO.3 SUPPORT
17508-02050

4AFE,2CT,3SFE..AT220,CT220,ST220

 1
17509A - BRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT
17509-02020

4AFE,2CT,3SFE..AT220,CT220,ST220

 1
17563A - SUPPORT, EXHAUST PIPE, NO.3
17565-16270

4AFE,2CT,3SFE..AT220,CT220,ST220

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-16270

4AFE,2CT,3SFE..AT220,CT220,ST220

 1
17572C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-74430

4AFE,3SFE..AT220,ST220

 1
Common parts
90105-10023
90119-06408
90119-06712
90179-08264
90501-35024
90901-05020
94180-41000
