AT220L-AEPNK (1997)

Toyota Corona

Production Oct 1997 - Jul 2000
Engine 4AFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9710-0007)AT220..ATM

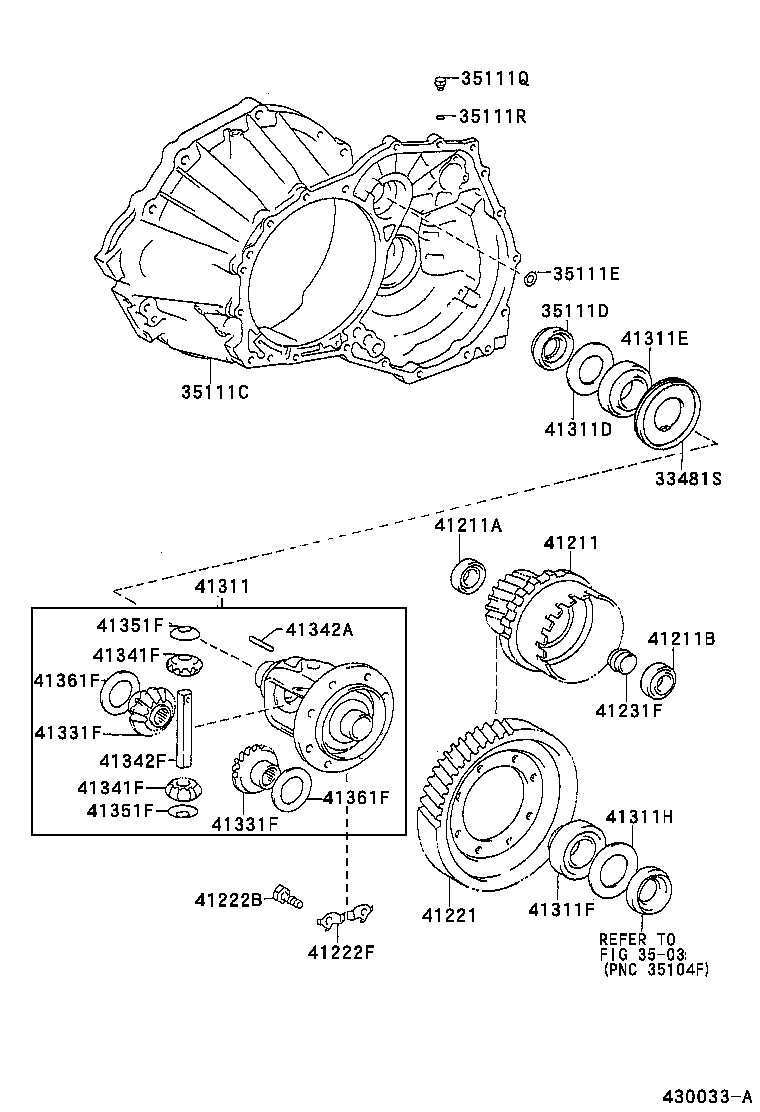

Click highlighted areas on diagram

A245E

diagram 33481S 3503 35111C 35111D 35111E 35111Q 35111R 41211 41211A 41211B 41221 41222B 41222F 41231F 41311 41311D 41311E 41311F 41311H 41331F 41331F 41341F 41341F 41342A 41342F 41351F 41351F 41361F 41361F
Part # Description Qty Price
33481S - GEAR, SPEEDOMETER DRIVE (ATM)
33481-12040

AT220..ATM

N=35,MARK 35X29-31

 1
35111C - HOUSING, TRANSAXLE
35105-20030

AT220..ATM

 1
35111D - SEAL, OIL (FOR TRANSAXLE HOUSING)
90311-34012

AT220..ATM

 1
90311-34023

AT220..ATM

 1
35111E - WASHER, SEAL (FOR FRONT TRANSAXLE HOUSING)
90210-13002

AT220,ST220..ATM

 1
35111Q - PLUG, NO.2 (FOR TRANSAXLE HOUSING)
90341-08001

AT220,ST220..ATM

 1
35111R - RING, O (FOR TRANSAXLE HOUSING PLUG NO.2)
90301-06196

AT220,ST220..ATM

 1
41211 - PINION, DIFFERENTIAL DRIVE
41206-20070

AT220..ATM

 1
41211A - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT)
90366-30020

AT220..ATM

 1
41211B - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)
90366-30019

AT220..ATM

 1
41221 - GEAR, FRONT DIFFERENTIAL RING
41221-20230

AT220..ATM

 1
41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
90101-11353

AT220,ST220..ATM

 8
41222F - PLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK
41222-12050

AT220..ATM

 4
41231F - SPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING
41231-12030

AT220..ATM

 1
41311 - CASE, FRONT DIFFERENTIAL
41301-20150

AT220..ATM

 1
41311D - SHIM (FOR FRONT DIFFERENTIAL CASE FRONT)
90201-41024

AT220..ATM

T=2.00,MARK V

 1
41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR
90368-38010

AT220..ATM

 1
41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE
90366-42001

AT220..ATM

 1
41311H - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR)
90201-41024

AT220..ATM

T=2.00,MARK V

 1
90201-41031

AT220..ATM

T=2.65,MARK G

 1
90201-41025

AT220..ATM

T=2.35,MARK A

 1
90201-41034

AT220..ATM

T=2.80,MARK K

 1
90201-41027

AT220..ATM

T=2.45,MARK C

 1
90201-41032

AT220..ATM

T=2.70,MARK H

 1
90201-41035

AT220..ATM

T=2.85,MARK L

 1
90201-41028

AT220..ATM

T=2.50,MARK D

 1
90201-41030

AT220..ATM

T=2.60,MARK F

 1
90201-41033

AT220..ATM

T=2.75,MARK J

 1
90201-41044

AT220..ATM

T=2.05,MARK W

 1
90201-41041

AT220..ATM

T=2.20,MARK S

 1
90201-41039

AT220..ATM

T=2.10,MARK Q

 1
90201-41036

AT220..ATM

T=2.90,MARK M

 1
90201-41029

AT220..ATM

T=2.55,MARK E

 1
90201-41040

AT220..ATM

T=2.15,MARK R

 1
90201-41043

AT220..ATM

T=2.30,MARK U

 1
90201-41026

AT220..ATM

T=2.40,MARK B

 1
90201-41042

AT220..ATM

T=2.25,MARK T

 1
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-12011

AT220

 2
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-12011

AT220

 2
41341F - PINION, FRONT DIFFERENTIAL
41341-12030

AT220

 2
41341F - PINION, FRONT DIFFERENTIAL
41341-12030

AT220

 2
41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
90250-06058

AT220,CT220,ST220

 1
41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1
41342-20060

AT220..ATM

 1
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-12020

AT220

 2
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-12020

AT220

 2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-17010

AT220,ST220..ATM

T=0.95

 2
41361-17020

AT220,ST220..ATM

T=1.00

 2
41361-17040

AT220,ST220..ATM

T=1.10

 2
41361-17030

AT220,ST220..ATM

T=1.05

 2
41361-17050

AT220,ST220..ATM

T=1.15

 2
41361-17060

AT220,ST220..ATM

T=1.20

 2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-17010

AT220,ST220..ATM

T=0.95

 2
41361-17020

AT220,ST220..ATM

T=1.00

 2
41361-17040

AT220,ST220..ATM

T=1.10

 2
41361-17030

AT220,ST220..ATM

T=1.05

 2
41361-17050

AT220,ST220..ATM

T=1.15

 2
41361-17060

AT220,ST220..ATM

T=1.20

 2
Linked diagrams
3503
