AT210R-AEPNK (1996)

Toyota Corona

Production Jan 1996 - Dec 2001
Engine 4AFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(9601- )

Click highlighted areas on diagram

diagram 67603 67603A 67603E 67604 67772F 68173B 68174A
Part # Description Qty Price
67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH
67630-2G160B0

AT210,ST210

SHADOW GRAY,TRIM11

 1
67630-2G160B3

AT210,ST210

SHADOW GRAY,TRIM1#

 1
67630-2G160B6

AT210,ST210

DK. CHARCOAL,TRIM17

 1
67630-2G160E3

AT210,ST210

ANTELOPE,TRIM4#

 1
67603A - RETAINER(FOR REAR DOOR TRIM BOARD)
67771-28020

AT210,ST210

 8
67771-32140

AT210,ST210

 8
67603E - CLIP(FOR REAR DOOR TRIM BOARD)
90467-07170B0

AT210,ST210

SHADOW GRAY,TRIM1#

 4
90467-07170E0

AT210,ST210

ANTELOPE,TRIM4#

 4
90467-07170B1

AT210,ST210

DK.CHARCOAL,TRIM17

 4
90467-07170B0

AT210,ST210

SHADOW GRAY,TRIM11

 4
67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH
67640-2G150E3

AT210,ST210

ANTELOPE,TRIM4#

 1
67640-2G150B3

AT210,ST210

SHADOW GRAY,TRIM1#

 1
67640-2G150B0

AT210,ST210

SHADOW GRAY,TRIM11

 1
67640-2G150B6

AT210,ST210

DK. CHARCOAL,TRIM17

 1
67772F - CAP, REAR DOOR TRIM RETAINER
67772-32020

AT210,ST210

 4
68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH
68173-20110

AT210,ST210

 1
68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH
68174-20060

AT210,ST210

 1

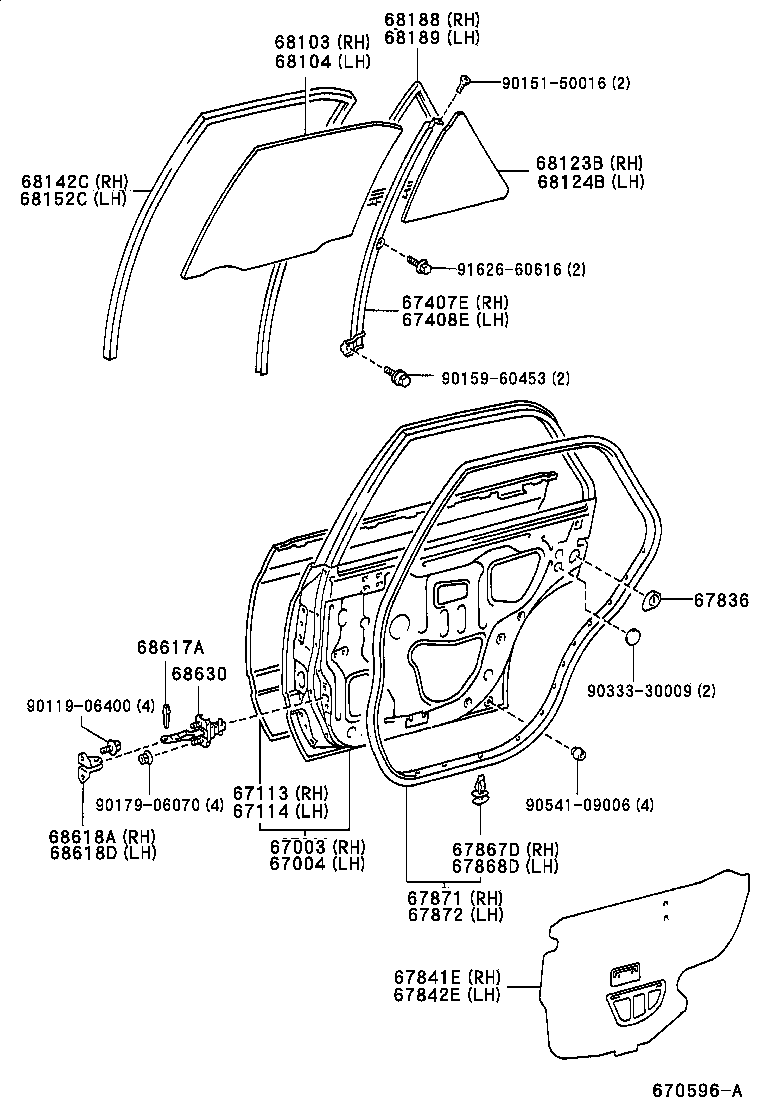

ILLUST NO. 2 OF 2(9601- )

Click highlighted areas on diagram

diagram 67003 67004 67113 67114 67407E 67408E 67836 67841E 67842E 67867D 67868D 67871 67872 68103 68104 68123B 68124B 68142C 68152C 68188 68189 68617A 68618A 68618D 68630 9011906400 9015150016 9015960453 9017906070 9033330009 9054109006 9162660616
Part # Description Qty Price
67003 - PANEL SUB-ASSY, REAR DOOR, RH
67003-20730

AT210,ST210

 1
67004 - PANEL SUB-ASSY, REAR DOOR, LH
67004-20730

AT210,ST210

 1
67113 - PANEL, REAR DOOR, OUTER RH
67113-20270

AT210,ST210

 1
67114 - PANEL, REAR DOOR, OUTER LH
67114-20260

AT210,ST210

 1
67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67407-20260

AT210,ST210

 1
67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
67408-20250

AT210,ST210

 1
67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH
67836-20120

AT210,ST210

 2
67841E - COVER, REAR DOOR SERVICE HOLE, RH
67841-20350

AT210,ST210

 1
67842E - COVER, REAR DOOR SERVICE HOLE, LH
67842-20240

AT210,ST210

 1
67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH
67867-12150

AT210,ST210

 18
67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH
67867-12150

AT210,ST210

 24
67867-12150

AT210,ST210

 18
67871 - WEATHERSTRIP, REAR DOOR, RH
67871-20330

AT210,ST210

 1
67872 - WEATHERSTRIP, REAR DOOR, LH
67872-20330

AT210,ST210

 1
68103 - GLASS SUB-ASSY, REAR DOOR, RH
68113-20840

AT210,ST210

*UVCTT,T=3.5,GREEN

 1
68104 - GLASS SUB-ASSY, REAR DOOR, LH
68114-20760

AT210,ST210

*UVCTT,T=3.5,GREEN

 1
68123B - GLASS, REAR DOOR QUARTER WINDOW, RH
68123-20630

AT210,ST210

*TEM,T=3.5,GREEN

 1
68124B - GLASS, REAR DOOR QUARTER WINDOW, LH
68124-20550

AT210,ST210

*TEM,T=3.5,GREEN

 1
68142C - RUN, REAR DOOR GLASS, RH
68142-20190

AT210,ST210

 1
68152C - RUN, REAR DOOR GLASS, LH
68152-20130

AT210,ST210

 1
68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68188-20180

AT210,ST210

 1
68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
68189-20180

AT210,ST210

 1
68617A - PIN, REAR DOOR CHECK
68617-20040

AT210,ST210

 2
68617-20050

AT210,ST210

 2
68618A - BRACKET, REAR DOOR CHECK ARM, LH
68618-20030

AT210,ST210

 1
68618-26010

AT210,ST210

 1
68618D - BRACKET, REAR DOOR CHECK ARM, RH
68618-26010

AT210,ST210

 1
68618-20030

AT210,ST210

 1
68630 - CHECK ASSY, REAR DOOR
68630-20140

AT210,ST210

 2
Common parts
90119-06400
90151-50016
90159-60453
90179-06070
90333-30009
90541-09006
91626-60616
